118

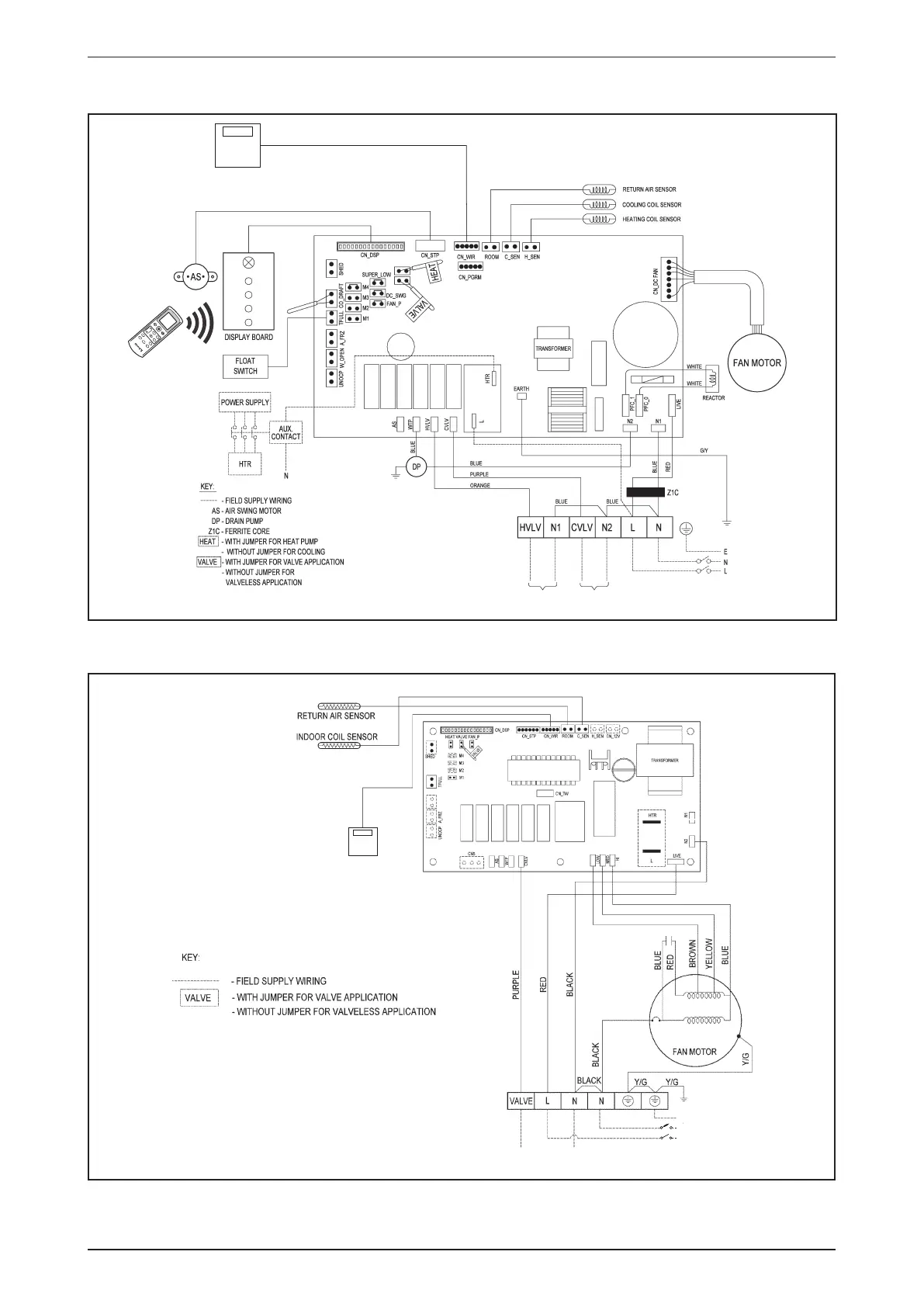

Wiring Diagrams
Model: FWKE11EH
TURBO
QUIET SLEEP
MODE
TIMER
CANCEL
ON OFF
SWIN
G FAN
CANCEL
CLOCK
POWER SUPPLY
220-240V/1Ph/50Hz
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALVE
(HEATING)
TO 2/3 WAY VALVE
(COOLING)
Model: FWC03/04/06/07C (With Controller)
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALV E
L
N
E
POWER SUPPLY
220-240V/1Ph/50Hz
