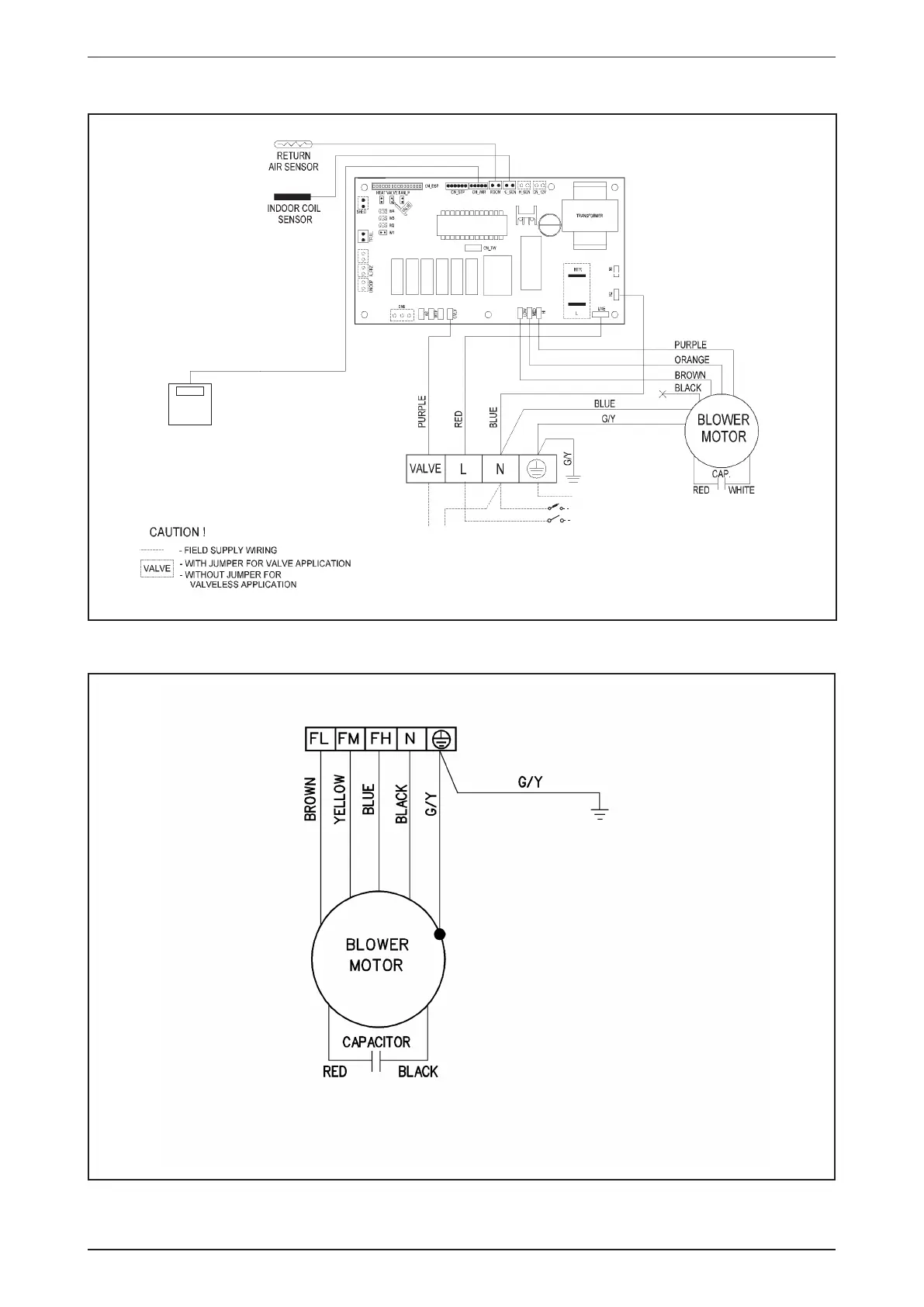

Wiring Diagrams
Model: FWC09/12/14/16C (With Controller)
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALVE
L
N
E
POWER SUPPLY
220-240V/1Ph/50Hz
Model: FWC03/04/06/07C (Without Controller)
