» FWP-C 10-11-15-17

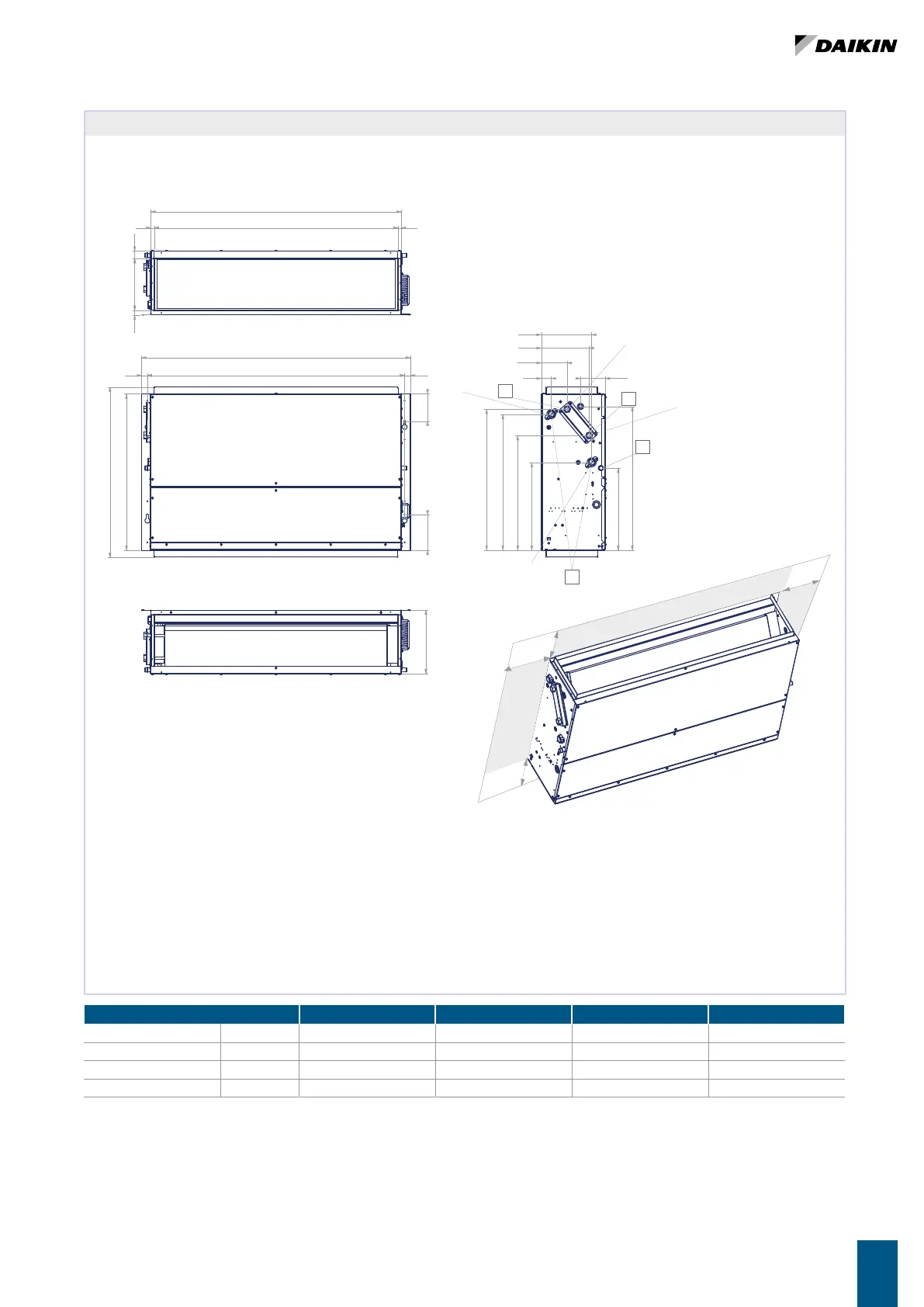

LEGEND
1 Standard heat exchanger water connections 3/4” female
2 Water connections additional heat exchanger 1/2" female
3 Condensate discharge diameter ø 17
300
300
140
100
3
2
2
1
21 227 33
15 D 15
C
685
745
120
26
155
26 E
A
385
503
596
618
43
113
220
210
360
630
108
280
IN
IN
OUT
OUT
FWP-C 10 11 15 17
A mm 1178 1178 1178 1178
C mm 1097 1097 1097 1097
D mm 1068 1068 1068 1068
E mm 1127 1127 1127 1127
