Daikin R-410A Technical Data

• Split Sky Air • Outdoor Units
23
• Outdoor Units • R-410A • RXS-G2V1B
4 Capacity tables
4 - 1 Cooling/Heating capacity tables
3
4

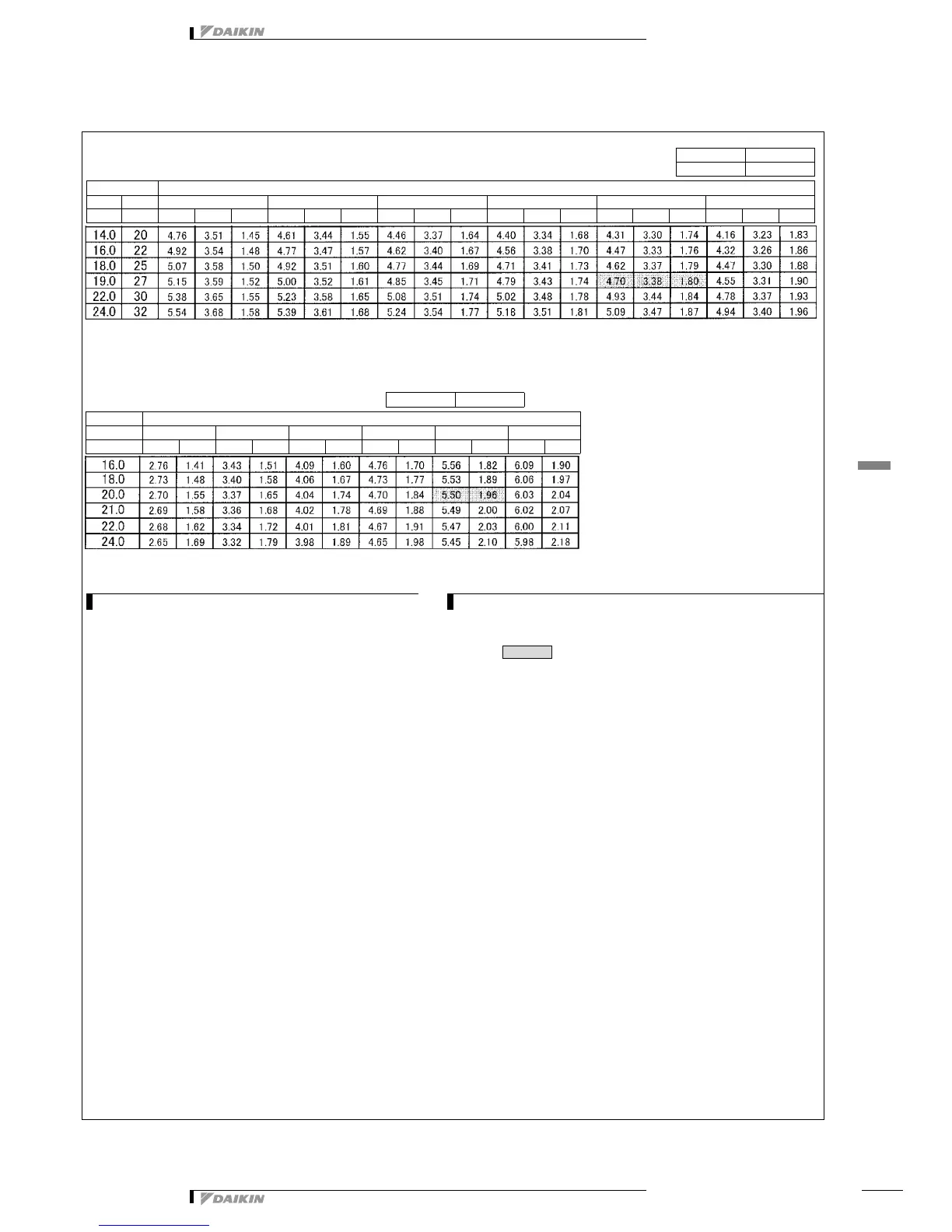

FFQ50B8V1B+RXS50G2V1B
Cooling 50Hz 230V
AFR 12.0
BF 0.16
Indoor Outdoor temperature (°CDB)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
Heating 50Hz 230V
AFR 12.0
Indoor Outdoor temperature (°CWB)
EDB -15 -10 -5 0 6 10
(°C) TCPITCPITCPITCPITCPITCPI
3D041023
SYMBOLS
AFR: Air flow rate (m
3
/min)
BF: Bypass factor
EWB: Entering wet bulb temp. (°C)
EDB: Entering dry bulb temp. (°C)
TC: Total capacity (kW)
SHC: Sensible heating capacity (kW)
PI: Power input (kW)
NOTES
1 Ratings shown are net capacities which include a deduction for
indoor fan motor heat
2 shows nominal (rated) capacities and power input.
3 TC, PI and SHC must be calculated by interpolation using the figures
in the above tables. (Figures out of the tables should not be used for
calculation.)
4 SHC is based on each EWB and EDB
SHC* = SHC correction for other dry bulb
=0.02*AFR(m3/min.)*(1-BF)*(DB*-EDB)
Add SHC* to SHC.
5 Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.
