Daikin R-410A Technical Data

• Split Sky Air • Outdoor Units
29
• Outdoor Units • R-410A • RXS-G2V1B

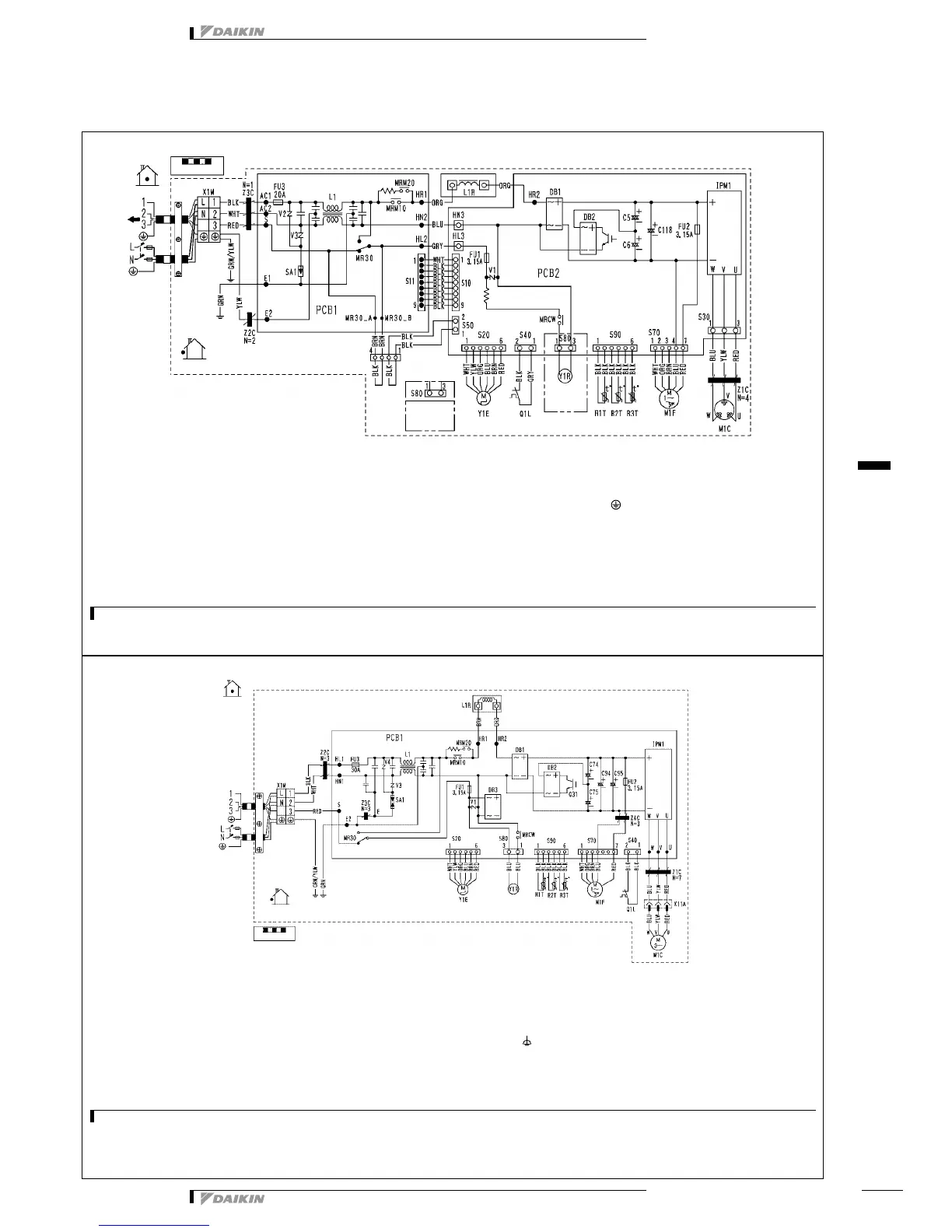

7 Wiring diagram
7 - 1 Wiring diagram
3
7
RXS20-35G
3D058684A
NOTE
1 Refer to the nameplate for the power requirements.
C5, C6, C118 : Capacitor PCB1, PCB2 : Printed Circuit Board V1, V2, V3 : Varistor
DB1, DB2 : Diode Bridge PTC1 : Thermistor PTC X1M : Terminal strip
FU1, FU2, FU3 : Fuse S10, S11, S20, S30, Y1E : Electronic Expansion Valve Coil
IPM1 : Intelligent Power Module S40, S50, S70, S80, Y1R : Reversing Solenoide Valve Coil
L
: Live S90, HL3, HN3 : Connector Z1C, Z2C, Z3C : Ferrite Core
L1 : Coil R1T, R2T, R3T : Thermistor : Protective Earth
L1R : Reactor SA1 : Surge Arrester
M1R : Compressor motor
M1C : Fan Motor
M1F : Magnetic Relay
MRCW, MR30, MRM10, MRM20 : Neutral
Q1L : Overload protector
Outdoor
(Outdoor) (Discharge)
(Condenser)
Field wiring
Indoor
In case of
cooling only
type
WIRING DIAGRAM
In case of
heat pump
type
RXS42G
3D059601
NOTES
1 Refer to purchasing specification AS303002, unless otherwise specified.
2 This drawing was drawn on cad system.
3 the electric wiring diagram label is 3P210678-1
C74, C75, C94 M1F : Fan motor V1, V3, V4 Varistor BLK : Black
C95 : Capacitor MRCW, MRM10, X1M Therminal Strip BLU : Blue
DB1, DB2, DB3 : Diode Bridge MRM20, MR30 : Magnetic Relay Y1E Electronic Expansion Valve Coil BRN : Brown
FU1, FU2, FU3 : Fuse N : Neutral Y1R Reversing Solenoide Valve Coil GRN : Green
IPM1
: Intelligent Power Module PCB1 : Printed Circuit Board Z1C, Z2C, Z3C, ORG : Orange
L : Live Q1L : Overload Protector Z4C : Ferrite Core RED : Green
L1 : Coil R1T
~ R3T : Thermistor : Protection Earth WHT : White
L1R : Reactor SA1 : Surge arrester S20, S40, S70 YLW : Yellow
M1C : Compressor motor Q31 : IGBT S80, S90
X11A : Connector
Outdoor
(Outdoor) (Discharge)
(Condenser)
Field wiring
Indoor
Power Supply
WIRING DIAGRAM
