Split Sky Air • Outdoor Units
25
Outdoor Units • R-410A • RXS-G2V1B

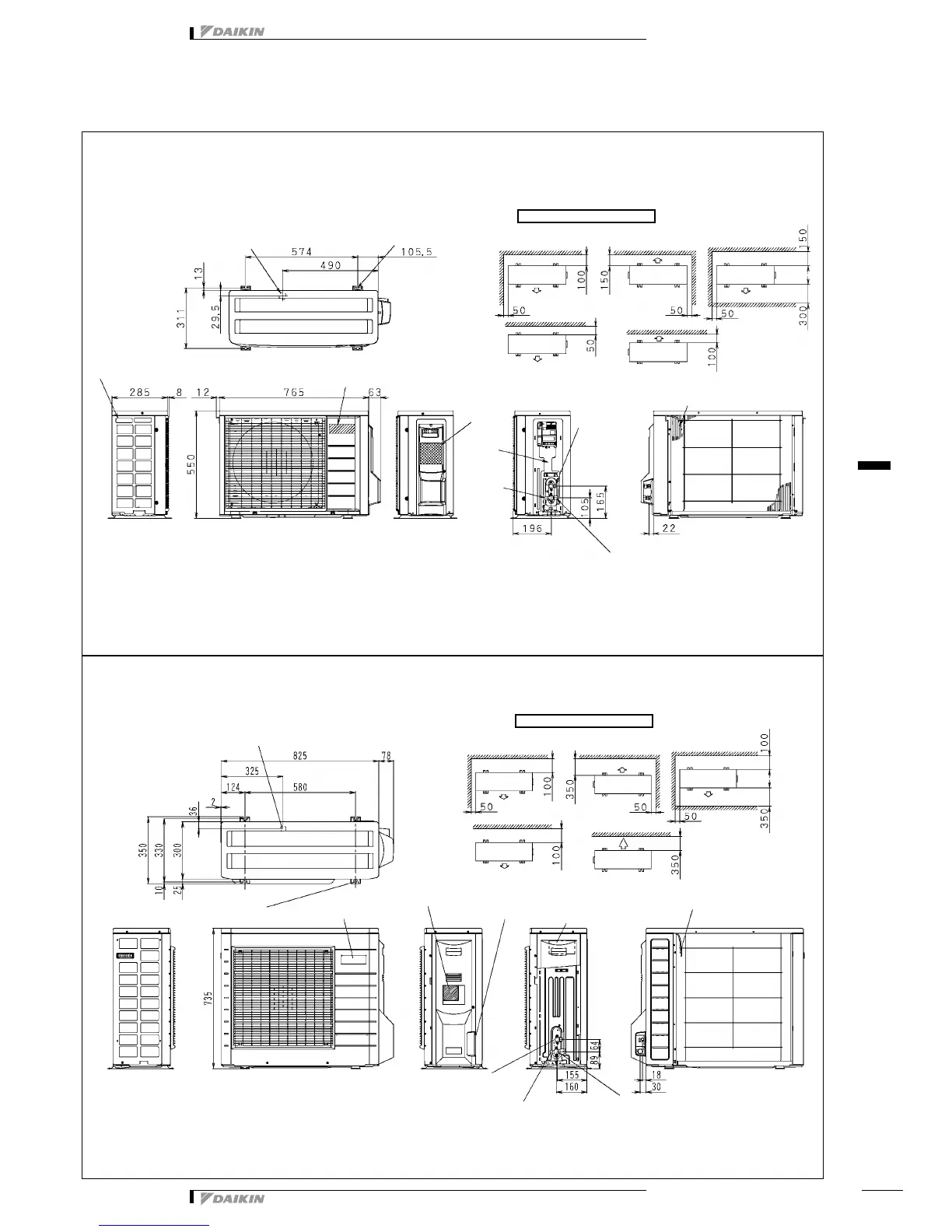

5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
3
5
RXS20-42G
3D055546A
4-Holes for anchor
bolts (M8 or M10)
Drain Oulet
(I.D. Ø 15.9 Hose For Connection)
Brand Name Label
Handle
Manufacture’s
label
Wiring Inlet
Service port
Liquid Stop Valve
( Ø 6.4 CuT)
In Case Of Removing
Stop Valve Cover Gas Stop Valve
( Ø 9.5 CuT)
Outdoor Air Thermistor
Wall Height On Air Outlet Side = Less Than 1200
MINIMUM SPACE FOR AIR PASSAGE
RXS50G
4-Holes for anchor bolts (M8 or M10)
Drain Oulet (I.D. Ø 15.9 Hose For Connection)
Brand Name Label
Name Plate
Wiring Inlet
Service port
Terminal Strip With
Earth Terminal
In Case Of Removing
Stop Valve Cover
Gas Stop Valve
( Ø 12.7 CuT)
Outdoor Air Thermistor
Thermistor
Wall Height On Air Outlet Side = Less Than 1200
MINIMUM SPACE FOR AIR PASSAGE
Liquid Stop Valve
( Ø 6.4 CuT)
3D051657L
