Daikin R410A Split Series Installation Manual

13 ■English
Indoor Unit Installation

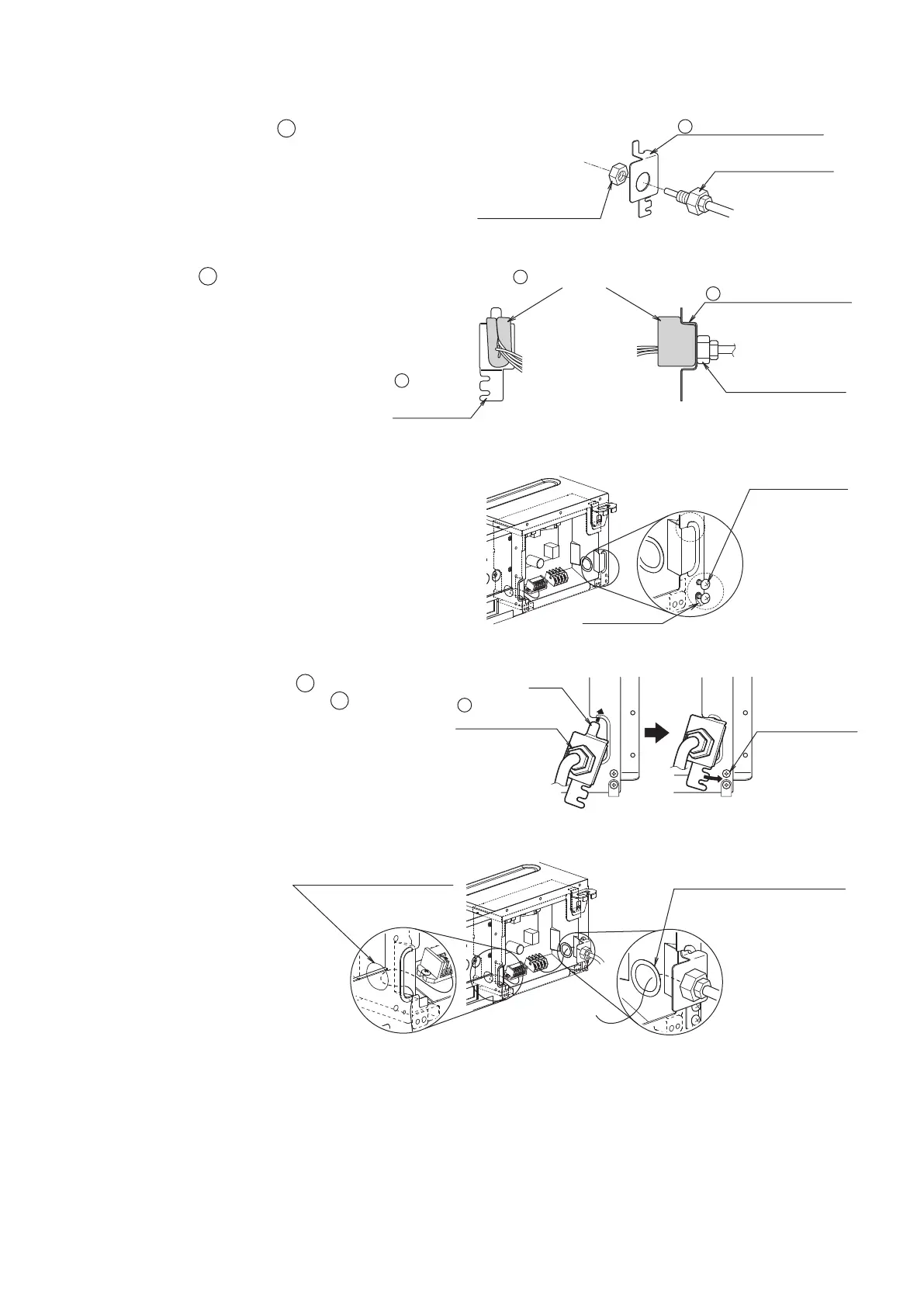

2) Attach the conduit to the
M
conduit mounting
plate.
Conduit mounting plate
Conduit (field supply)
Lock nut (field supply)
M
• Attach the
K
wire sealing pad (small)
to the conduit, the wiring between
the indoor and outdoor units, and the
ground wiring.
Conduit mounting plate
Conduit
mounting
plate
Conduit (filed supply)
Wire sealing pad (small)
Wiring between the
indoor and outdoor
units, ground wiring
(Viewed from the side)
K
M
M
• Loosen the screws (2 points) in part A.
Screws (2 points)
B
A
Wiring fixture
• Insert the hook part of the
M
conduit mounting
plate into part B and secure the
M
conduit
mounting plate with the screws loosened
(2 points).
NOTE
Remove the wiring xture if you have difculty
performing this step.
Screws (2 points)
Conduit
mounting plate
Hook
M
3) Connect the wiring into
the electrical wiring
box through the wiring
intake beside the
electrical wiring box.
Wiring intake (low voltage)
Wiring intake (high voltage)
Wiring between the indoor and
outdoor units Ground wiring
Remote controller wiring
01_EN_3P674701-1B.indd 13 2022/06/02 10:06:27

Daikin R410A Split Series Specifications

General

Refrigerant	R410A
Cooling Capacity	Varies by model
Heating Capacity	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Indoor Unit Noise Level	Varies by model
Outdoor Unit Noise Level	Varies by model
Indoor Unit Dimensions (HxWxD)	Varies by model
Outdoor Unit Dimensions (HxWxD)	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
