Si011404EC Compressor ASSY
Removal Procedure 11
2
3

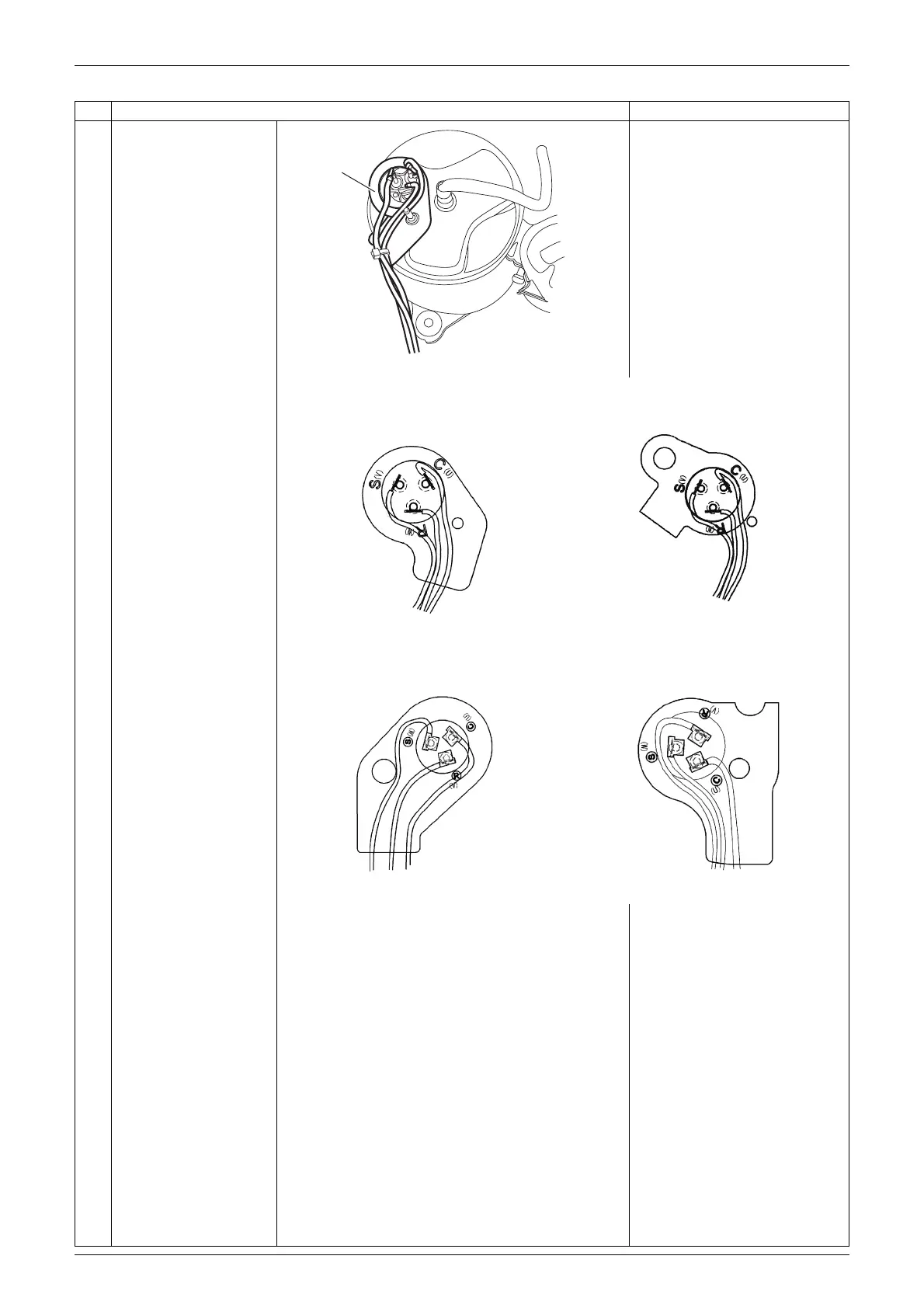

Disconnect the
compressor lead wires.
Remove the gasket.
Step Procedure Points
Gasket
(R20126)
Pattern 1:
Pattern 2:
C (U): white, S (V): red, R (W): blue C (U): white, S (V): red, R (W): blue
Pattern 3:
Pattern 4:
C (U): white, S (W): red, R (V): blue C (U): white, S (W): red, R (V): blue
(R20298)
(R20989)
(R22652)
(R22653)
