Daikin RC35PRV16 - Page 14

Compressor ASSY Si011404EC
12 Removal Procedure
4
5
6
7
8
Remove the putty.
Heat up the brazed part
of the discharge side
pipe and disconnect.
Heat up the brazed part
of the suction side pipe
and disconnect.
Remove the 3 nuts of
the compressor.
Lift the compressor
ASSY up and remove it.

Some models do not have
the putty.

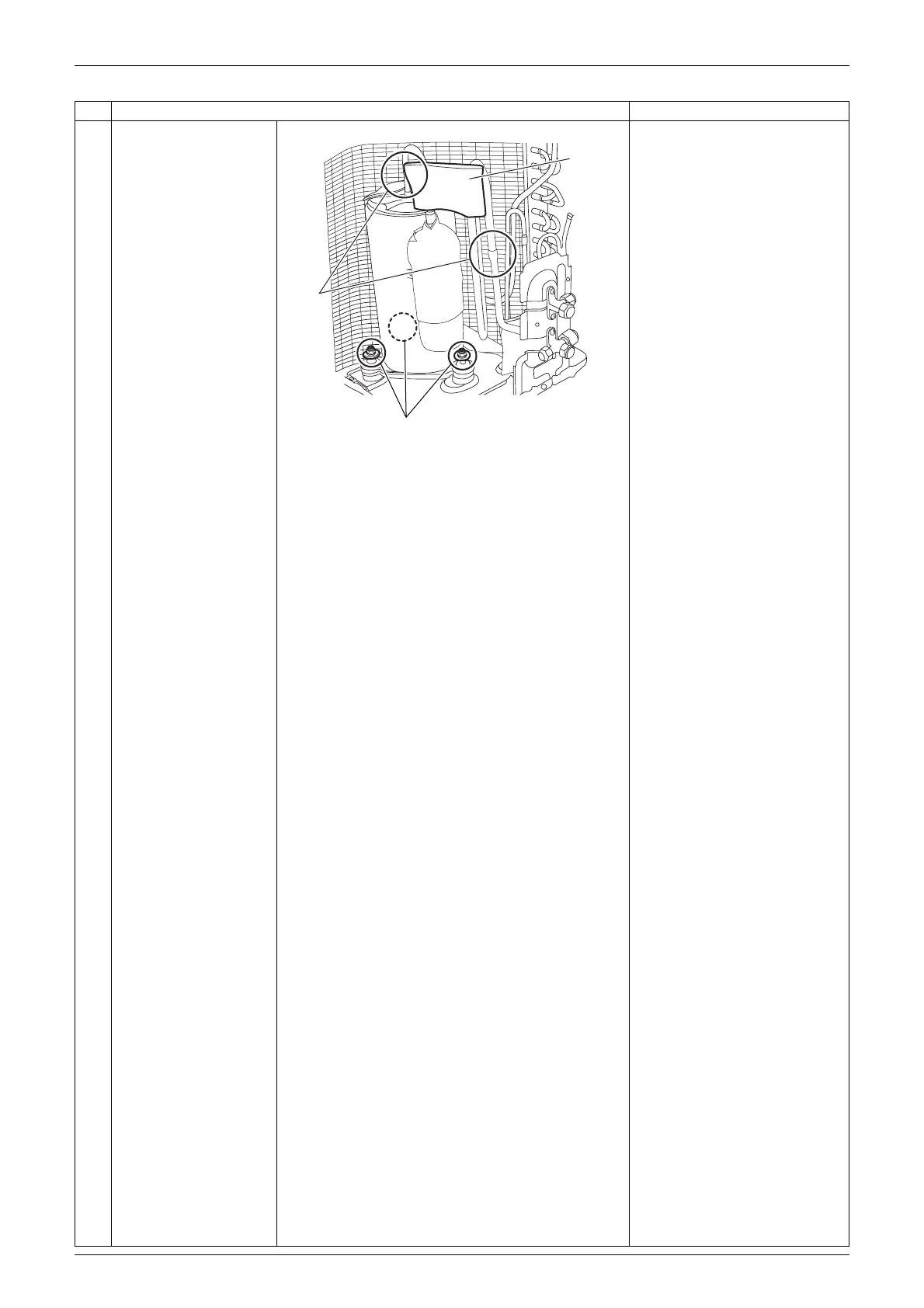

Step Procedure Points
(R22651)
Brazed
part
Putty
Nut
