Outer Panels / Fan Motor / Electrical Components Si011404EC
2 Removal Procedure
1. Outer Panels / Fan Motor / Electrical Components
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

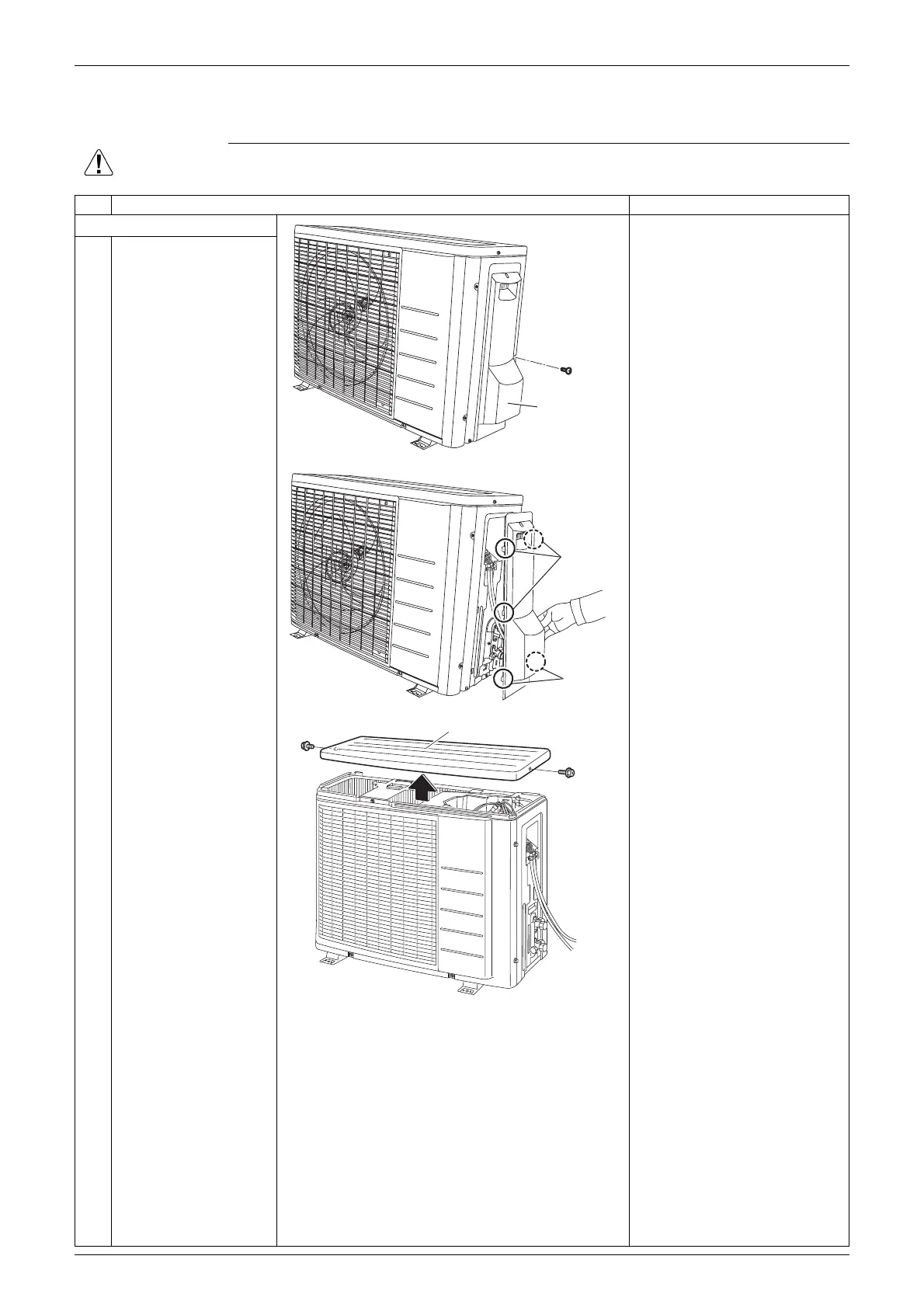

1. Remove the outer panels.
1 Remove the screw, and
then the stop valve
cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 5 hooks.
2 Remove the 2 screws,
and then the top panel.
(R20986)
Stop valve
cover
(R20987)
Hook
Hook
Top panel
(R16334)
