Si011404EC Outer Panels / Fan Motor / Electrical Components
Removal Procedure 3

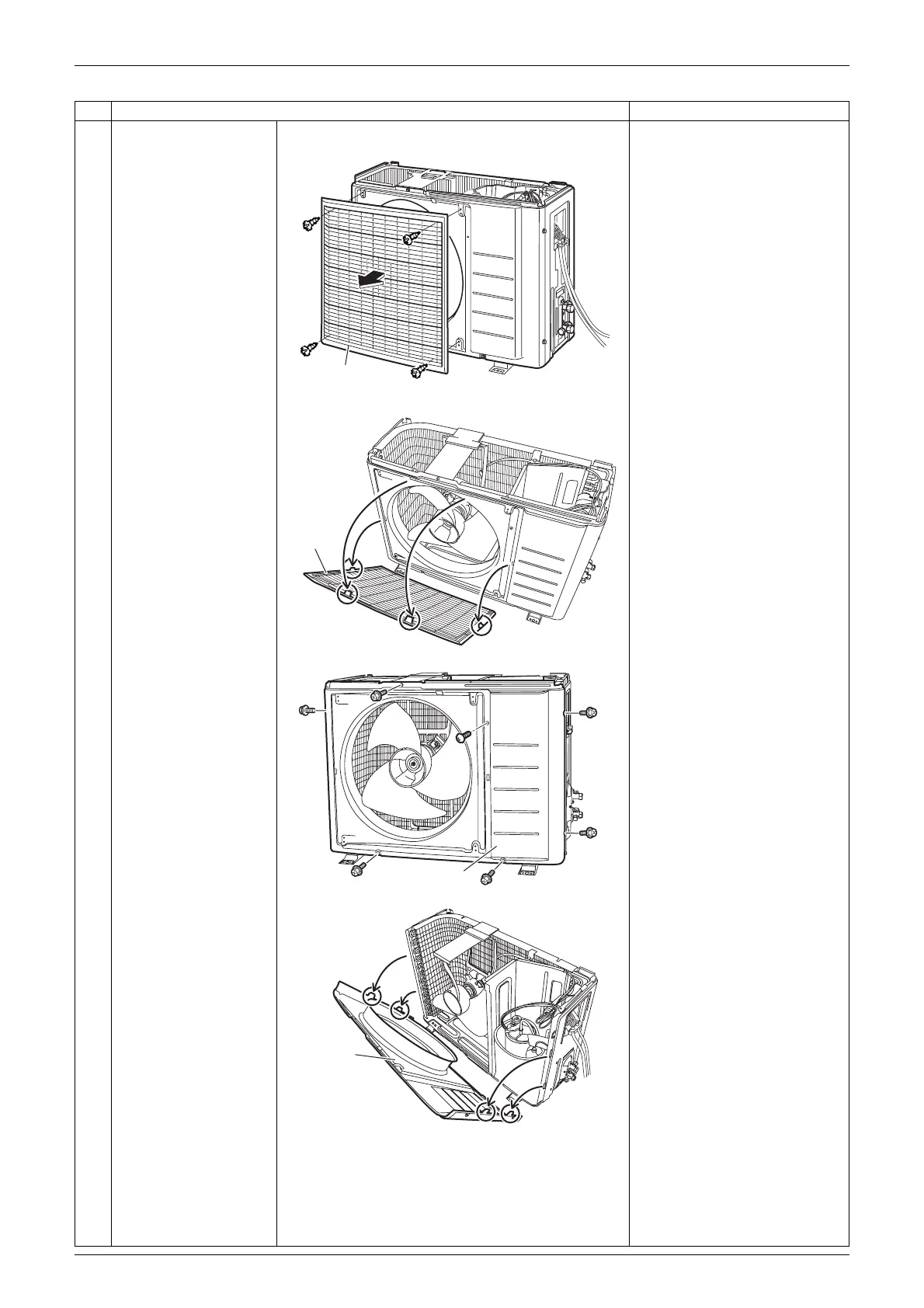

3 Remove the 4 screws,
and then the discharge
grille.
The discharge grille has 4
hooks.
4 Remove the 7 screws
of the front panel.
5 Unfasten the 4 hooks
and remove the front
panel.
The front panel has 4 hooks.
Step Procedure Points
(R16335)
Discharge
grille
Discharge
grille
(R20106)
Front panel
(R20107)
Front panel
(R20108)
