Outer Panels / Fan Motor / Electrical Components Si011404EC

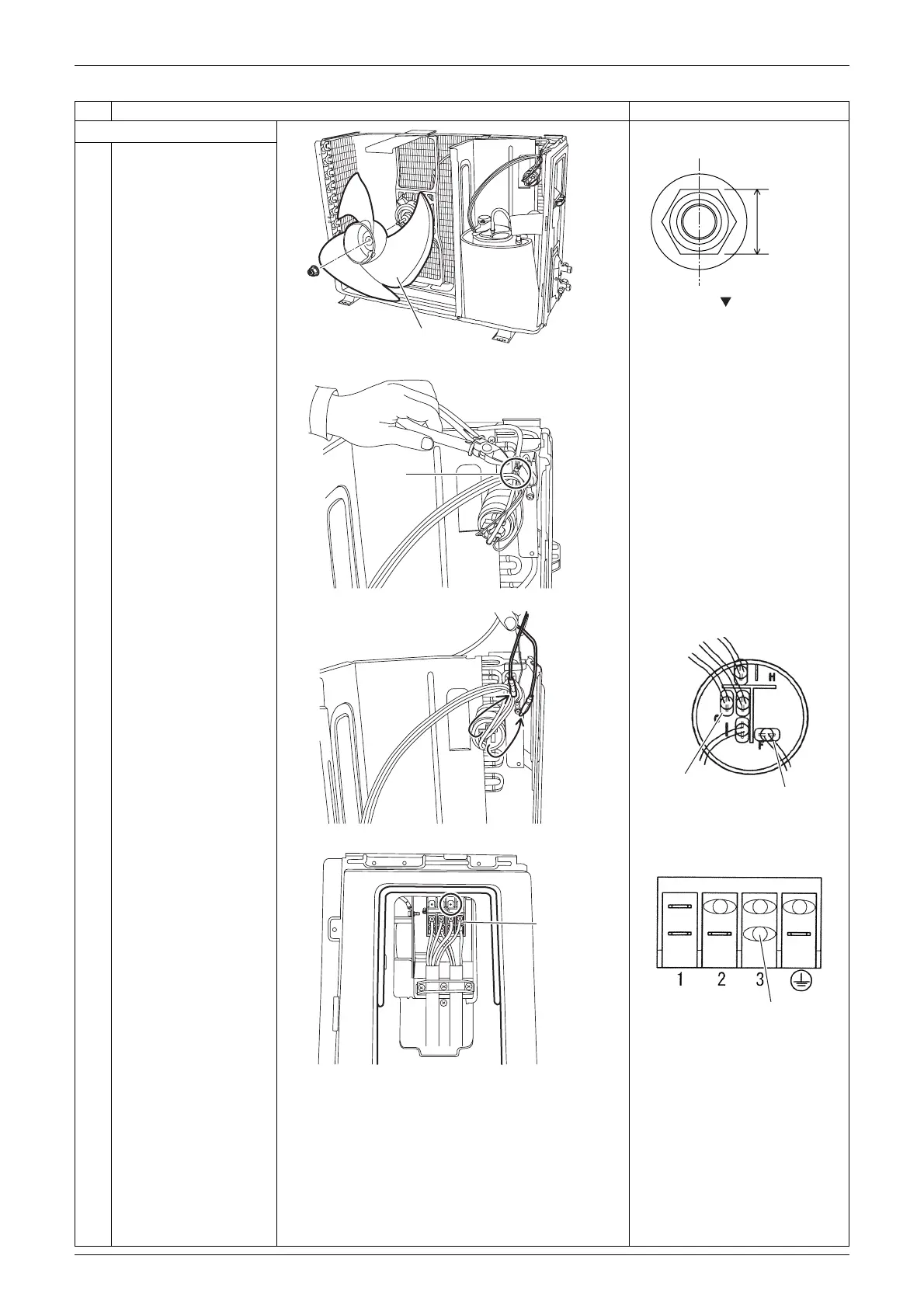

4 Removal Procedure
2. Remove the fan motor.

Nut size: M6

Align the mark of the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
1 Remove the nut, and
then the outdoor fan.
2 Cut the clamp and
release the fan motor
lead wire.
3 Pull out the 2 terminals
(red, white) from the
capacitor (C1).

Capacitor (C1)
4 Pull out the terminal 3
(front, black) from the
terminal board (X1M).

Terminal board (X1M)
Step Procedure Points
Outdoor fan
(R20109)
10 mm
(0.39 inch)
(R18954)
Clamp
(R20110)
(R20111)
from fan motor:
red
from fan motor:
white
(R23473)
(R20112)
Terminal
board
from fan motor:
black
(R23474)
