Si011404EC Outer Panels / Fan Motor / Electrical Components

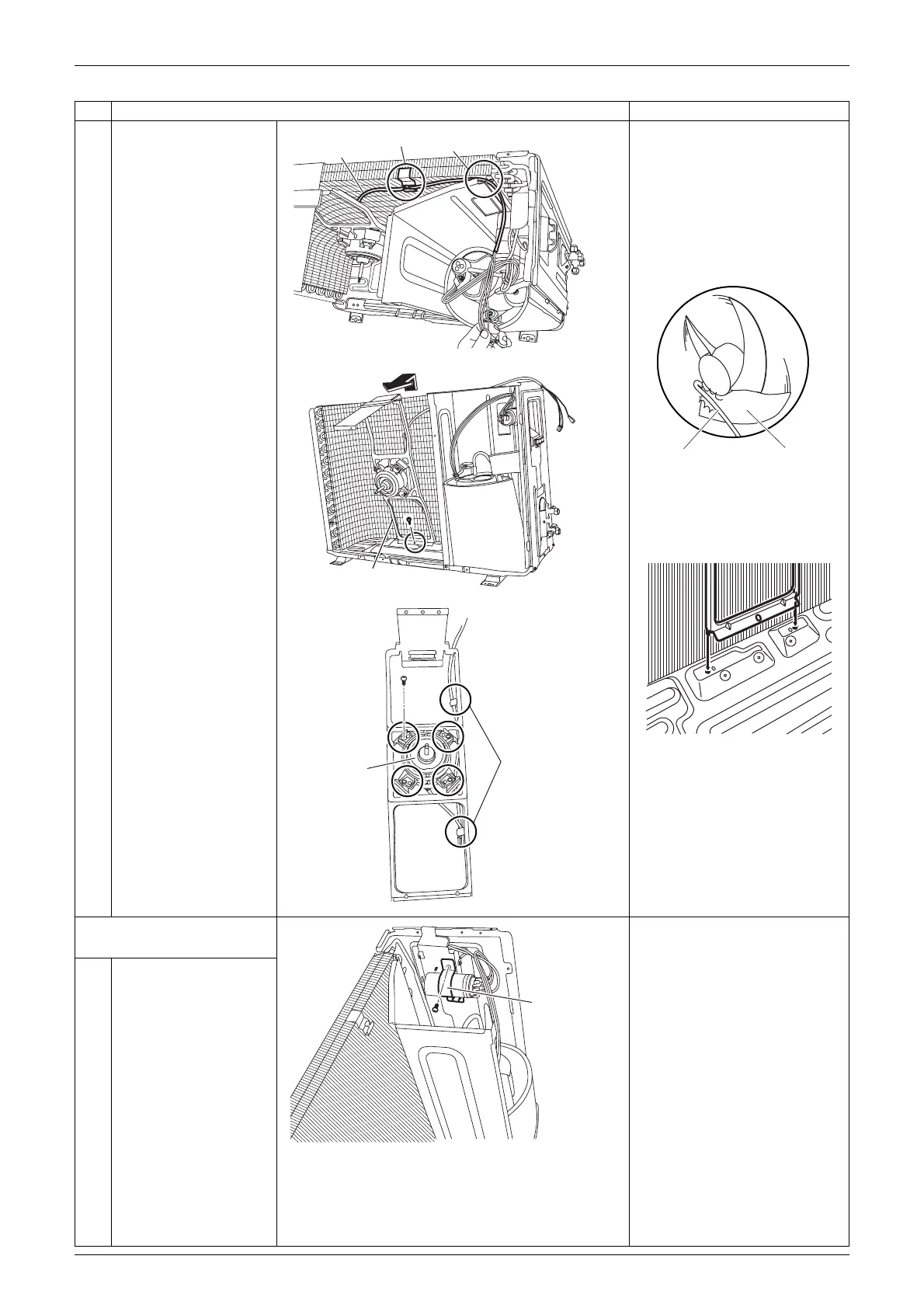

Removal Procedure 5
5 Release the fan motor
lead wire from the
groove and the hook.

Some models do not have a
hook.

When reassembling, put the
fan motor lead wire through
the back of the fan motor to
avoid any entanglement with
the outdoor fan.

When reassembling, fit the 2
lower hooks into the bottom
frame.
6 Remove the screw, and
then the fan motor
fixing frame.
7
8
Release the fan motor
lead wire from the 2
hooks.
Remove the 4 screws,
and then the fan motor.
3. Remove the electrical
components.
1 Remove the screw of
the capacitor fixing
band.
Step Procedure Points
Hook
Groove
Fan motor
lead wire
(R22648)
(R3249)
Lead wire Outdoor fan
(R19277)
Fan motor fixing frame
(R20114)
Hook
(R20115)
Fan
motor
Capacitor
fixing band
(R20116)
