Outer Panels / Fan Motor / Electrical Components Si011404EC

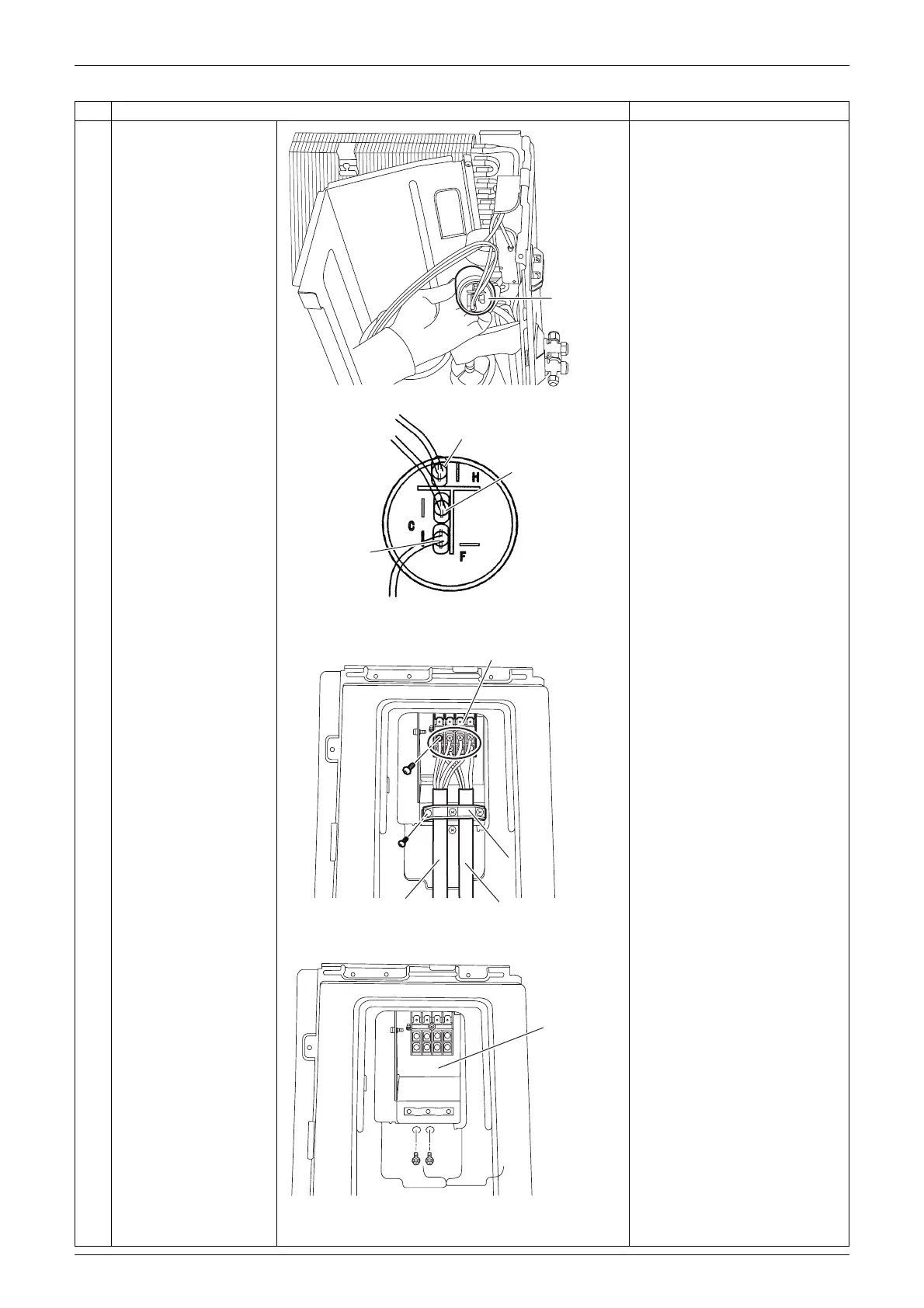

6 Removal Procedure
2 Pull out the 3 terminals
and remove the
capacitor.
3
4
Remove the 3 screws,
and then the wire
fixture.
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
5 Remove the 2 screws,
and then the electrical
component mounting
plate.
Step Procedure Points
Capacitor
(R20117)
from compressor
(S): red
from compressor
(R): blue
from terminal
(2): blue
Capacitor (C1)
(R23475)
Wire fixture Wire fixture
Power supply wire
Connecting wire
Terminal board
(R22649)
Electrical
component
mounting
plate
(R20119)
