Si011404EC Outer Panels / Fan Motor / Electrical Components
Removal Procedure 7
6 Remove the screw, and
then the terminal board.
4. Remove the right side
panel.
1 Remove the 5 screws
and remove the right
side panel.

There are 2 hooks on the
right side panel.
When reassembling, make
sure to fit the 2 hooks.

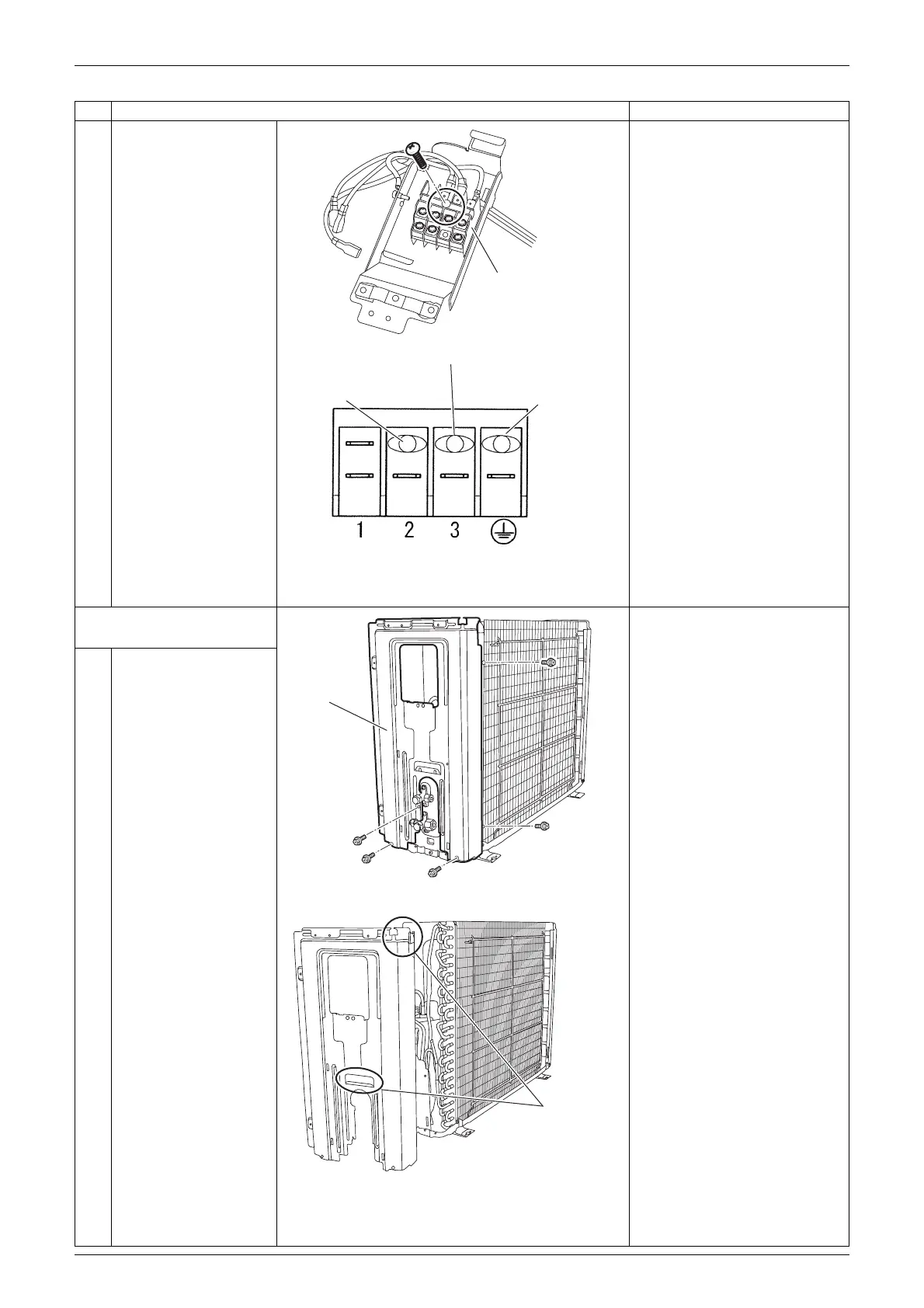

Step Procedure Points
(R20131)
Terminal board
from capacitor (C1):
blue
from compressor (C):
white
earth/ground wire:
green/yellow
(R23476)
Terminal board (X1M)
Right side
panel
(R22650)
Hook
(R20121)
