Full Condenser Floor Sealing for
Electrical Penetrations
NOTICE
All penetrations made through full condenser oor models must be sealed
to prevent leaks. Failure to do so could result in property damage.
Notes before following this procedure:
• Read through these instructions completely before
starting work on the unit.
• These instructions assume the unit has been properly
placed and there is adequate room to work below the unit
for building conduit connections.
• These instructions assume component selections are
appropriately sized. The installer must determine the
correct hole sizes based on component selections.
• These instructions apply to Rebel Applied Full Floor
Condenser type units.
• Each penetration will require a:
— conduit hub
— pipe nipple
— lock nut
— conduit ange plate
— conduit coupler
1. Access, Measure, and Drill
• Open the door to the main control panel section and
locate the main panel plate. Remove the fasteners
holding the main panel plate in position to access the
condenser oor (DPSA unit shown).

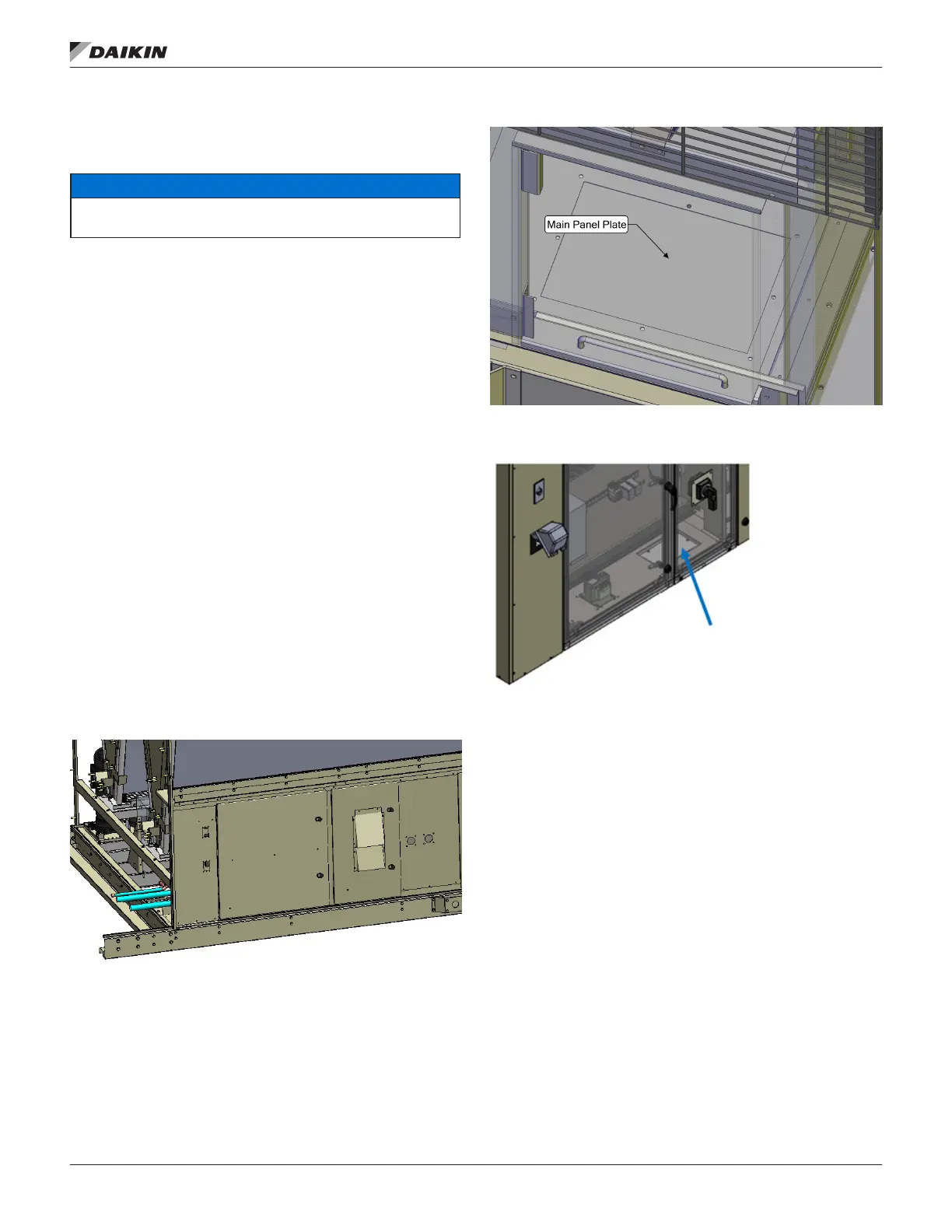

Figure 45: Main Control Panel Section
Figure 46: Main Panel Plate Location
Figure 47: DAHA Unit Panel Plate Example
• Identify the correct placement for drilling holes in the main
panel plate and the condenser oor.
• Drill concentric holes in the main panel plate and the
condenser oor based on the selected conduit hub and
pipe nipple.
2. Measure
• Place the main panel plate back into position.
• Measure the distance from the bottom of the plate to the
top of the condenser oor (retain this measurement for
building the assembly).
• Remove the main panel plate.
