Post and Rail Mounting
WARNING
The unit must be level side to side and over the entire length. Equipment
damage can result if the unit is not level.
WARNING
Lifting points may not be symmetrical to the center of gravity of the unit.
Ballast or unequal cable lengths maybe required.
CAUTION
Use all lifting points. Improper lifting can cause injury, death, and property
damage.
When mounting by post and rail, run the structural support the
full length of the unit. Locate the structural member at the base
of the unit as shown in Figure 50, assuring the structural steel
is well supported by the structural member.
If resilient material is placed between the unit and the rail,
insert a heavy steel plate between the unit and the resilient
material to distribute the load. Seal cabinet penetrations
(electrical, piping, etc.) properly to protect against moisture and
weather.

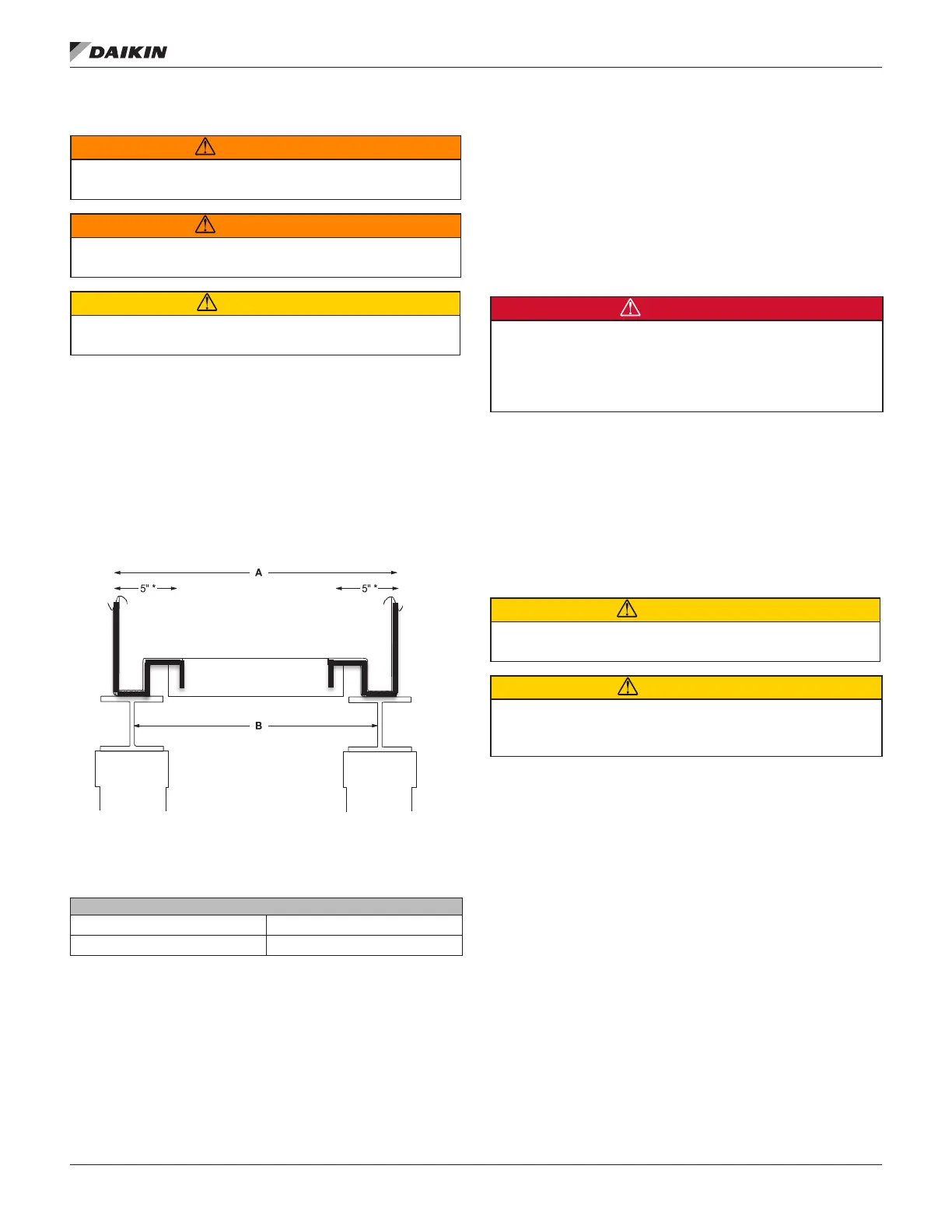

Figure 50: Post and Rail Mounting
Table 2: Post and Rail Mounting Dimensions
B-Cabinet
A 96.5"
B 94.5"
Lifting Guidance
Daikin Applied equipment is designed to withstand the loads of
the lifting and rigging process resulting from ASME Standard
P30.1 - Planning for Load Handling Activities or equivalent.
Lifting guidance is intended for installations of newly delivered
equipment. If moving previously installed equipment for re-
location or disposal, consideration should be given to unit
condition. Equipment should also be drained as unit weight
and center of gravity values do not reect the addition of water
for lifting.
DANGER
Improper rigging, lifting, or moving of a unit can result in unit damage,
property damage, severe personal injury or death. See the as-designed,
certied dimensioned drawings included in the job submittal for the weights
and center of gravity of the unit. If the drawings are not available, consult the
local Daikin Applied sales ofce for assistance.
Installation is to be performed only by qualied personnel who
are familliar with local codes and regulations, and experienced
with this type of equipment. Lifting equipment and mechanisms
must be determined by the Lifting Director per the current
version of ASME Standard P30.1 or equivalent and must be
suited for the load capacity. Daikin Applied is not a licensed
nor certied rigging specialist. Therefore it is the customer’s
responsibility to consult a certiifed rigging contractor to rig,
lift, and move components and subcomponents properly and
safely as needed.
CAUTION
Forklifts may not be used to lift or move Rebel Applied units as the method
may result in unit damage.
CAUTION
When around sharp edges, wear appropriate Personal Protective Equipment
(PPE), such as gloves, protective clothing, foot wear, eye protection, etc. to
prevent personal injury.
* Beam can extend beneath unit no more than 5" to allow adequate space for
duct connections and electrical entry.
