Lifting Brackets
Lifting bracket designs vary from product to product. Rules of
engagement with the lifting brackets are the same regardless
of the bracket type. For Rebel Applied units, a typical lifting
bracket with 2ʺ (51 mm) diameter holes found on the sides of
the unit base are illustrated in Figure 51. See the as-designed
certied drawings for specic lifting points on this product
model.
Engagement with each bracket is to be as close to vertical as
possible. The maximum allowable lift angle from the vertical
is 30 degrees as shown in Figure 52. If the lift angle shifts
beyond 30° from vertical on any of the lift points, the lift shall
not proceed until a plan and rigging can be secured that will
correct the angle of lift.
WARNING
The lifting angle must not go beyond 30 degrees from vertical or the unit
can become unstable which may result in unit damage, property damage,
severe personal injury, or death.

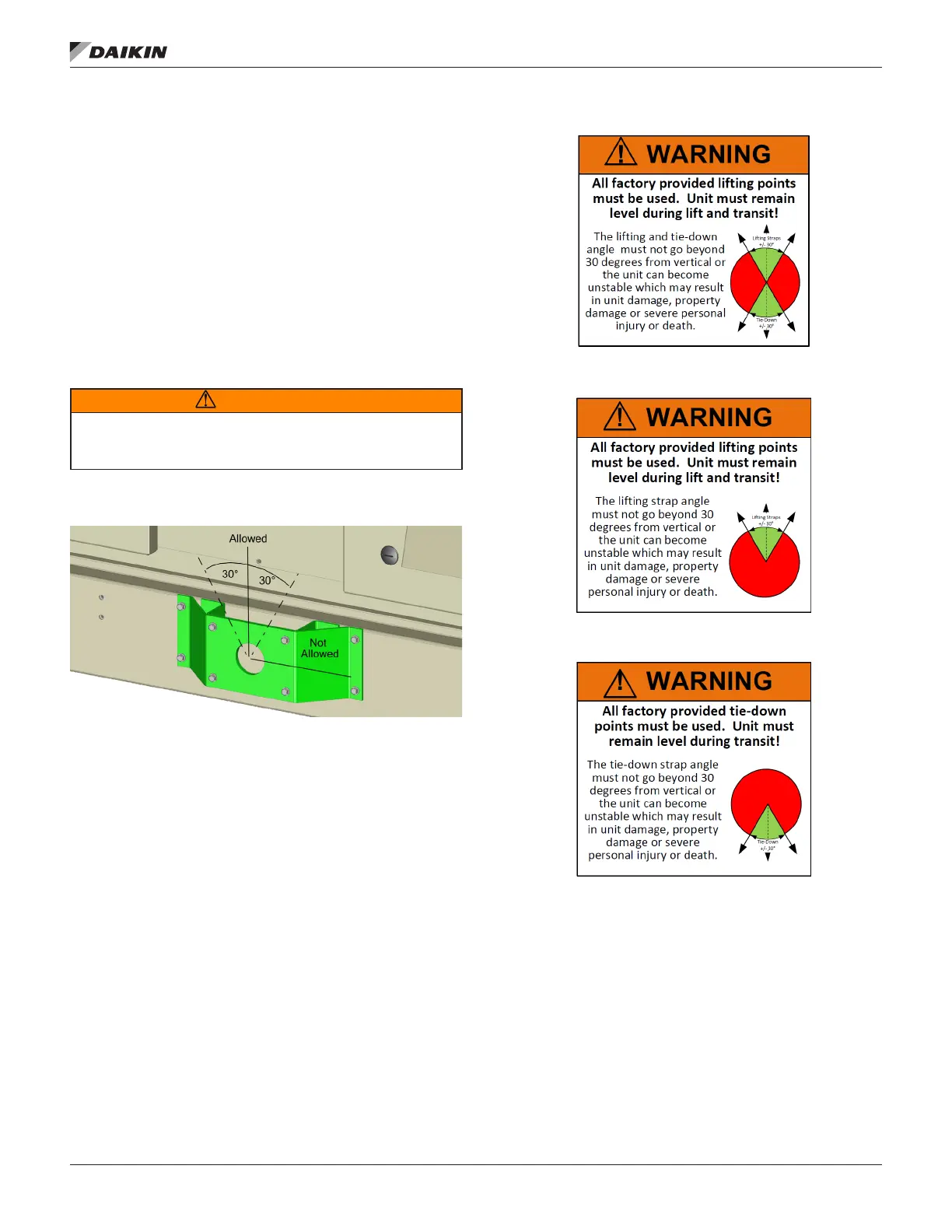

Figure 51: Illustration of Lifting Bracket and Allowed Angle
for Lifting
Figure 52: Example Illustrations of Allowed Angle Label
