Shipping Splits
Reassembly of Shipping Splits
DPSA units are typically shipped complete, however, an
optional conguration is available that allows for the unit to be
split into 2 or 3 sections for easier shipping and handling. If
this conguration is ordered, assembly of the split modules is
required on site. Please read and follow this instruction manual
to ensure proper assembly and installation. A separate parts kit
(Figure 54) will be shipped for each split in the cabinet. The kit
contains the necessary components to reassembly the cabinet
modules. The kit contents may dier from Figure 54 depending
on the exact unit conguration and split location in the cabinet.

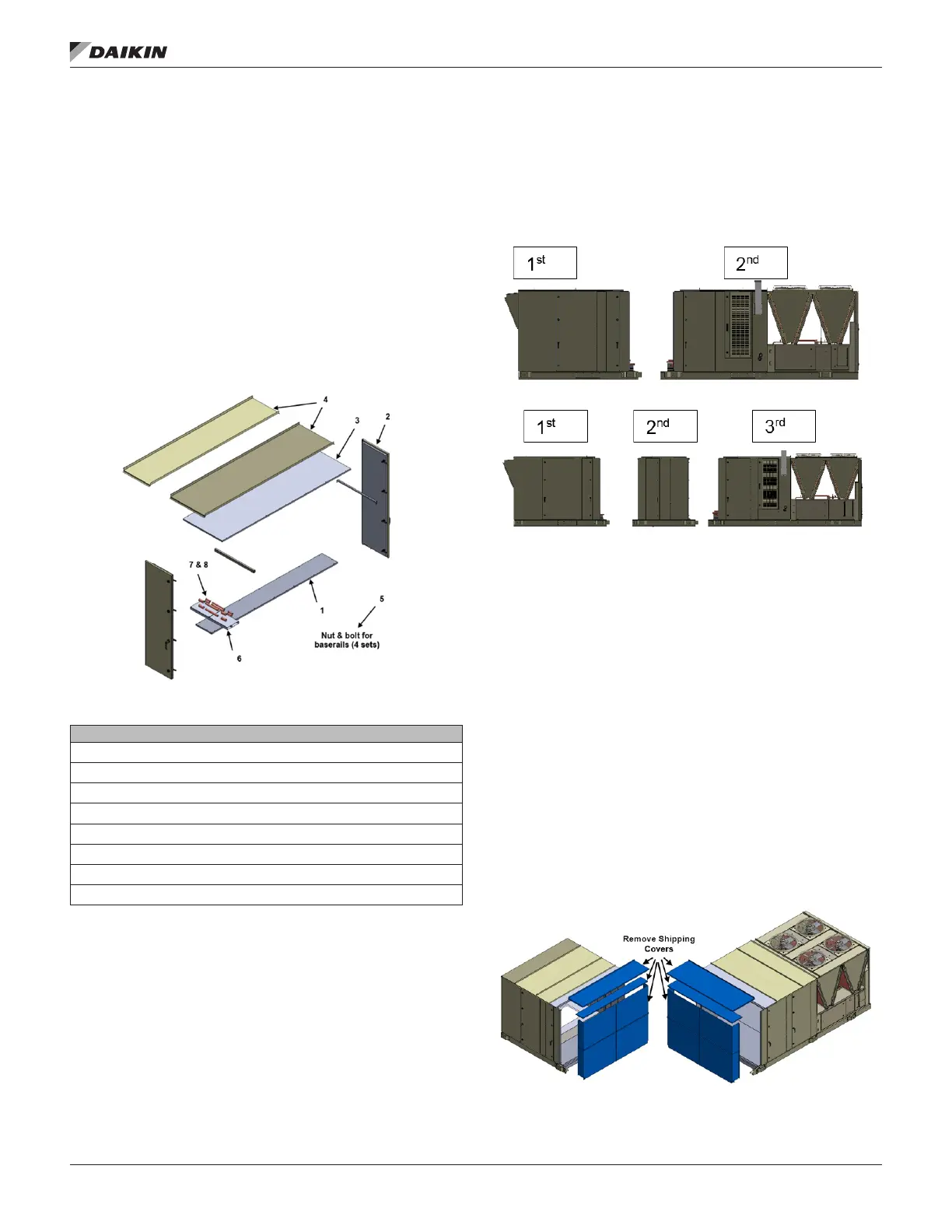

Figure 54: Kit for Reassembly of Shipping Splits
Table 3: Shipping Split Reassembly Kit
Components
2” deck panel (x1) (panel screws included)
2” doors (x2) (screws included for hinges)
2” roof panel (x1) (panel screws included)
Rain covers (x2) (hardware included)
Bolt, nut, and washer set for base rails (x4)
Parts for wire raceway
Up to 7 tubes
Up to 14 slip joints
The cabinet modules must be reassembled on the roof curb
in the proper order. The return section should be set in place
rst, followed by the center section (if applicable), and the
condenser section last (Figure 55).
Figure 55: Potential Split Locations and Order of Assembly
on Curb
The instructions for setting and leveling the curb found in
“Roof Curb Assembly and Installation” on page 29 must
be followed to allow for the proper reassembly of the cabinet
components. To ensure proper alignment and sealing of the
cabinet panels it is critical that the curb is level and square
before assembly.
Reassembly Procedure
1. Always follow proper rigging and lifting procedures when
moving the cabinet modules. See “Lifting Guidance” on
page 34.
2. Remove the galvanized shipping covers. The open ends
of the cabinet will be exposed once they are removed.
The galvanized shipping covers will not be used during
re-assembly and can be recycled. The cabinet will be
resealed once the unit is reassembled using the supplied
parts kit.
Figure 56: Remove Shipping Covers
