www.DaikinApplied.com 39 IM 1287-6 • REBEL APPLIED ROOFTOP

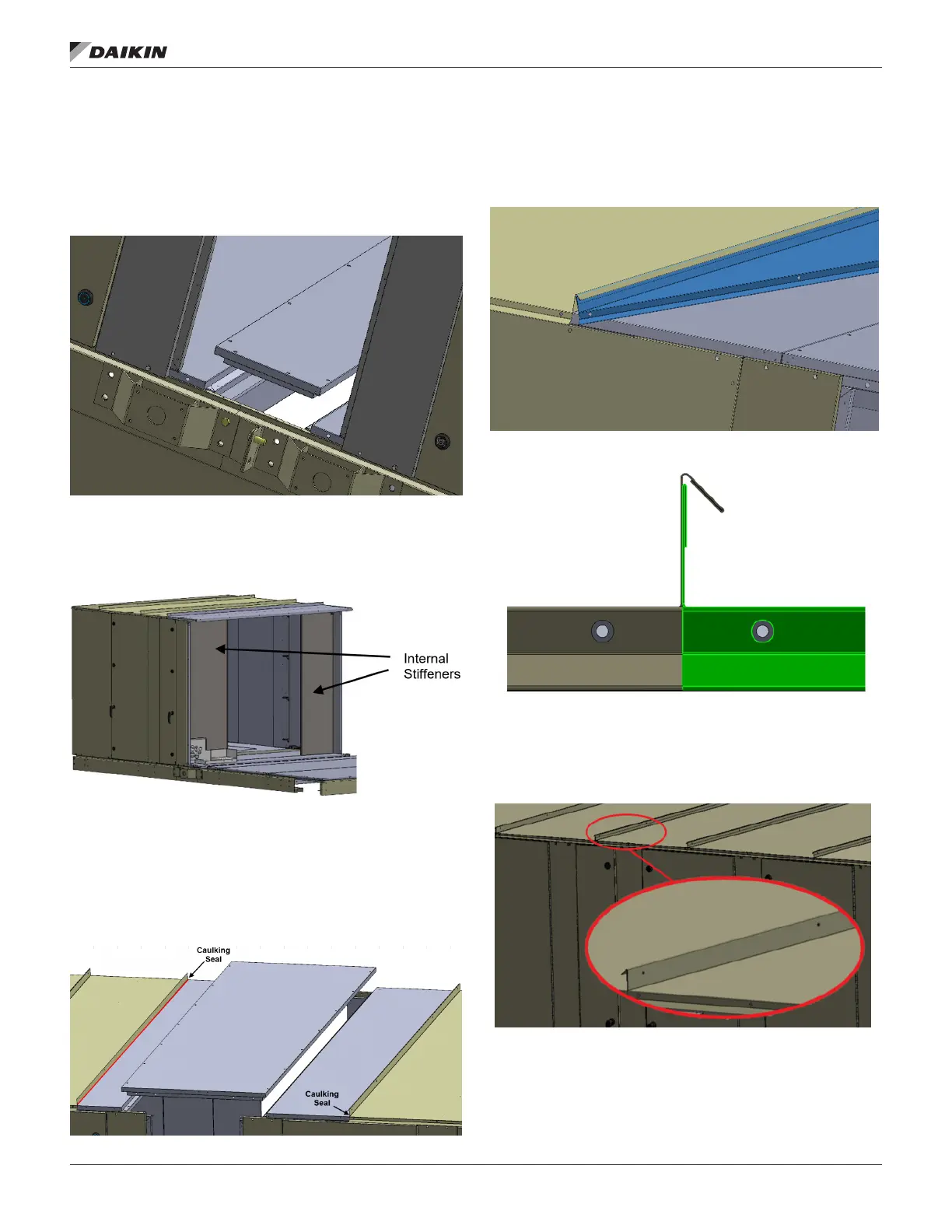

7. Place and fasten deck panel to base (Figure 61). All
fasteners in the deck panel need to be fastened to a
torque of 35 in·lbs and approximately ush with the deck
sheet-metal.
Figure 62: Install Deck Panel to Base
8. Remove internal stieners and recycle.
Figure 63: Remove Stieners
9. Place and fasten roof panels. There are 4 fasteners per
side from the top down. Use proper ladder techniques
to reach and secure these fasteners. There will be 14
fasteners in the air tunnel (pointed up). All of the holes
should be used.
Figure 64: Install Roof Panels
10. Add rain covers (Figure 65) by liberally applying caulk
(Figure 64) to prevent leaks from rain or moisture. Tip
hemmed lip in under previous rain cover (Figure 66).
Figure 65: Install Rain Covers
Figure 66: Standing Seam
11. Use the provided #10 sheet metal screws to secure the
rain cover to the roof panels (up to 4 per side). Use the
same screws to secure the standing seam (Figure 67).
Figure 67: Fasten Standing Seam
