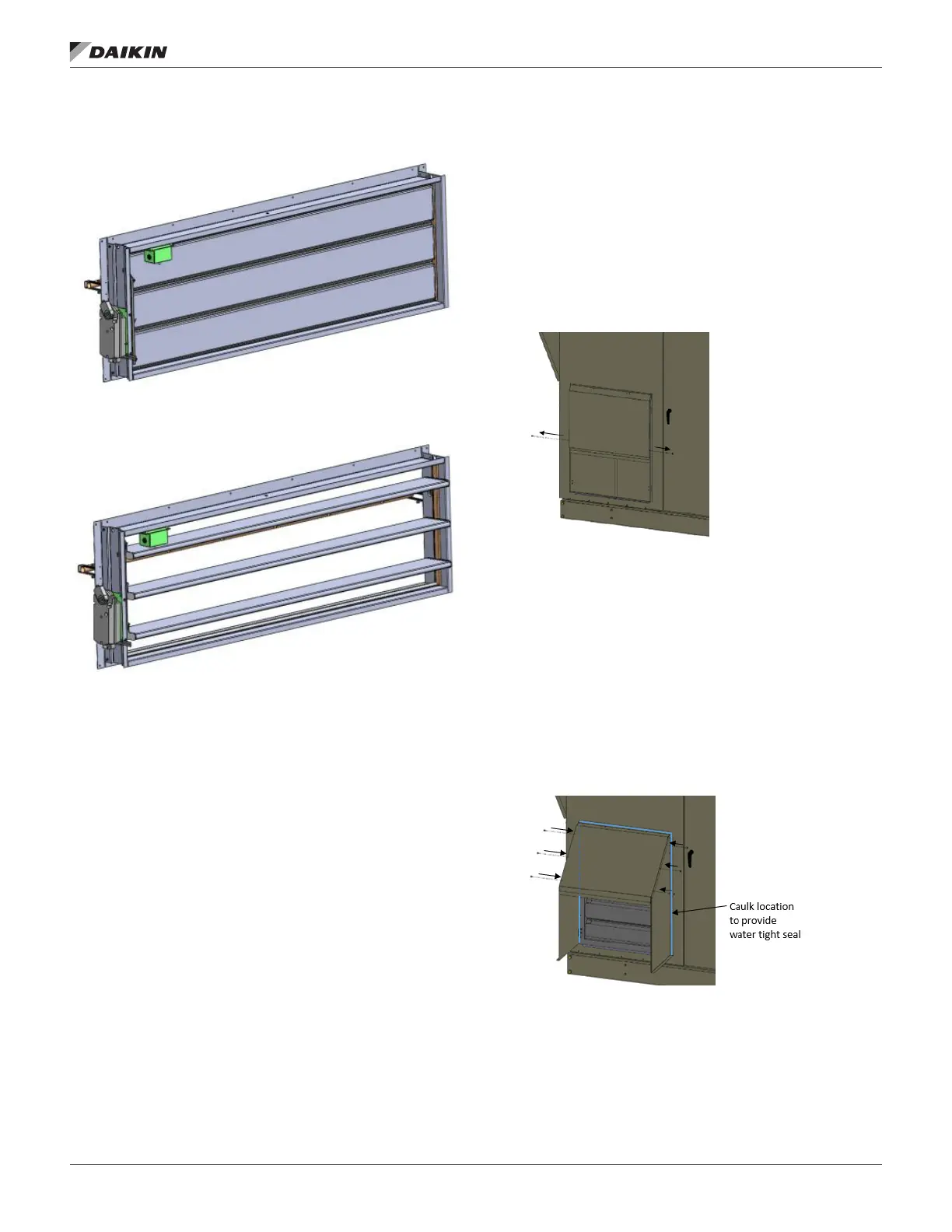

Figure 96: Intake Hood Damper Adjustment
0% Outside Air
100% Outside Air
Exhaust Hood Assembly
On units equipped with exhaust dampers, a hood is provided
on the unit and must be set up properly prior to operation. This
section describes the procedure for setting up the hood. Failure
to complete this set up may cause damage to unit.
1. As shown in the gure below, the unit is shipped with the
hood assembly folded in. To begin set up, remove and
retain two shipping screws holding the hood pieces in
place.
Figure 97: Exhaust Hood Folded In
2. Fold top of hood up.
3. Fold left side and right side out and put screws provided
with unit into corresponding holes to lock in position
of left side and top of the hood as shown in Figure 98
(reinstall 2 shipping screws and use 4 additional screws
provided with unit).
4. Place caulk where shown below in Figure 98 to seal all
seams between unit cabinet and hood to create a leak
proof water tight seal.
Figure 98: Exhaust Hood Folded Out
