Daikin Rebel Applied DPSA - Page 57


www.DaikinApplied.com 57 IM 1287-6 • REBEL APPLIED ROOFTOP

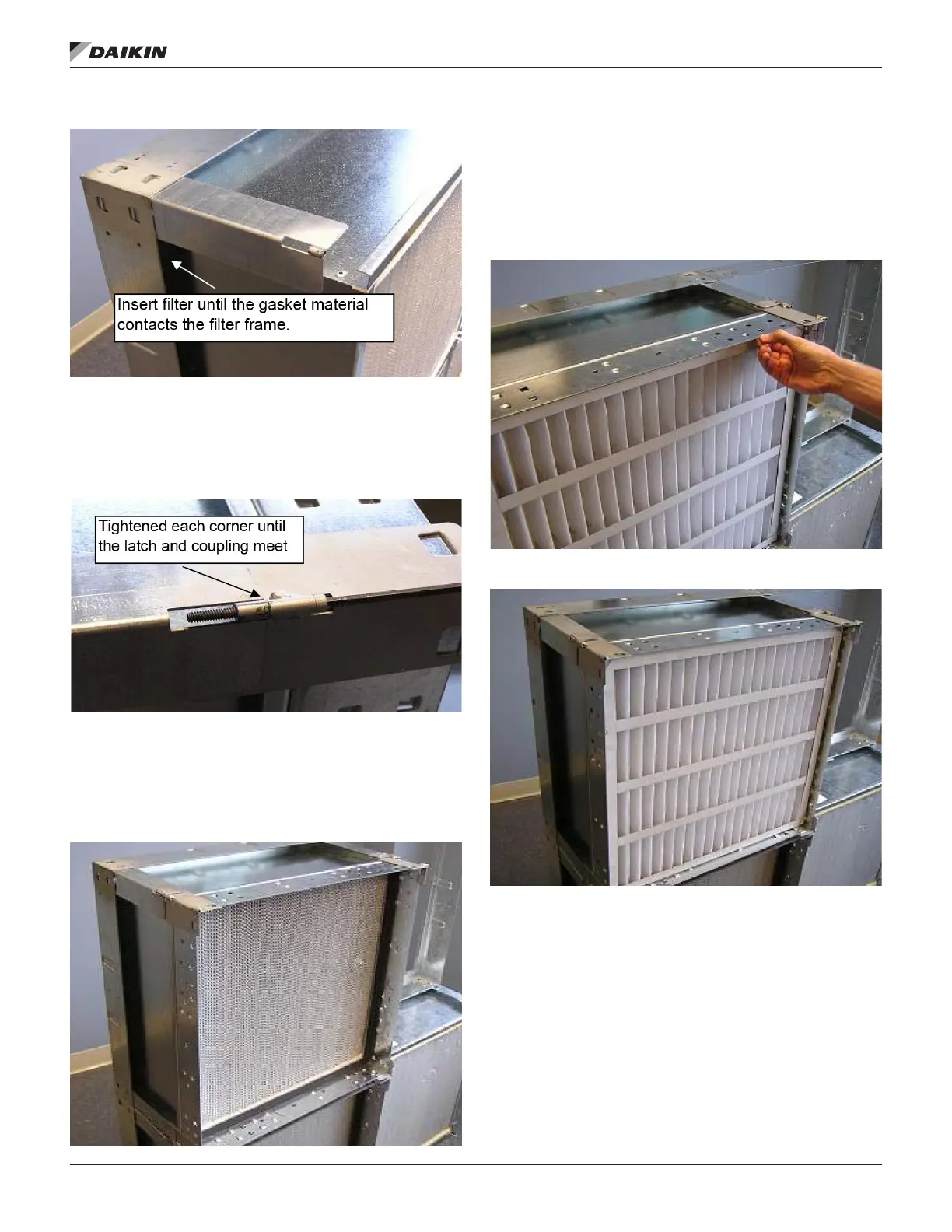

Figure 112: Tighten Cap Screw to 1/4” of the Coupling
STEP 7: Once all four corner latches have been tightened
within 1/4” of the leg extension coupling, tighten each corner
until the latch and leg extension coupling meet. This is shown
in Figure 113.
Figure 113: Tighten until Latch and Coupling Meet
Once all four corners have been tightened the HEPA lter
should now be properly seated and sealed (Figure 114).
Repeat the process with all remaining lters working from the
bottom to the top.
Figure 114: Properly Installed HEPA Filter
STEP 8: To complete the installation, add the appropriate
prelter latches to the prelter holding frame (Figure 115).
Once latches are installed, place the prelter in the frame,
secure with the latches and the installation is complete (Figure
116).
Repeat with all remaining prelters and frames.
Figure 115: Installation of Prelter Into Frame
Figure 116: Completed Assembly
