Daikin RKS09HV2S User Manual

Si001156 Removal of Electrical Box
Removal Procedure 11

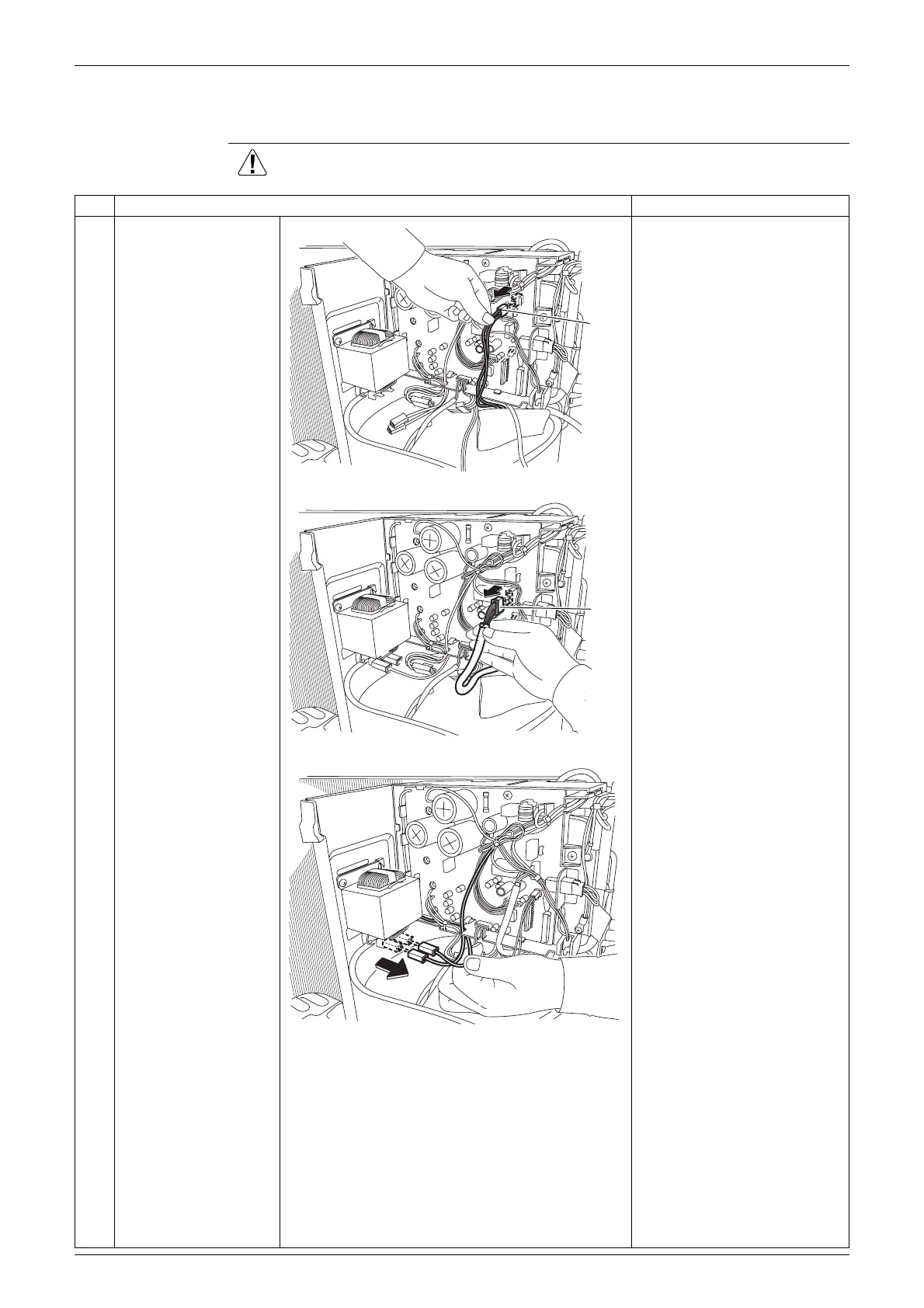

2. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Disconnect the
connector for the four
way valve coil [S80].
Preparation

Remove the outer panels
and disconnect the
connector for the fan motor
according to the “Removal
of Outer Panels / Fan
Motor”.
2
Disconnect the
connector for the
electronic expansion
valve coil [S20].
3
Disconnect the 2
connectors for the
reactor.

When reassembling, you
can connect the 2
harnesses in either way
regardless of the color.
(R11848)
[S80]
(R17476)
[S20]
(R17477)
