Si001156 Removal of Reactor / Partition Plate
Removal Procedure 21
4. Removal of Reactor / Partition Plate
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

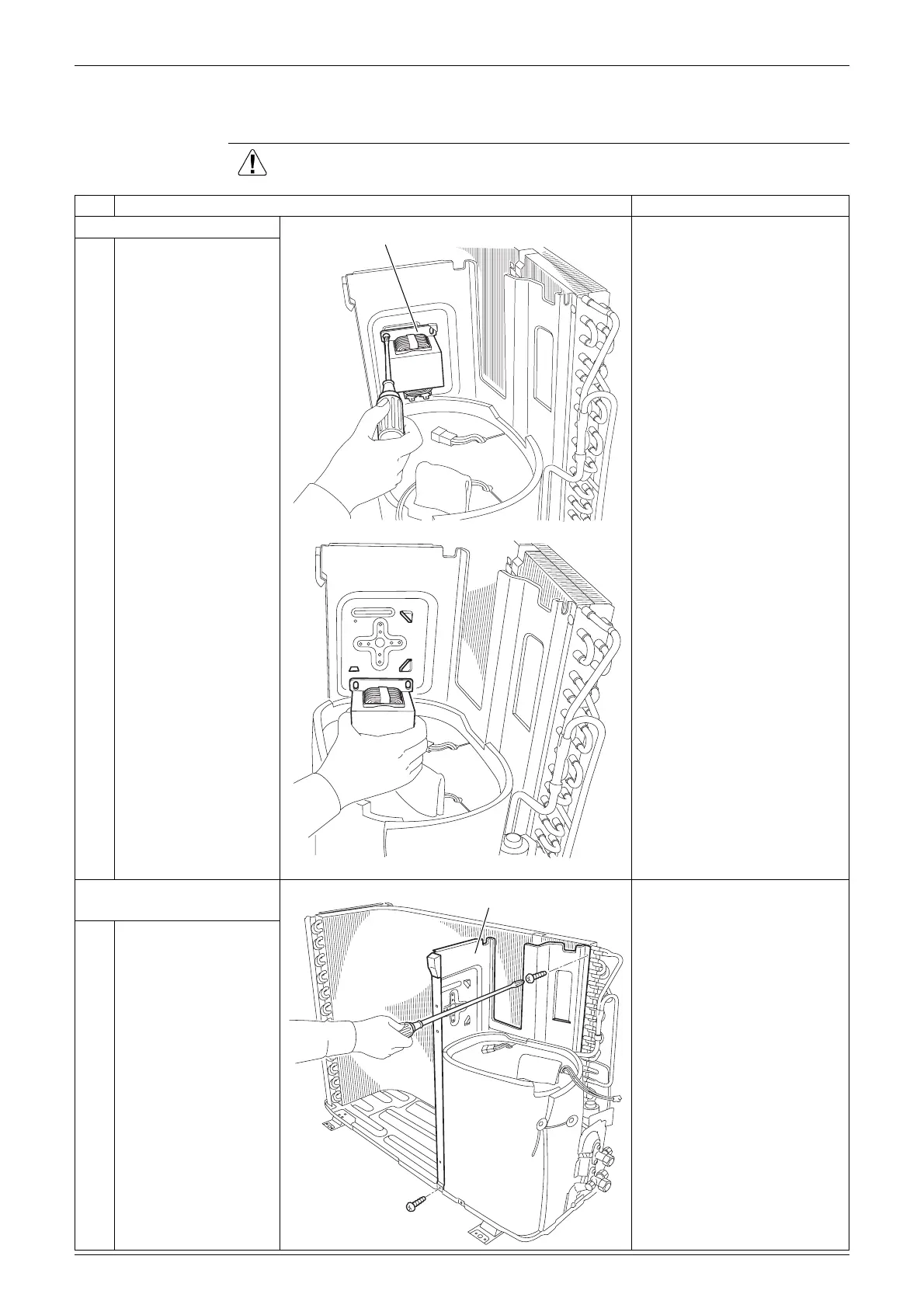

Step Procedure Points
1. Remove the reactor. Preparation

Remove the outer panels
according to the “Removal
of Outer Panels / Fan
Motor”.

Remove the electrical box
according to the “Removal
of Electrical Box”.
1
Remove the screw and
remove the reactor.
2. Remove the partition
plate.
1
Remove the 2 screws.
(R11879)
Reactor
(R11880)
(R12273)
Partition plate
