Daikin RM13NV2S - Page 14

Compressor ASSY Si011357EA

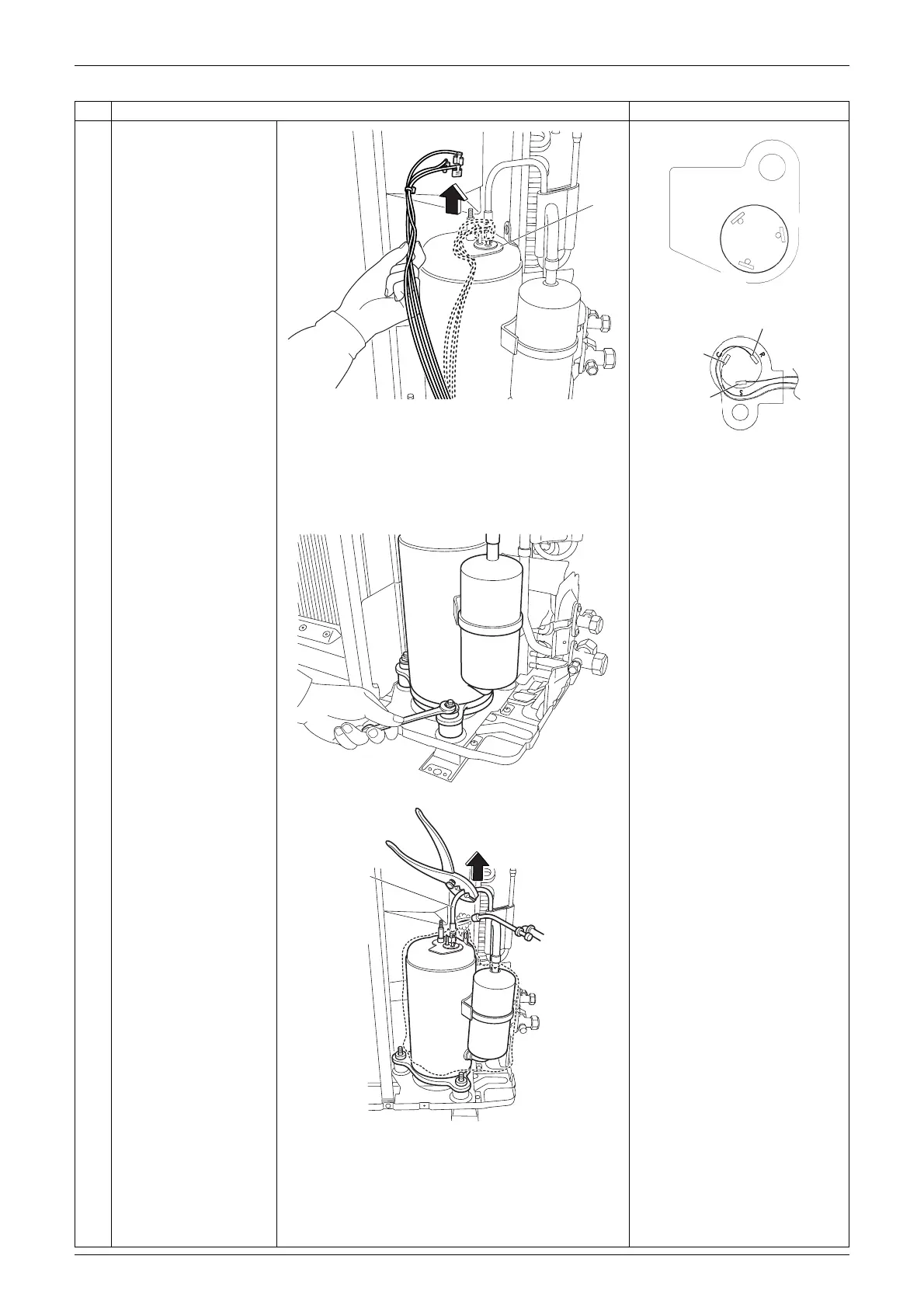

12 Removal Procedure
2
3
Disconnect the
compressor lead wires.
Remove the gasket.
S (W): yellow
C (U): blue
R (V): red
4
Remove the 3 nuts of
the compressor.
5
Heat up the brazed part
of the discharge side
pipe and disconnect it.
Step Procedure Points
(R17183)
Gasket
S (W)
C (U)
R (V)
(R15393)
C
(
U
)
R
(
V
)
S
(
W
)
(
R20756
)
(R15442)
(R20757)
Discharge
side pipe
