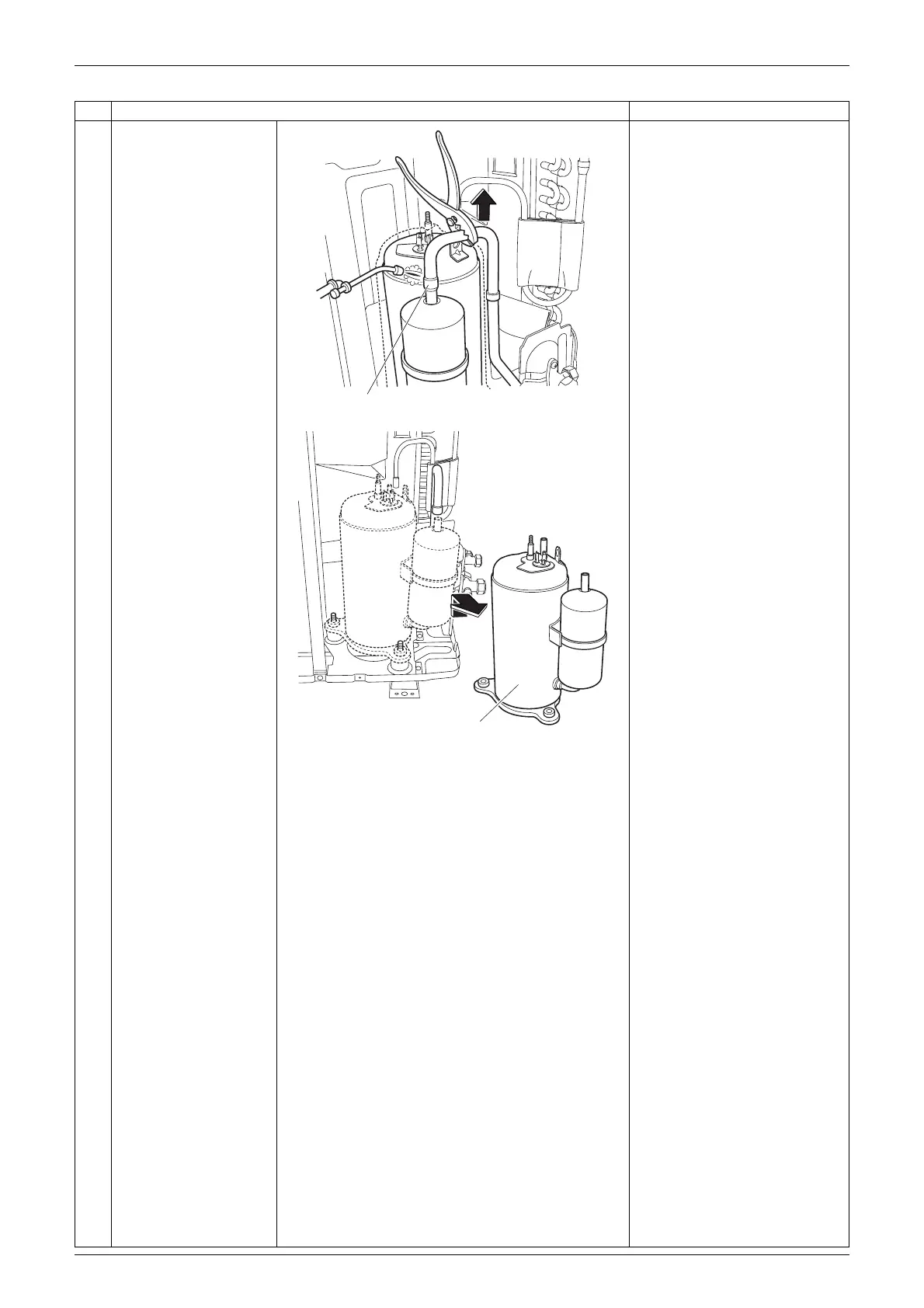

Si011357EA Compressor ASSY
Removal Procedure 13
6
Heat up the brazed part
of the suction side pipe
and disconnect it.
7 Lift the compressor
ASSY up and remove it.
Step Procedure Points
(R20758)
Suction side pipe
(R15471)
Compressor ASSY
