Si18-797 Outdoor Unit
Removal Procedure 15

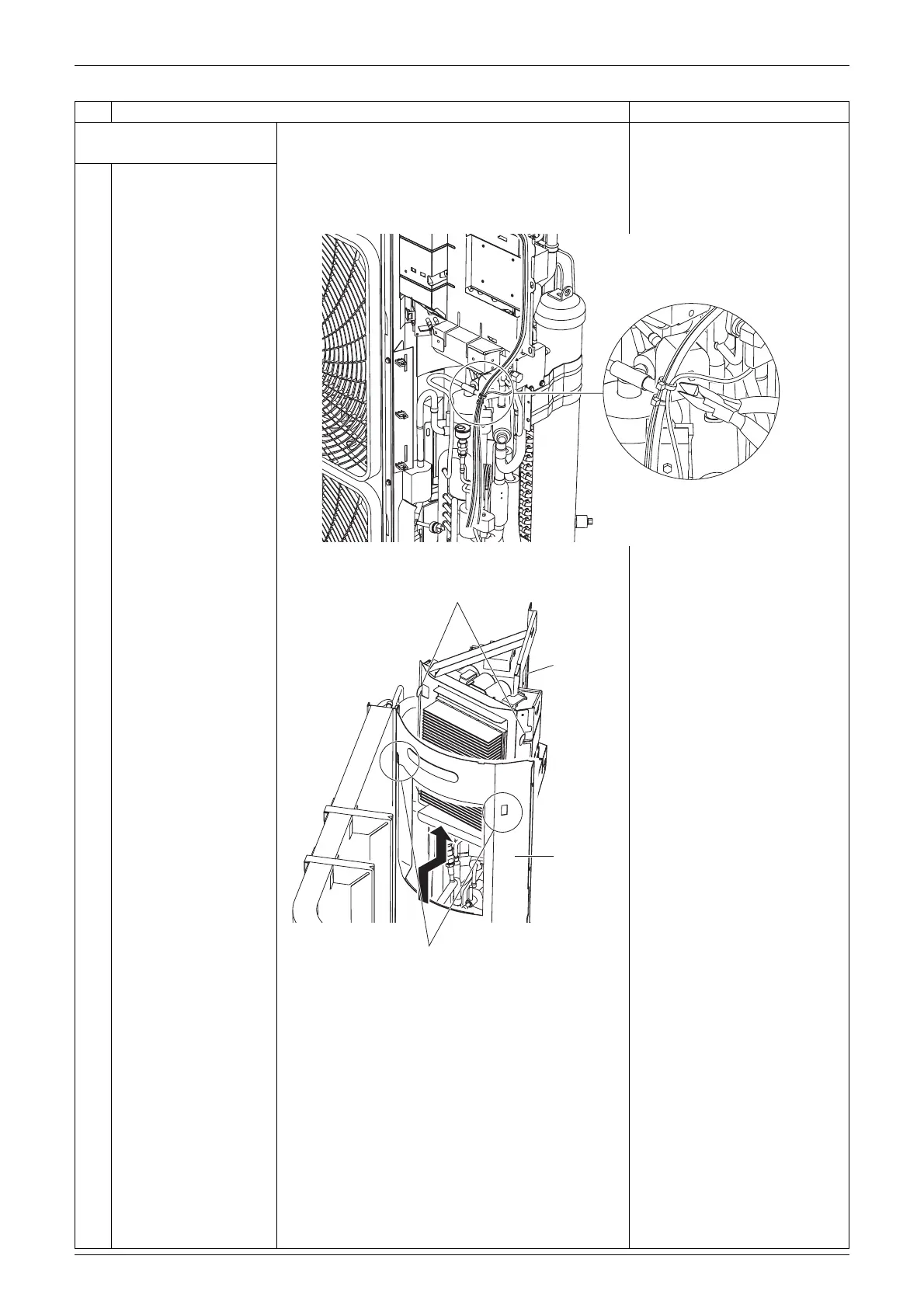

4. Remove the electrical
assembly.
1
Remove the clamp. Cut off with nippers.
The clamp is to be kept in stock.
2
Lift the electrical
assembly to unhook it.
Step
Procedure Points
(Q0479)
Hooks
Hook holes
Partition plate
(Q0480)
Electrical
assembly
