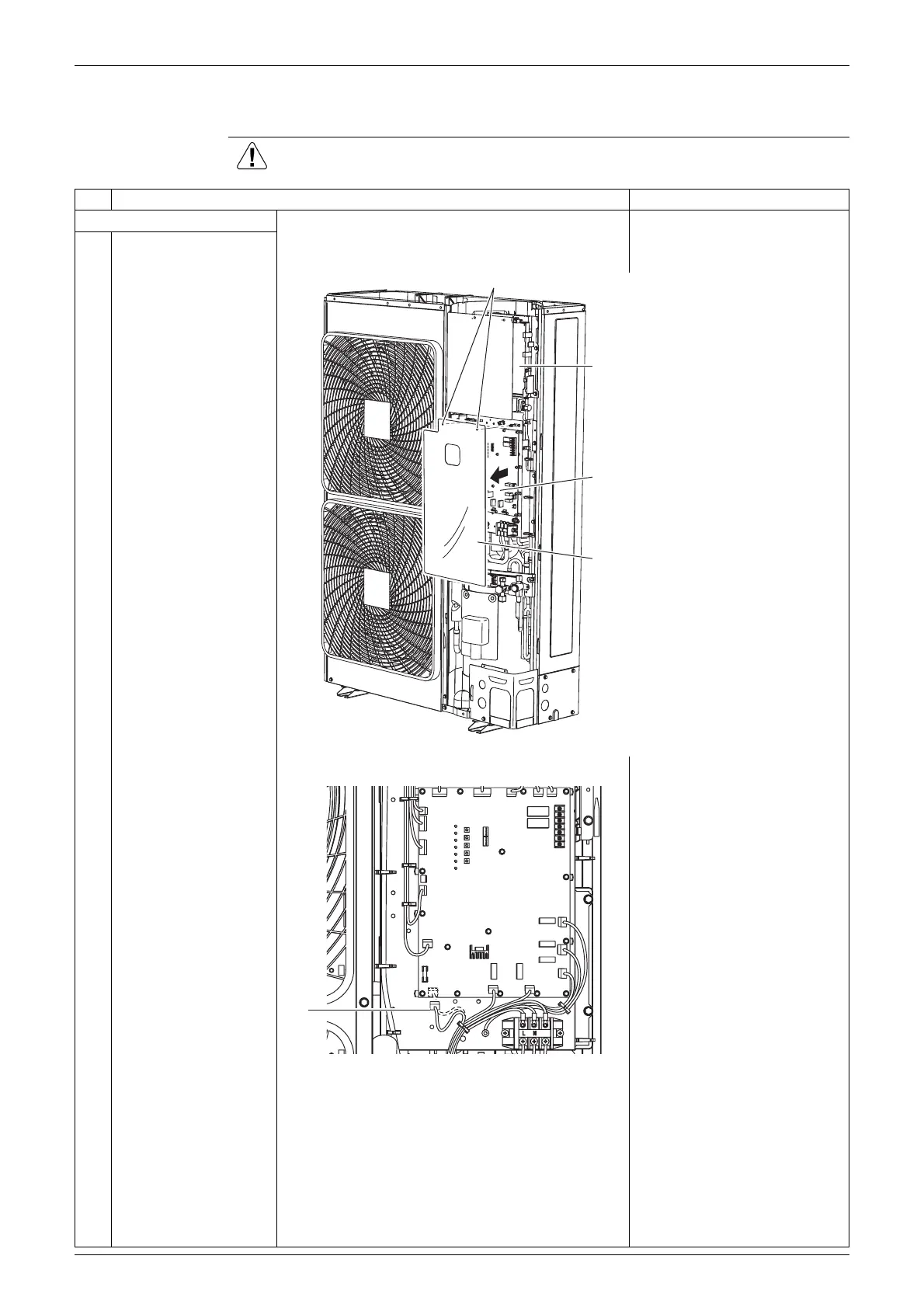

Si18-797 Outdoor Unit
Removal Procedure 9
1.2 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the control PCB.
1
Detach the 2 top
locking guard spacers.
2
Remove the drip proof
cover.
3
Disconnect the power
relay connector. (X1A)
Locking guard spacers.
Power filter PCB
Control PCB
Drip proof cover
(Q0462)
X1A
(Q0463)
