Daikin RMKD112DVM User Manual

Si18-797 Outdoor Unit

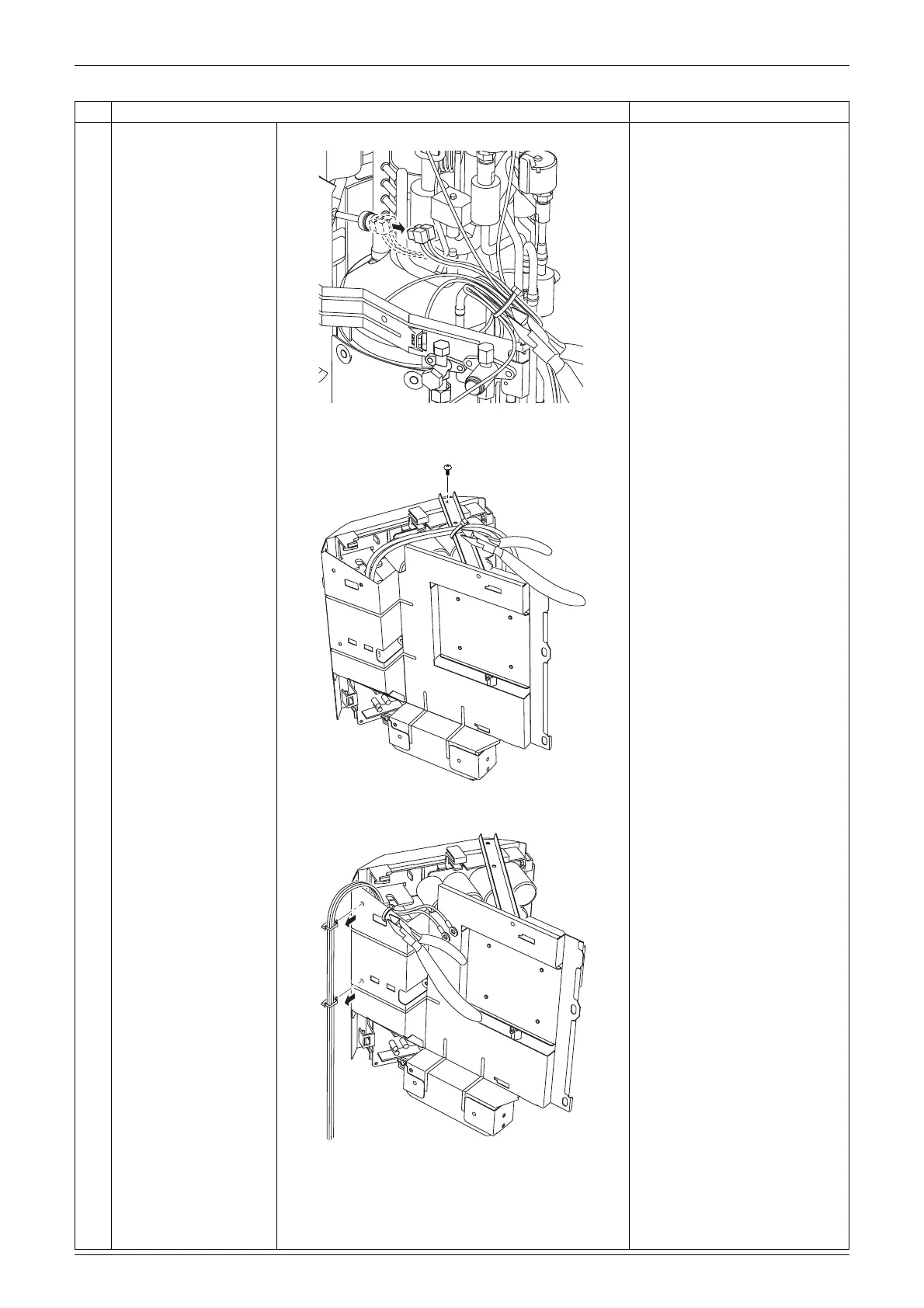

Removal Procedure 17
4
Disconnect the HPS
connector and the
electrical box connector
from each other.
HPS connector: Red
Electrical box connector: White
5
Remove the clamp and
unbind the leads.
Cut off with nippers.
The clamp is to be kept in stock.
6
Remove the clamp
(reactor lead).
Cut off with nippers.
7
Remove the screw.
8
Remove the clamp
(reactor lead).
Cut off with nippers.
9
Remove the two clamps
and disconnect the
compressor lead.
Step
Procedure Points
(Q0483)
(Q0484)
(Q0485)
