Daikin RMKS112EV1A - Removal of Electronic Expansion Valve Coils

BP Unit Si181095
26 Removal Procedure
2.2 Removal of Electronic Expansion Valve Coils
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

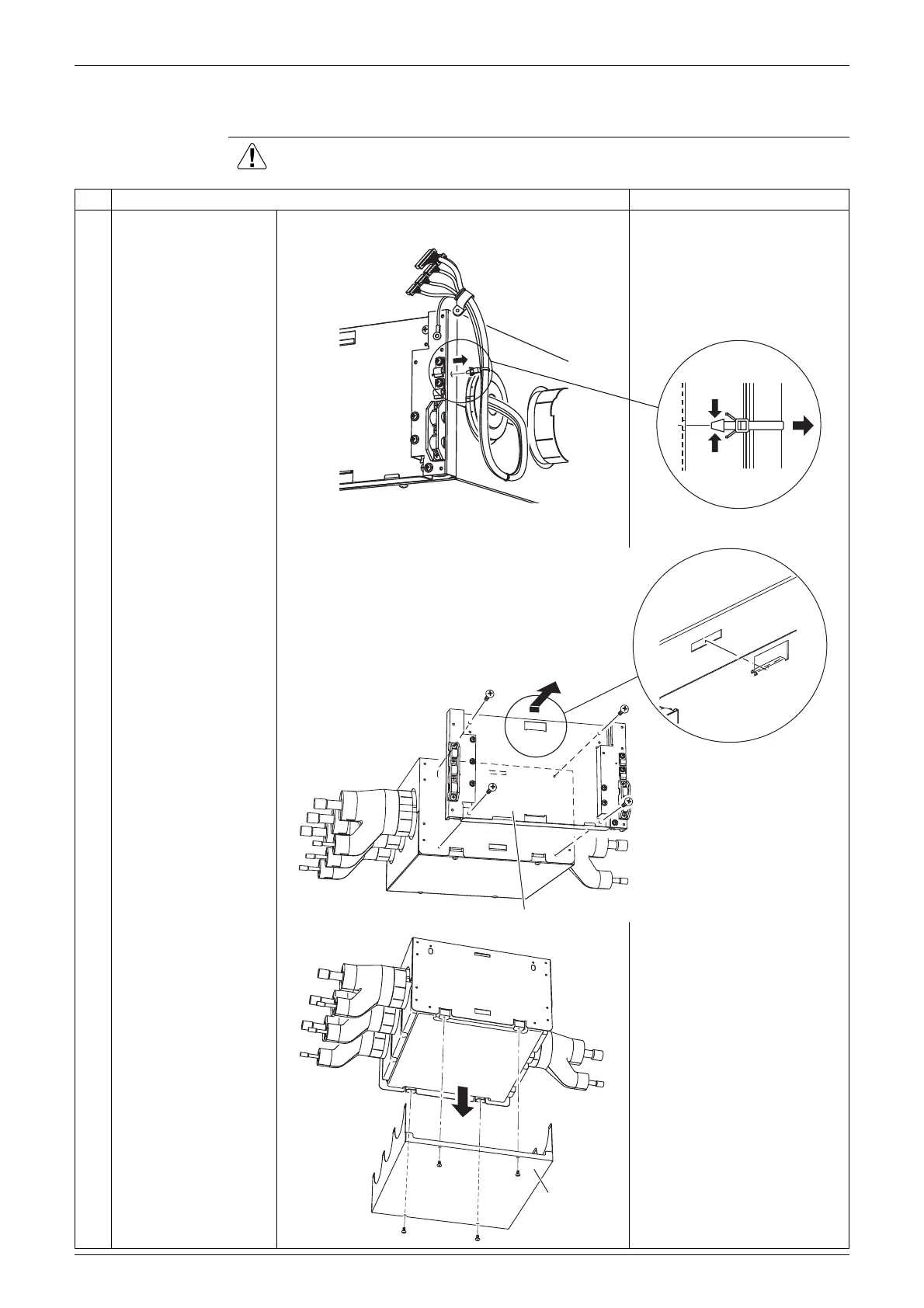

1
Detach the clamp of the
wire harnesses.
Preparation

Remove the PCB assembly
according to the “Removal of
PCB Assembly”.
2
Remove the 4 screws
and remove the
electrical component
mounting plate.
3
Remove the 4 screws
and remove the bottom
plate.
(Q0509)
(R9272)
(R12991)
Electrical component mounting plate
(R12992)
Bottom plate
