Si181095 Outdoor Unit
Removal Procedure 5
1.2 Removal of PCBs / Electrical Components
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

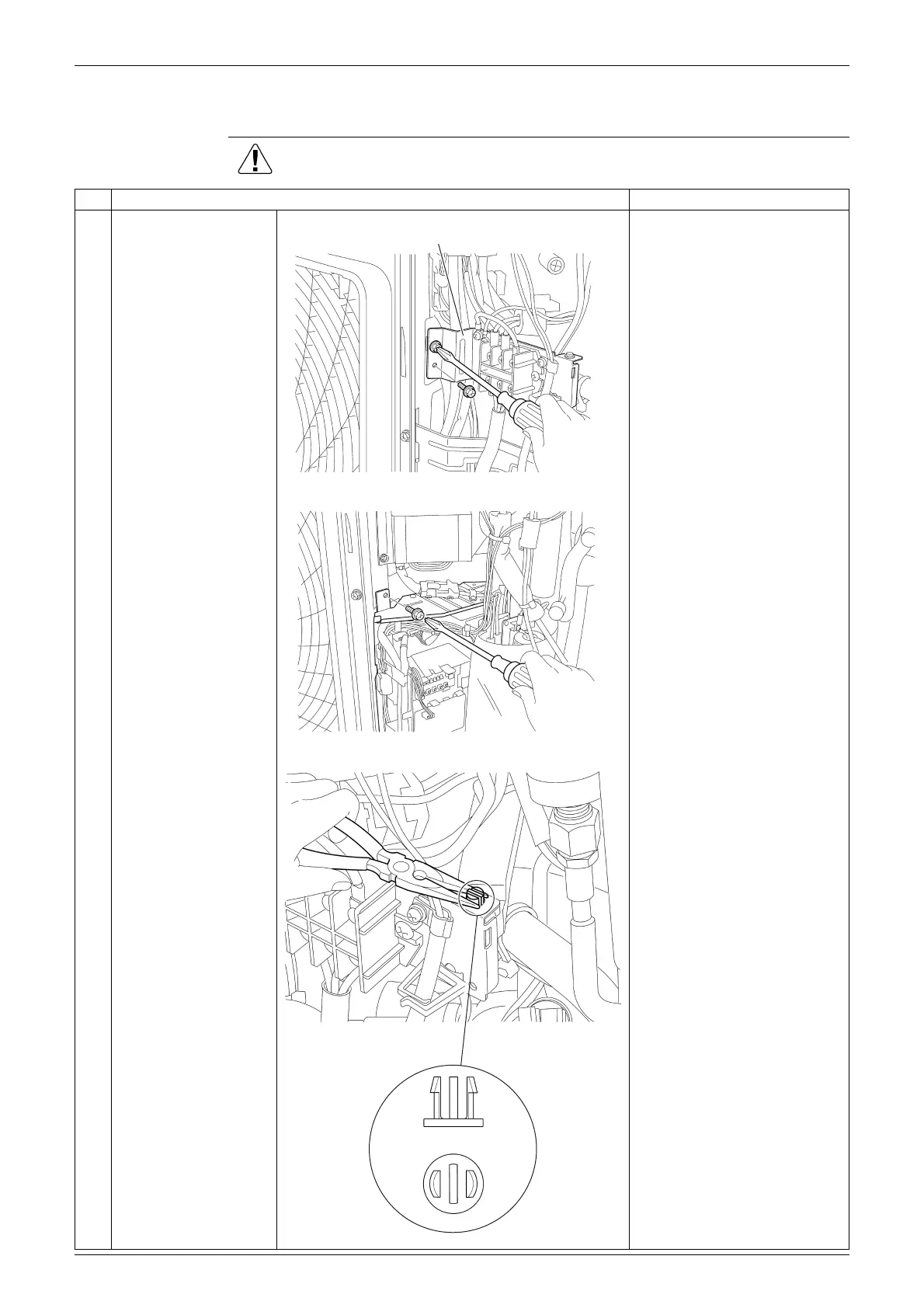

Step
Procedure Points
1 Remove the 2 screws
of the terminal
mounting plate.
Preparation

Remove the outer panels
according to the “Removal of
Outer Panels”.

M5(3) × 12
2 Remove the screw
above the electrical
component assembly.

M5(3) × 12
3 Unfasten the clamp
from the terminal
mounting plate.
(R12966)
Terminal mounting plate
(R9220)
(R9221)
