Si181095 Outdoor Unit
Removal Procedure 7

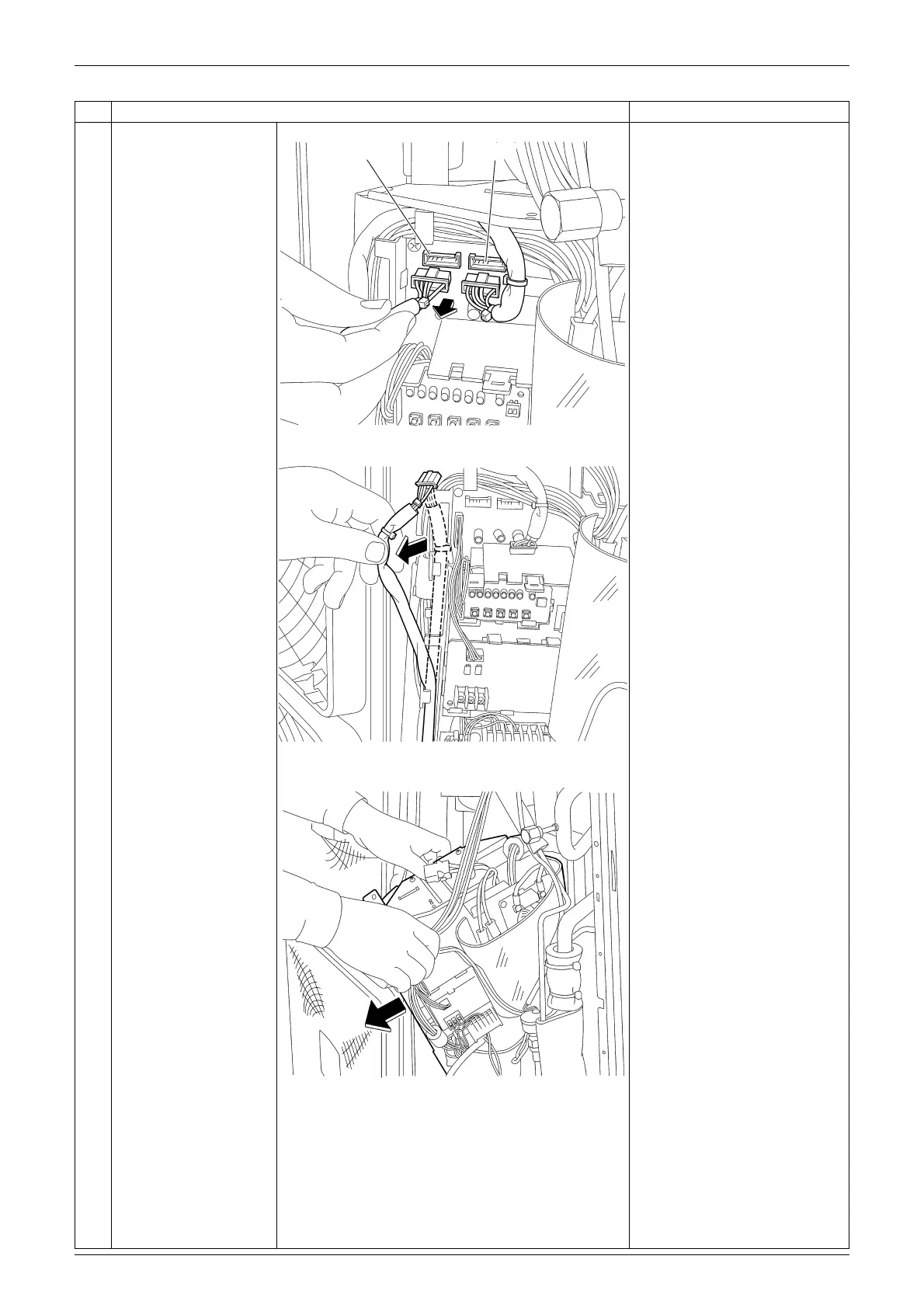

6 Disconnect the 2
connectors for the fan
motor [X106A] [X107A].
7 Release the fan motor
lead wires from the
hooks.
8 Release the lead wires
of the solenoid valves
and four way valve from
the fixing plate and then
remove the electrical
component assembly.
Step
Procedure Points
(R12967)
[X106A] [X107A]
(R9227)
(R9228)
