56
TM-FT-0415-B

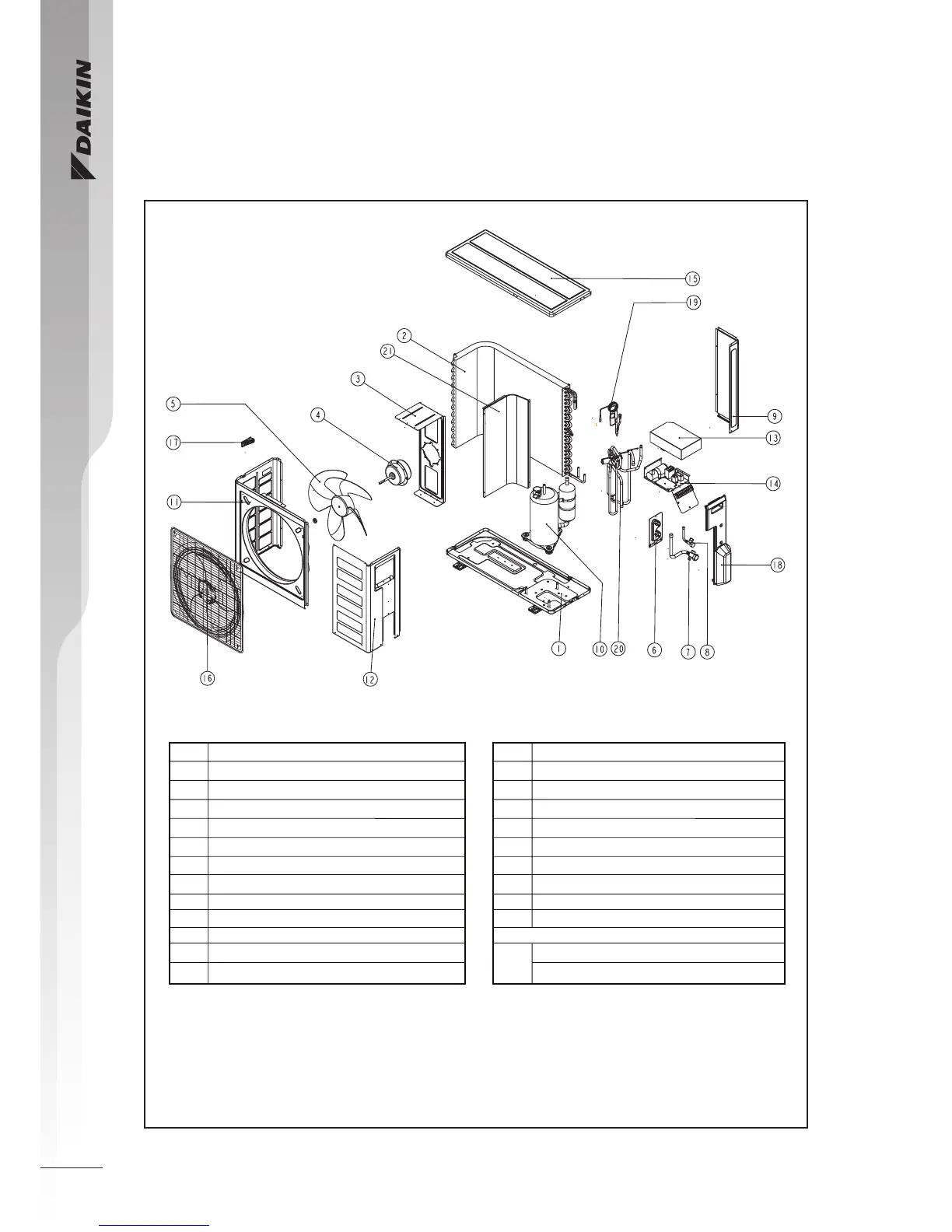

Outdoor Unit
Model : R18/20CV1, RN20/25CV1
NO. DESCRIPTION NO. DESCRIPTION
1 ASSY., BASE PAN
2 ASSY., OUTDOOR COIL
3 MOTOR BRACKET
13 TERMINAL COVER PANEL
4 FAN MOTOR
14 ASSY., CONTROL PANEL
5 FAN BLADE
15 TOP PANEL
6 VALVE BRACKET
7 ASSY., FLARE VALVE
8 ASSY., FLARE VALVE
9 BLACK PANEL, RIGHT
10
16 ASSY., FRONT GRILLE
17 PLASTIC HANDLE
18 ASSY., VALVE COVER
19 ASSY., CAPE TUBE
20 SUCTION PIPE
21 PARTITION
PARTS NOT IN THE DIAGRAMS
CAPACITOR, FAN MOTOR
CAPACITOR, COMPRESSOR
COMPRESSOR
11 FRONT PANEL LEFT
12 SERVICE PANEL
* DUE TO OUR POLICY OF INNOVATION, SOME SPECIFICATIONS MAY BE CHANGED WITHOUT NOTIFICATION.
