Model : R25CV1, RN28CV1

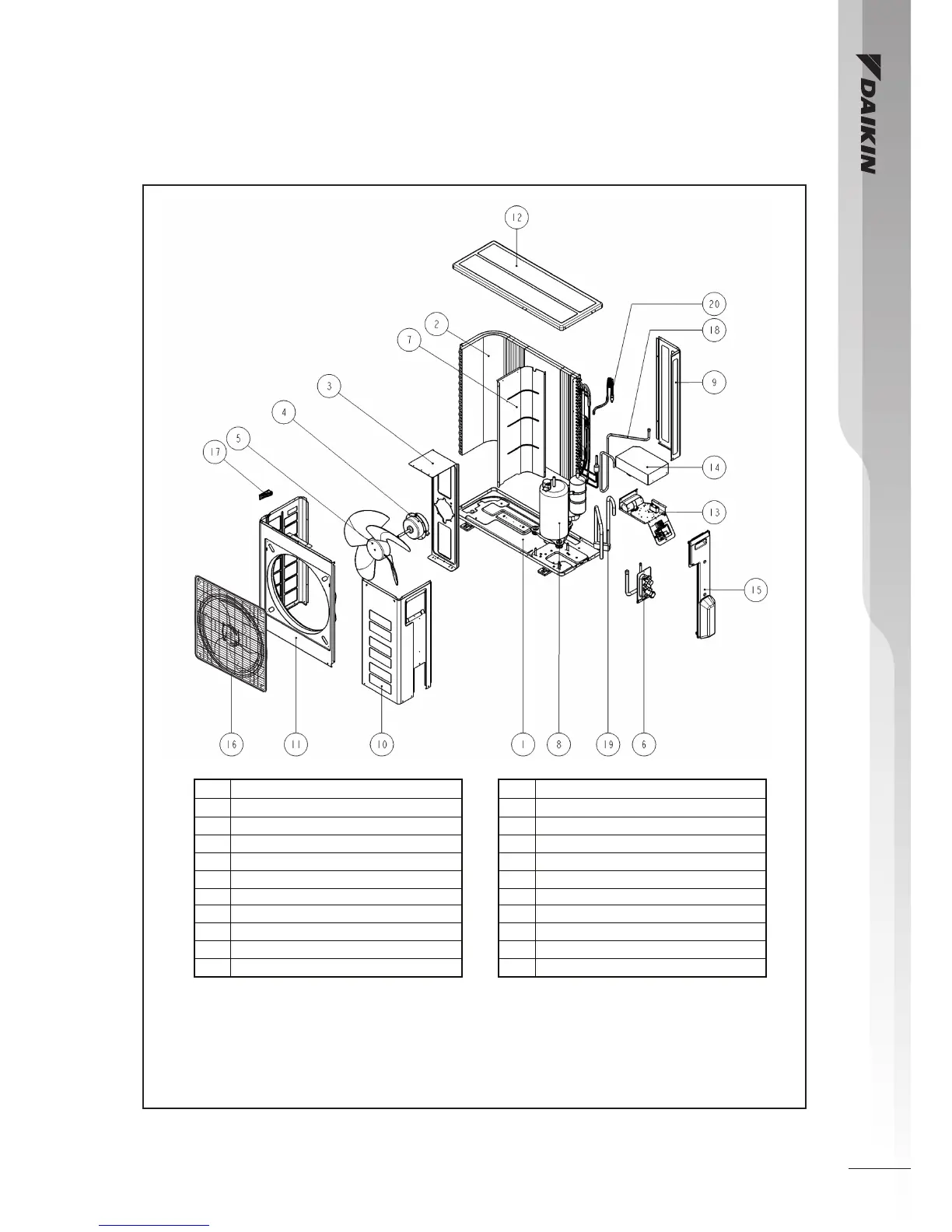

1 ASSY. BASE PAN
2 ASSY. OUTDOOR COIL
3 MOTOR BRACKET
4 FAN MOTOR
5 FAN BLADE
6 VALVE BRACKET
7 PARTITION
8 COMPRESSOR
9 BACK PANEL, RIGHT
10 SERVICE PANEL
NO DESCRIPTION NO DESCRIPTION
11 FRONT PANEL, LEFT
12 TOP PANEL
13 ASSY. CONTROL PANEL
14 TERMINAL CONTROL PANEL
15 ASSY. VALVE COVER
16 ASSY. FRONT GRILLE
17 PLASTIC HANDLE, SIDE
18 DISCHARGE PIPE
19 SUCTION PIPE
20 ASSY. CAP TUBE
* DUE TO OUR POLICY OF INNOVATION, SOME SPECIFICATIONS MAY BE CHANGED WITHOUT NOTIFICATION.
