Daikin RN10FV1 - Page 59

58
TM-FT-0415-B
Model : R31CV1

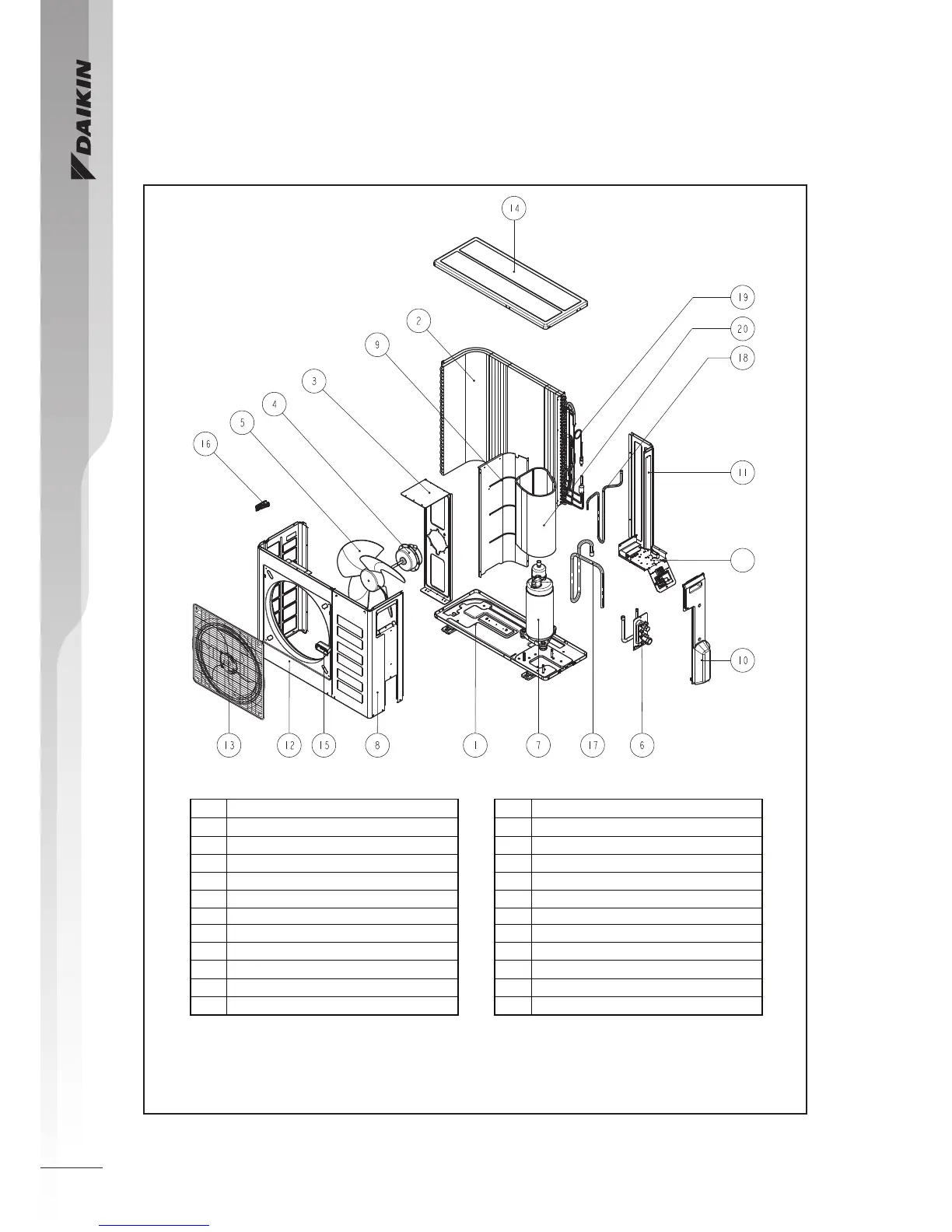

1 ASSY. BASE PAN
2 ASSY. OUTDOOR COIL
3 MOTOR BRACKET
4 MOTOR
5 FAN BLADE
6 ASSY. VALVE BRACKET
7
COMPRESSOR
8 PANEL, SERVICE
9 PANEL, PARTITION
10 ASSY., VALVE COVER
11 PANEL, RIGHT BACK
NO DESCRIPTION NO DESCRIPTION
12 ASSY., PANEL FRONT LEFT
13 ASSY, FRONT GRILLE
14 ASSY , PANEL TOP
15 PLASTIC, HANDLE FRONT
16 PLASTIC HANDLE
17
PIPE, SUCTION
18 PIPE, DISCHARGE
19 ASSY. CAP TUBE
20
FELT, COMPRESSOR
21 ASSY., CONTROL PANEL
* DUE TO OUR POLICY OF INNOVATION, SOME SPECIFICATIONS MAY BE CHANGED WITHOUT NOTIFICATION.
