Removal of Outer Panels Si011084
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

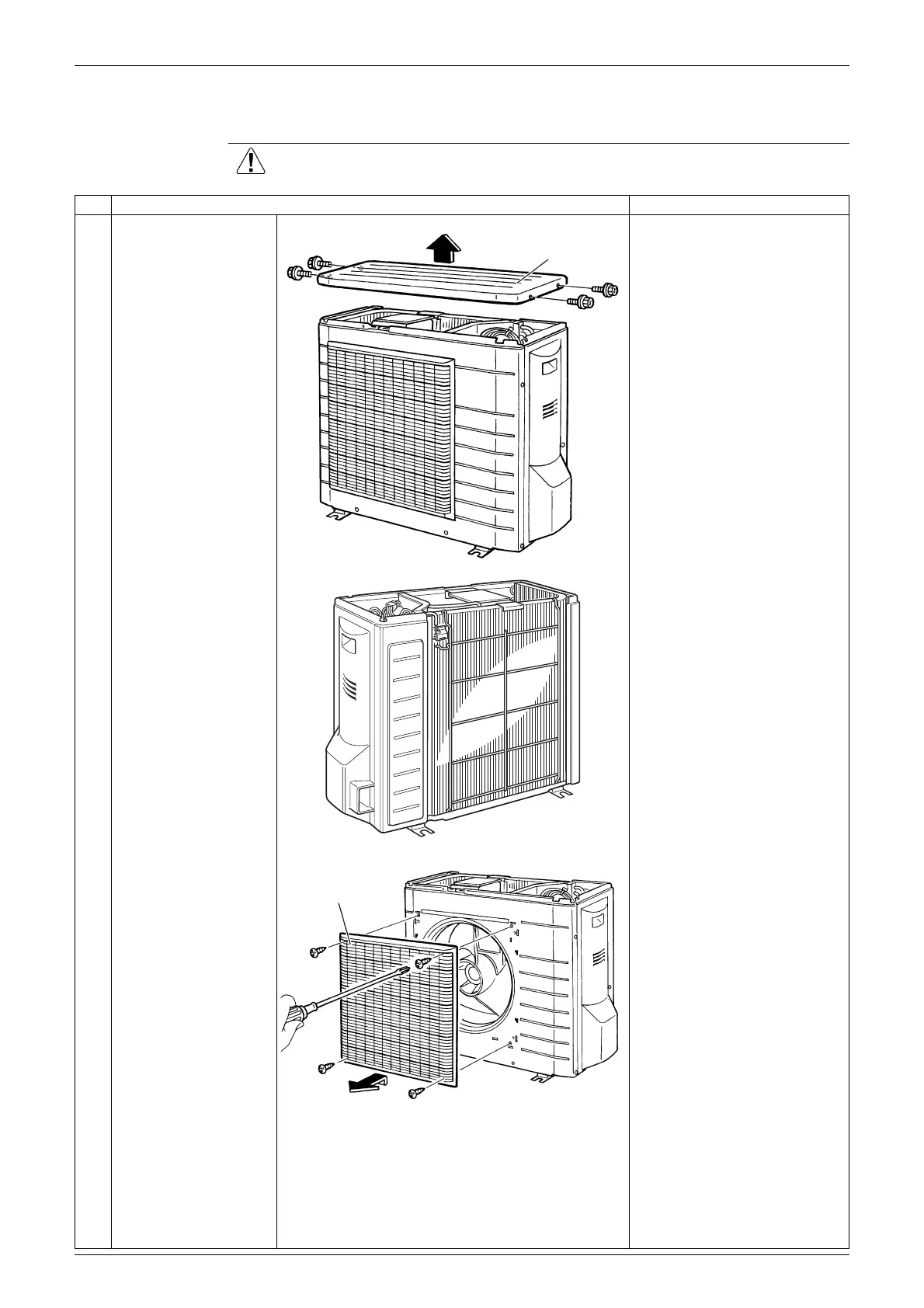

Step Procedure Points
1 Remove the 4 screws
and remove the top
panel.

Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
2 Remove the 4 screws
and remove the
discharge grille.
Top panel
(R5392)
(R6733)
Discharge grille
(R5394)
