9 | Electrical installation
Installer reference guide
49
RXTJ-A_RXTA-C_RXTM-A_RXTP-A
R32 split series
4P728168-1 – 2023.03
f
50 Hz
220-240 V

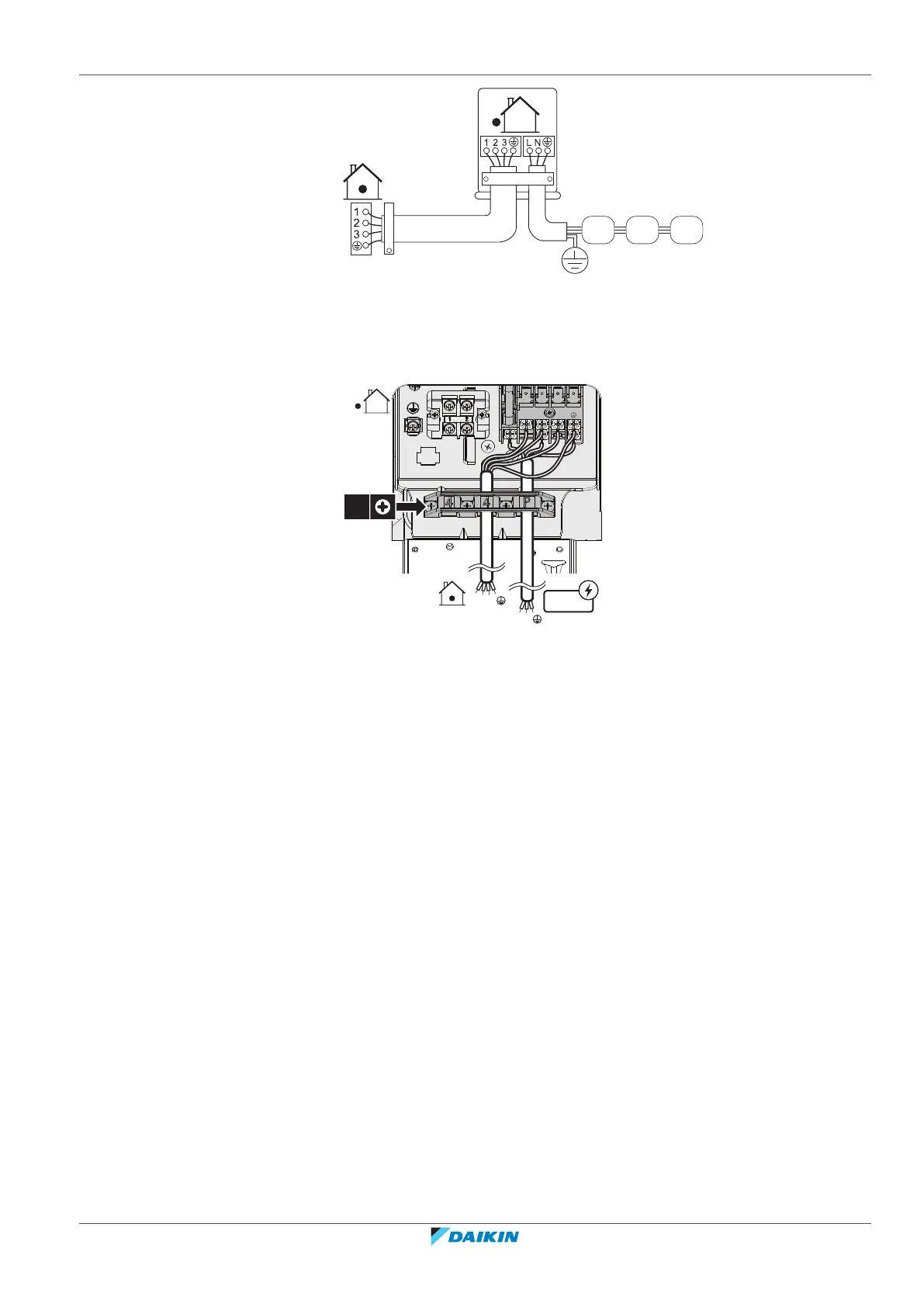

a b c d e
a Interconnection cable
b Power supply cable
c Circuit breaker (field provided fuse with 16A rating)
d Residual current device
e Power supply
f Earth
1
L
N
2
3
4×
1 2 3
L N
50 Hz
220~240 V
5 Tighten the terminal screws securely. We recommend using a Phillips
screwdriver.
