Adjusting the Air Flow Direction
• Press the AIR FLOW DIRECTION button to adjust the air flow angle. (only for FXCQ, FXFQ, FXHQ, FXAQ)
1.

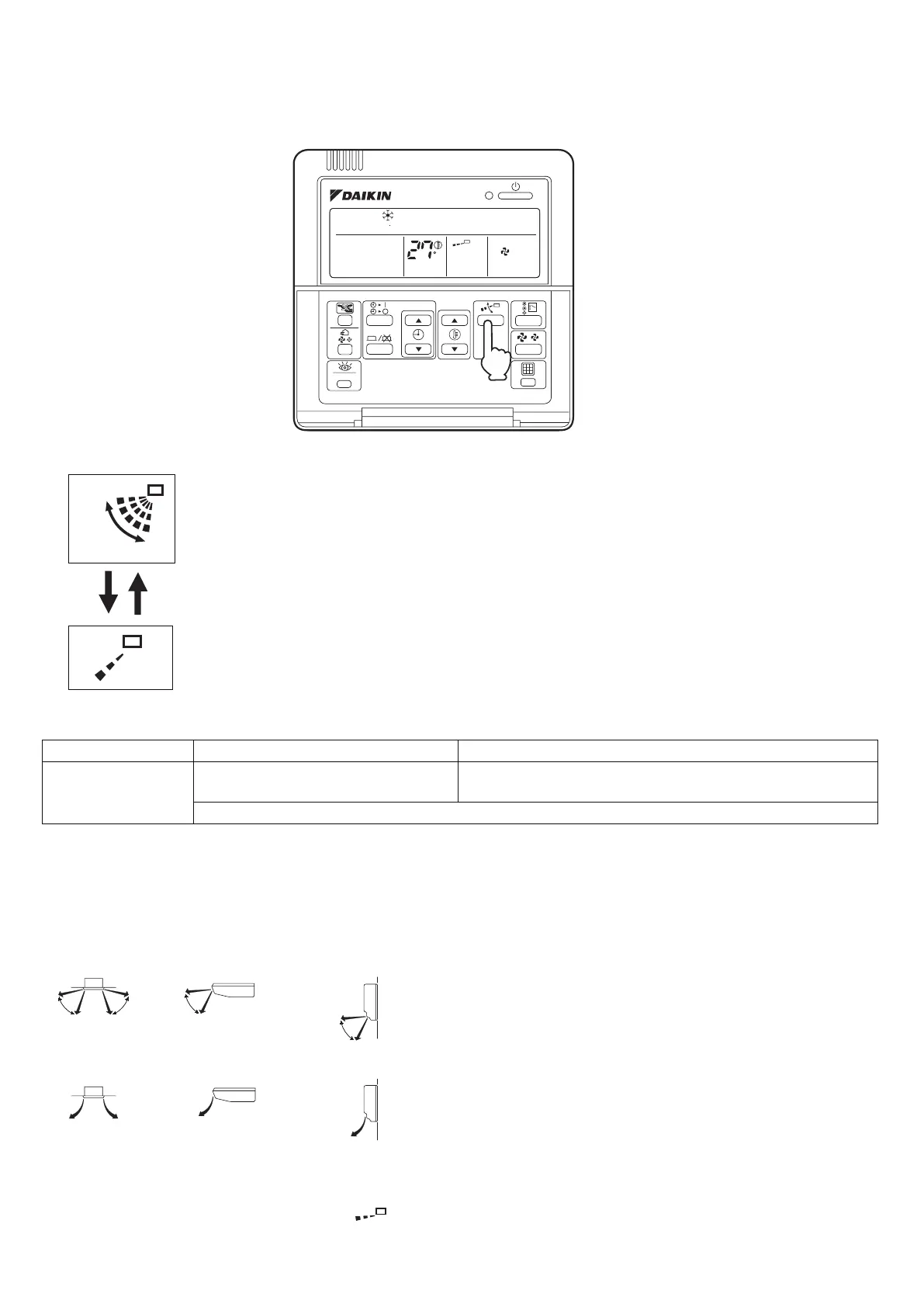

Press the AIR FLOW DIRECTION ADJUST button to select the air direction as shown below.
The AIR FLOW FLAP display swings as shown left and the air flow direction continuously varies.
(Automatic swing setting)
Press AIR FLOW DIRECTION ADJUST button to select the air direction of your choice.
The AIR FLOW FLAP display stops swinging and the air flow direction is fixed.
(Fixed air flow direction setting)
MOVEMENT OF THE AIR FLOW FLAP
For the followin
g conditions, microcomputer controls the air flow direction so it may be different from the display.
The air flow direction can be adjusted in either of the following ways.
• Automatic
The air flow flap adjusts its position itself.
• Fixed air flow direction
The air flow direction can be fixed by the user.
ATTENTION:
•
The movable limit of the flap is changeable. Contact your Daikin dealer for details. (Only for FXCQ, FXFQ, FXHQ and
FXAQ.)
•
Avoid operating in the horizontal direction “ ” which may cause dew or dust to settle on ceiling.
gnitaeHgnilooCedom noitarepO
Operation conditions
• When room temperature is lower
than the set temperature
• When room temperature is higher than the set temperature
• At defrost operation
• When operating continuously at horizontal air flow direction
TEST
C
H
1
BRC1C62
swing
FXCQ, FXFQ
FXHQ
FXAQ
FXCQ, FXFQ
FXHQ
FXAQ
<Automatic>
<Fixed air flow direction>
