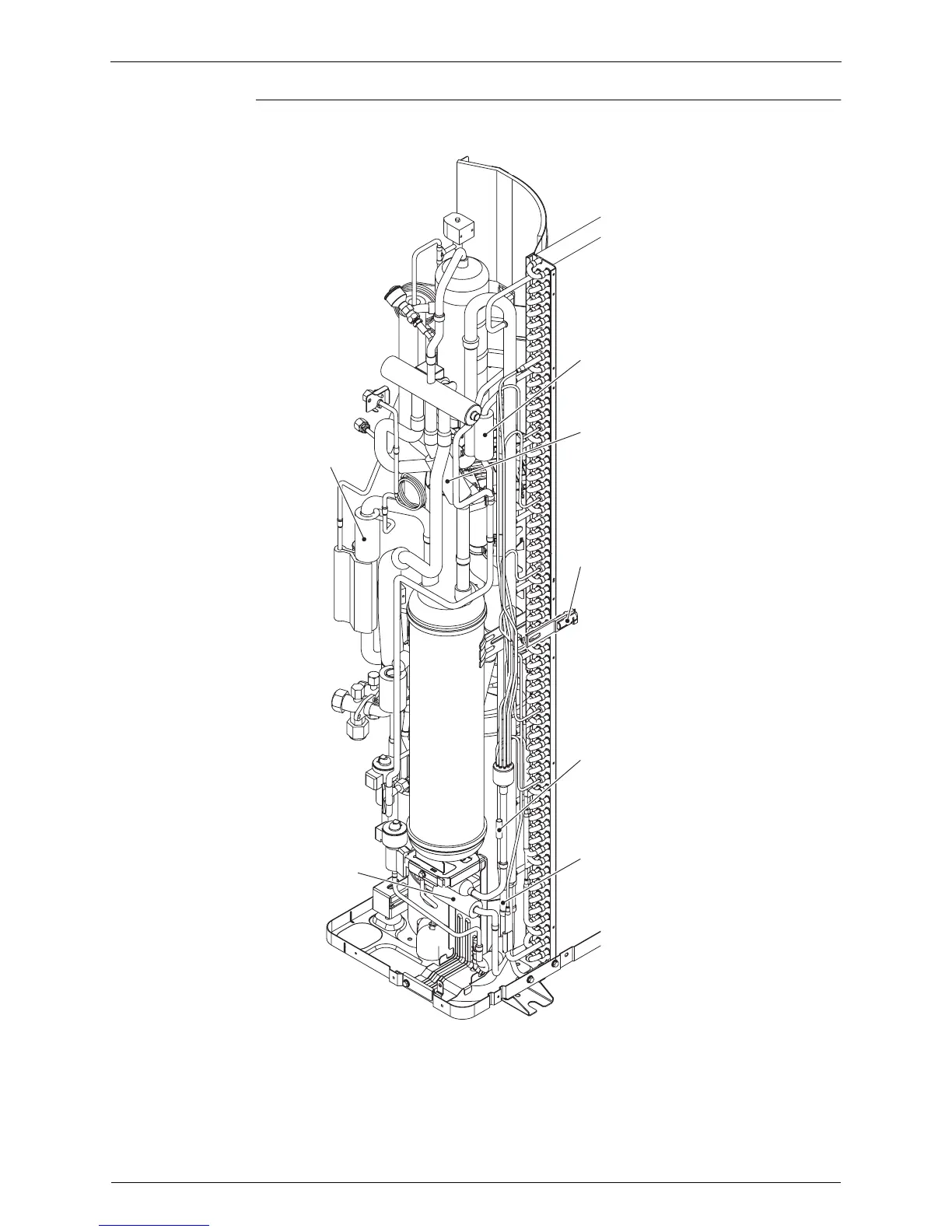

Functional Parts Layout SiBE18-821_C
70 Refrigerant Circuit
Back View
(R13071)
R6T : Thermistor (subcooling heat
exchanger gas pipe)
(Marking : white)
R1T : Thermistor (outdoor
temperature)
(Marking : yellow)
R4T : Thermistor (outdoor heat
exchanger)
(Connector : blue)
R5T : Thermistor (suction pipe 2)
(Marking : green)
R7T : Thermistor (liquid pipe 1)
(Marking : blue)
R8T : Thermistor (liquid pipe 2)
(Connector : white)
R3T : Thermistor (suction pipe 1)
(Marking : red)
