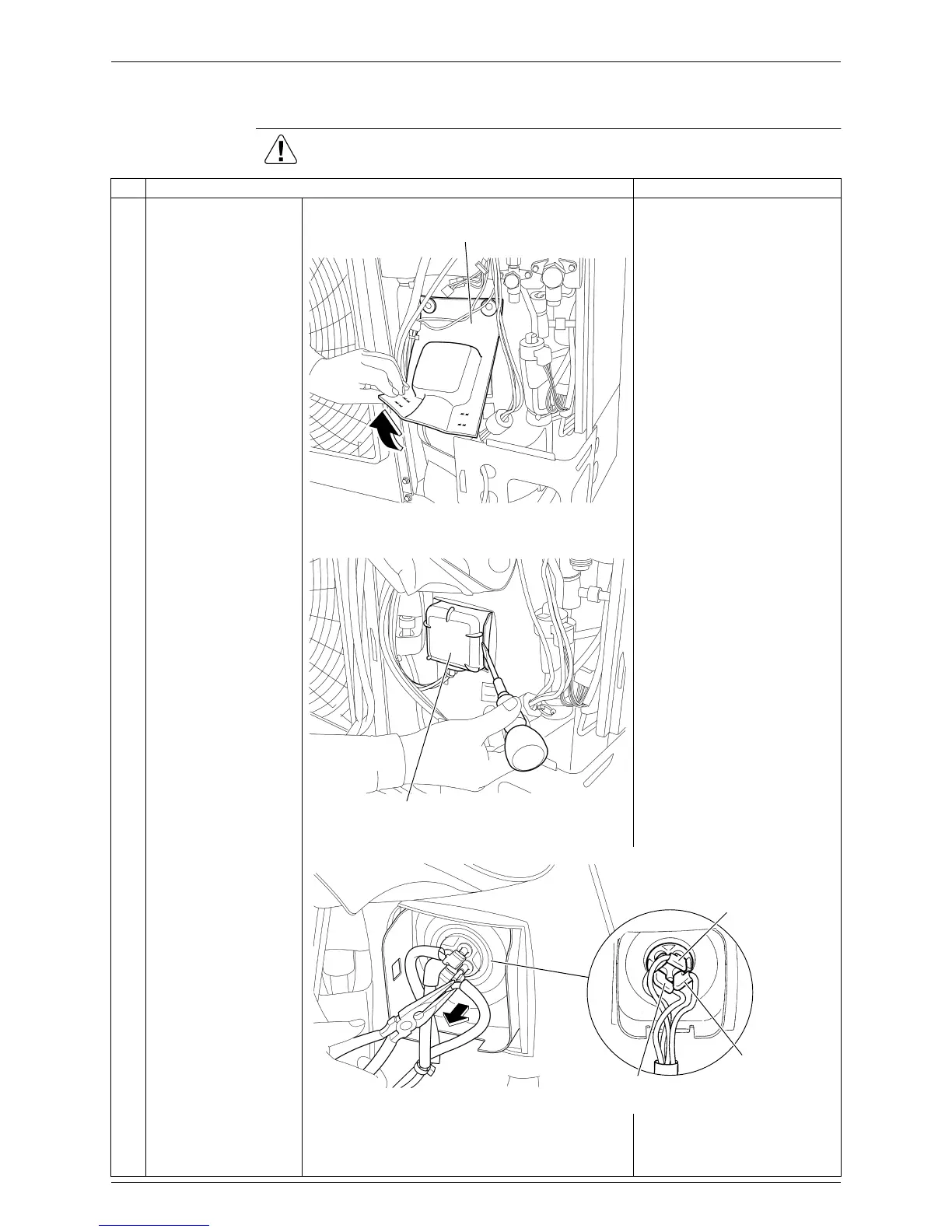

SiBE18-821_C Outdoor Unit
Removal Procedure 451
1.7 Removal of Compressor
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
1
Open upward the sound
insulation for the
terminal cover.
Preparation
Remove the outer panels,
electrical components, and
peripheral equipments.
2
Remove the terminal
cover with a flat
screwdriver.
3
Disconnect the
terminals of the
compressor.
Sound insulation for the terminal cover
(R9264)
Terminal cover
(R9265)
Red: U
White: V
Blue: W
(R12985)
