To start 3-D Airflow
To cancel 3-D Airflow
2. 4. Press either the “SWING button ” or the “SWING button ”.
COMFORT AIRFLOW operation
Notes on flaps and louvers angles
5˚
80˚
15˚
50˚
80˚
30˚
70˚
Upper limit
COMFORT AIRFLOW 5˚
COMFORT AIRFLOW
Lower limit
Stop operation
Upper limit
Lower limit
Upper limit
Lower limit
In HEAT mode
In FAN mode
Stop operation
Stop operation
1. 3. Press the “SWING button ” and the “SWING button ”:
the “ ” and “ ” display will light up and the flap and louvers
will move in turn.
• Check COMFORT AIRFLOW operation in the section of “COMFORT AIRFLOW Operation”
and “INTELLIGENT EYE Operation”.
In DRY mode or
COOL mode
• When “SWING button” is selected, the flaps
swinging range depends on the operation
mode. (See the figure.)

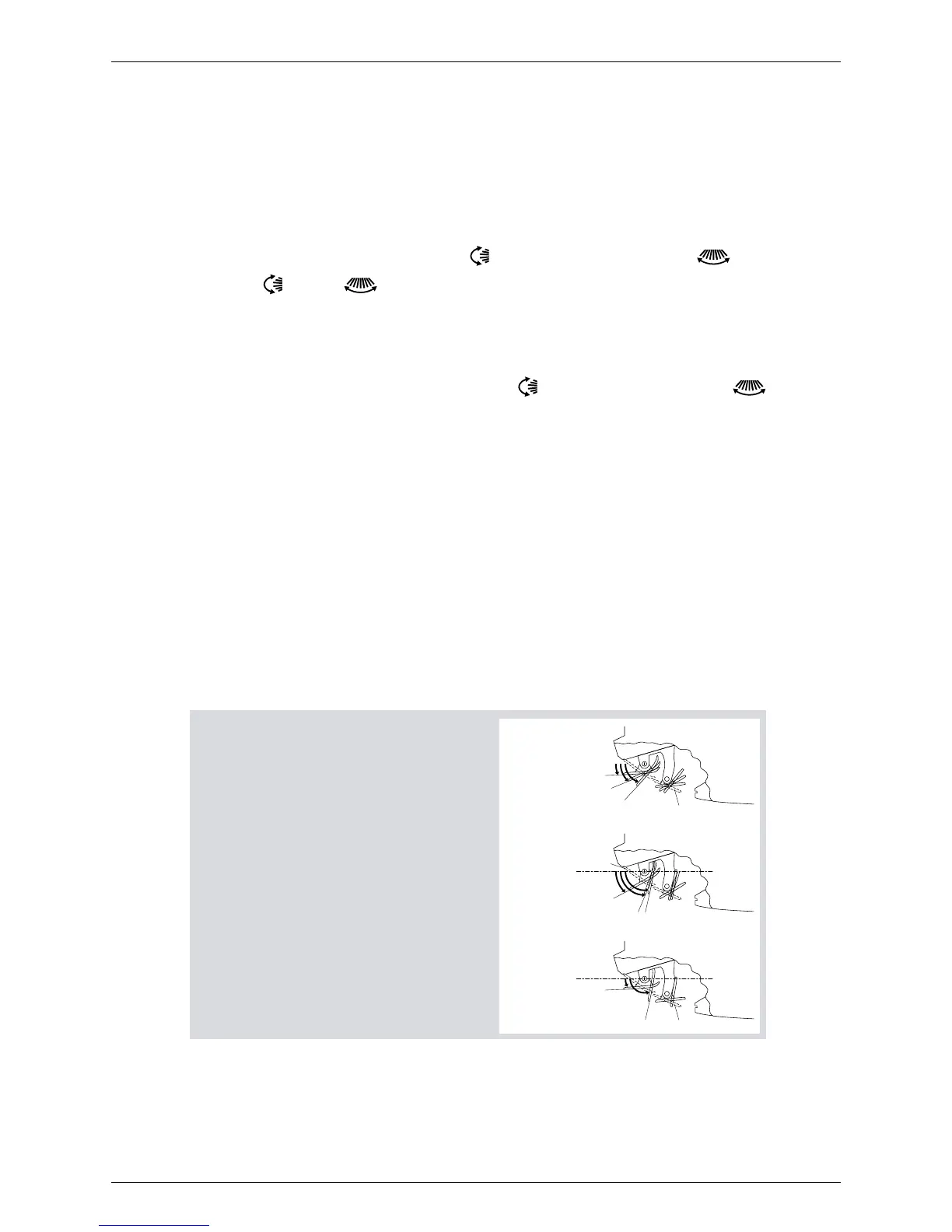

Three-Dimensional (3-D) Airflow
•
Using three-dimensional airflow circulates
cold air, which tends to collected at the bottom
of the room, and hot air, which tends to collect
near the ceiling, throughout the room,
preventing areas of cold and hot developing.
ATTENTION
• Always use a remote controller to adjust the
angles of the flaps and louvers. If you attempt
to move it forcibly with hand when it is
swinging, the mechanism may be broken.
• Always use a remote controller to adjust the
louvers angles. In side the air outlet, a fan is
rotating at a high speed.
