SiBE18-821_C SA Indoor Unit - FFQ, FCQ, FDBQ, FBQ, FHQ Series
Operation Manual 255
Operation manual
3
BRC1D528
Remote controller
4PW23717-1

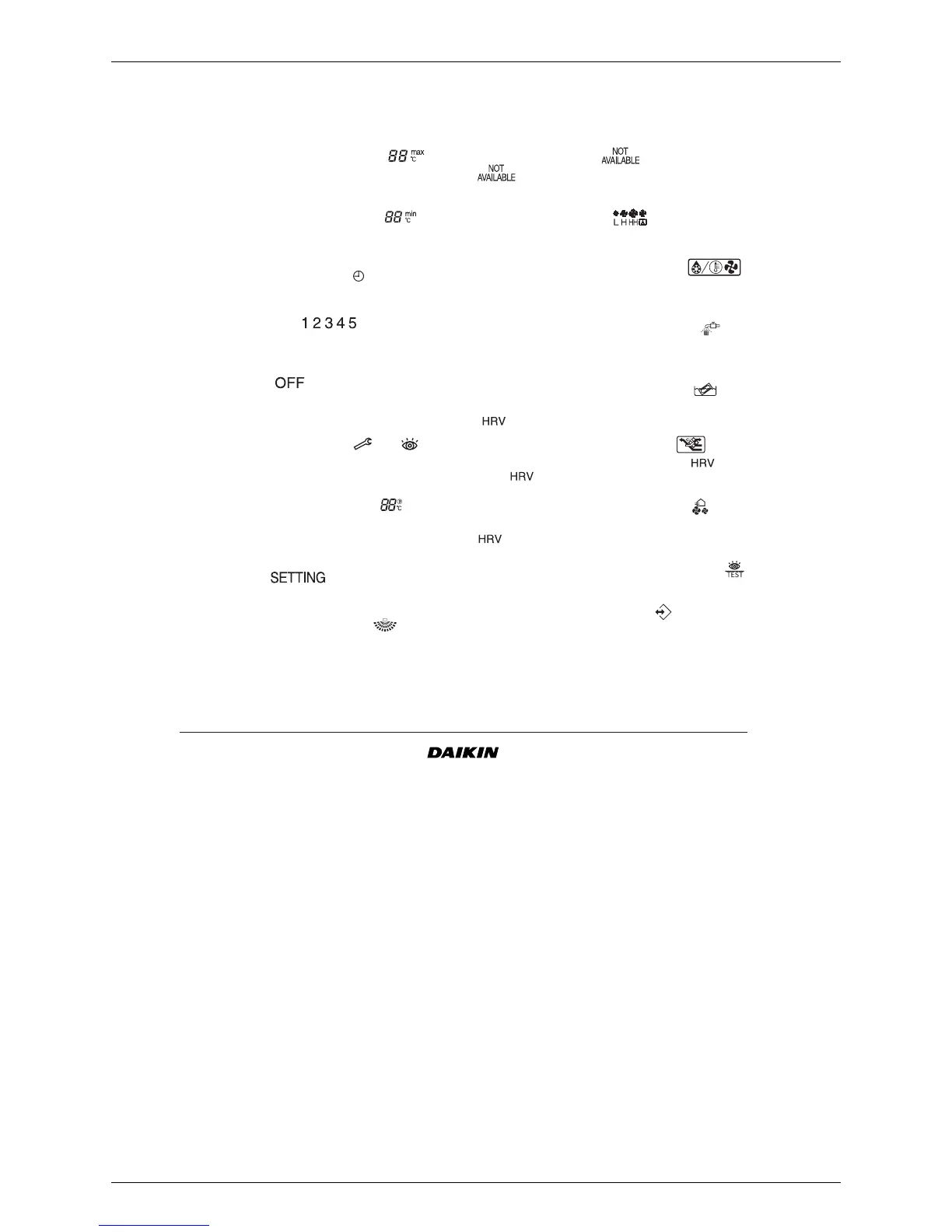

12 MAXTEMPERATURE IMUM SET
The maximum set temperature indicates the
maximum set temperature when in limit operation.
13 MINIMUM SET TEMPERATURE
The minimum set temperature indicates the minimum
set temperature when in limit operation.
14 SCHEDULE TIMER ICON
This icon indicates that the schedule timer is enabled.
15 ACTION ICONS
These icons indicate the actions for each day of the
schedule timer.
16 OFF ICON
This icon indicates that the OFF action is selected
when programming the schedule timer.
17 INSPECTION REQUIRED and
These icons indicate that inspection is required.
Consult your installer.
18 SET TEMPERATURE DISPLAY
This indicates the current set temperature of the
installation (not shown in LIMIT operation or in FAN
or DRY mode).
19 SETTING
Not used, for service purposes only.
20 AIR FLOW DIRECTION ICON
This icon indicates the air flow direction (only for
installations with motorised air flow ßaps).
21 NOT AVAILABLE
is displayed whenever a non-installed option
is addressed or a function is not available.
22 FAN SPEED ICON
This icon indicates the set fan speed.
23
DEFROST/HOTSTART MODE ICON
This icon indicates that the defrost/hotstart mode is
active.
24 AIR FILTER CLEANING TIME ICON
This icon indicates the air filter must be cleaned.
Refer to the manual of the indoor unit.
25 ELEMENT CLEANING TIME ICON
This icon indicates the element must be cleaned
( only).
26 VENTILATION MODE BUTTON
The ventilation mode button operates the ; refer
to the manual for more details.
27 VENTILATION AMOUNT BUTTON
This button sets the ventilation amount; refer to the
manual for more details.
28
INSPECTION/TEST OPERATION BUTTON
Not used, for service purposes only.
29 PROGRAMMING BUTTON
This button is a multi-purpose button.
Depending on the previous manipulations of the user,
the programming button can have various functions.
