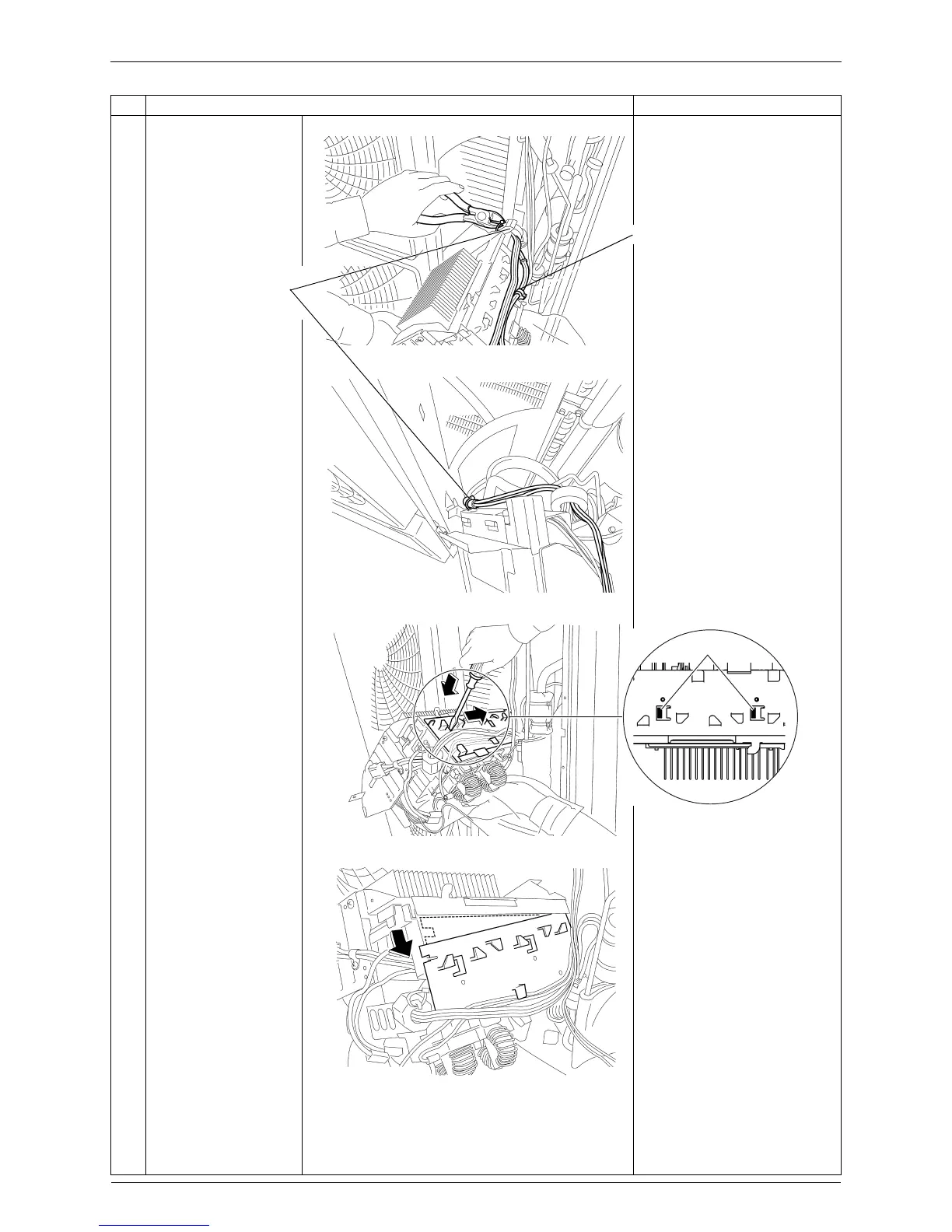

Outdoor Unit SiBE18-821_C
440 Removal Procedure
11 Cut the 2 clamps, for
the compressor lead
wires.
Cut the clamp for the
lead wires from A3P to
A1P (red, blue) and for
the earth (green).
Clamps (2 places) for the
compressor lead wires
Clamp for the lead wires from A3P
to A1P and for the earth
12 Push and unfasten the
2 hooks and slide the
casing to the right and
remove the casing from
the electrical
component assembly.
Step
Procedure Points
(R12969)
(R9233)
(R9234)
(R9235)
Hooks
