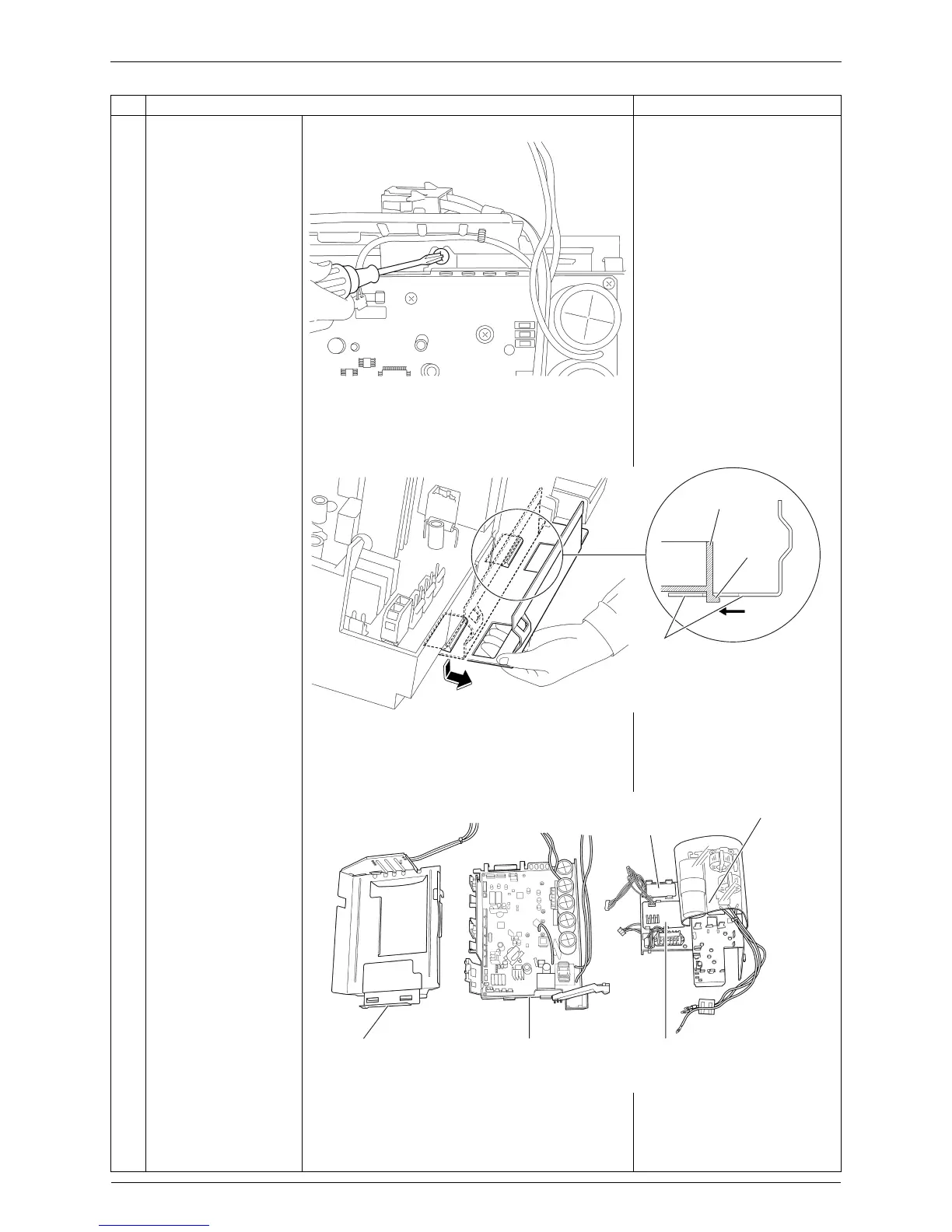

Outdoor Unit SiBE18-821_C
442 Removal Procedure
15 Remove the screw at
the top of the electrical
component assembly.
îš„
M4(2) × 12
16 Unfasten the 2 hooks at
the rear side.
17 The figures in the right
are PCB assembly.
îš„
Refer to page 28, 29 for
detail.
Step
Procedure Points
(R9238)
Hook
(R12972)
Fixing plate for the
PCB
Electrical component
mounting plate
Cool / heat selector
PCB (A4P)
(R12973)
Service PCB
(A2P)
Noise filter PCB
(A3P)
Electrical component
mounting plate
Main PCB (A1P)
(for control)
