SiBE18-821_C Outdoor Unit

Removal Procedure 447

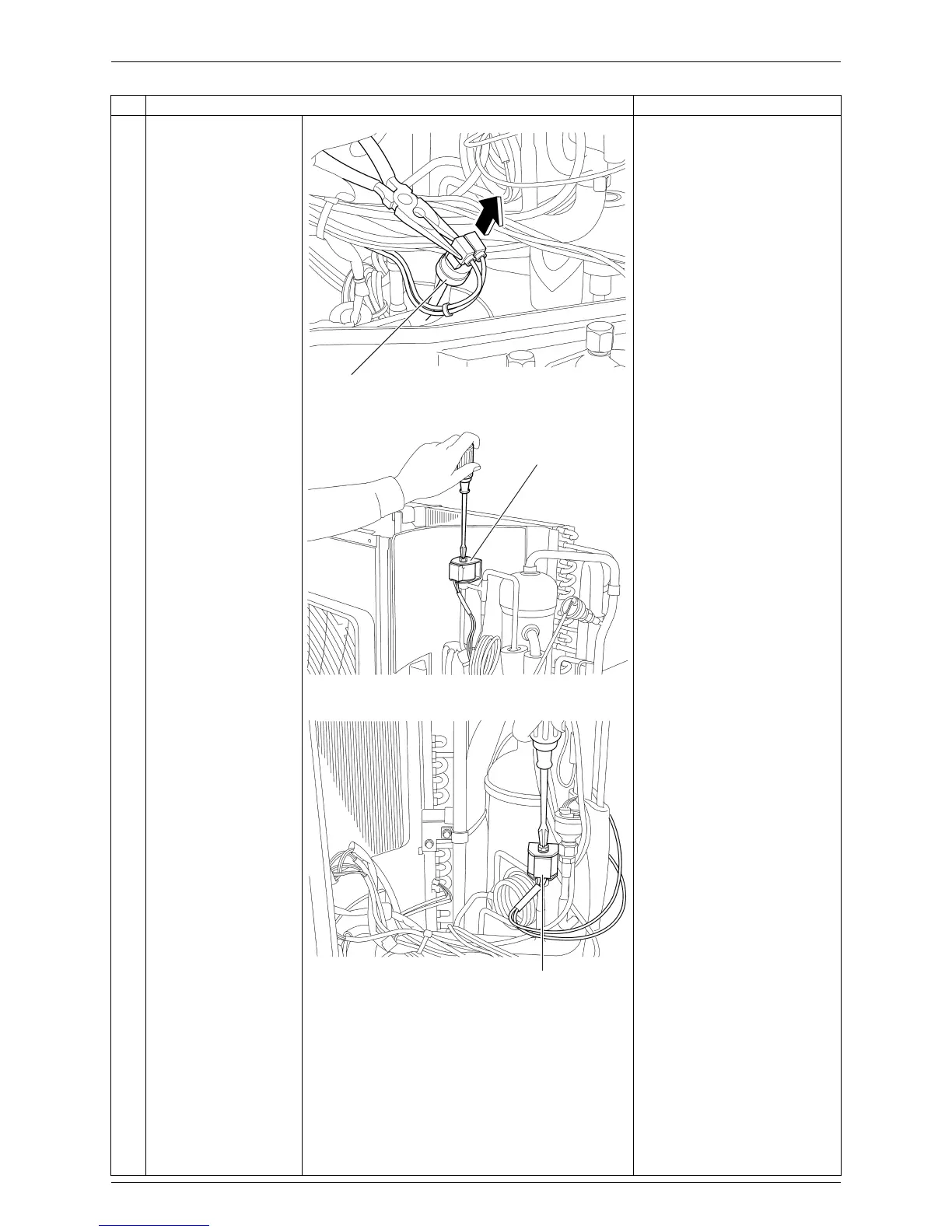

3 Disconnect the lead

wires of the high

pressure switch.

4 Remove the screw and

remove the solenoid

valve coil for hot gas

bypass.

5 Remove the screw and

remove the solenoid

valve coil for unloading.

Step

Procedure Points

High pressure switch (S1PH)

(R12978)

(R12979)

Solenoid valve coil for

hot gas bypass (Y2S)

Solenoid valve coil for unloading (Y3S)

(R12980)
