14 | Unit installation
Installer and user reference guide
44
VAM350~2000J8VEB
Heat reclaim ventilation unit
4P664012-1 – 2021.08

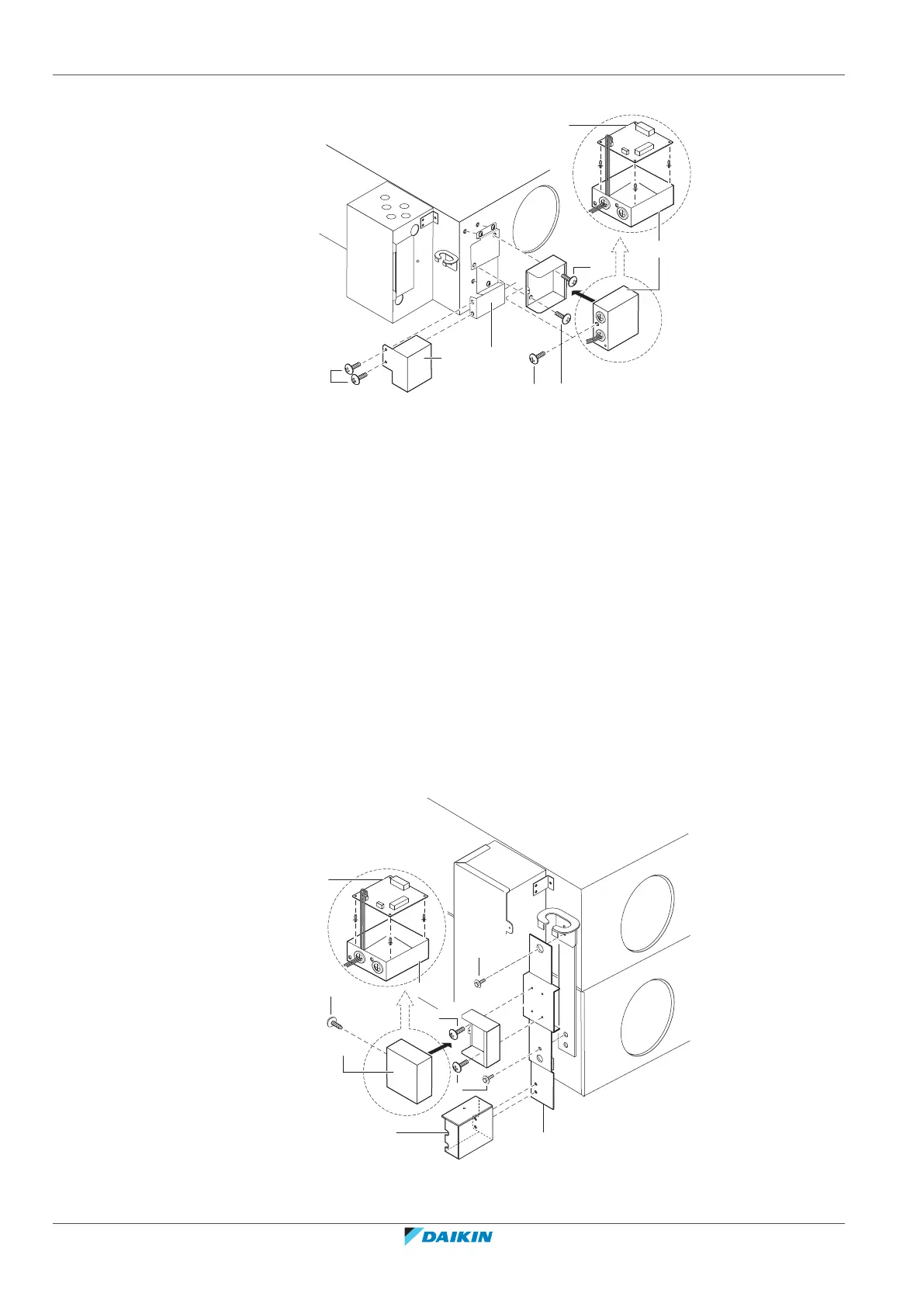

For model 650
a d
c
b
g
f
f
f
a BRP4A50A (optional accessory)
b KRP2A51 (optional accessory)
c KRP1BA101 (installation box)
d EKMP65VAM (mounting plate)
f Screw
g Screw (supplied with the installation box)
1 Remove the screws from the unit.
2 Attach the optional mounting plate (EKMP65VAM) to the unit.
3 Attach the optional adapter PCB (KRP2A51) in the installation box
(KRP1BA101).
4 Follow the installation instructions provided with the option kits (BRP4A50A,
KRP2A51 and KRP1BA101).
5 Guide the PCB wire through the dedicated holes and attach it as instructed in
"15.2Opening the switch box"[454].
6 Attach the options to the optional mounting plate, as shown in the figure.
7 After the wires are connected, fasten the switch box cover.
For models 1500+2000
a
e
f
f
f
g
b
b + c
c
a BRP4A50A (optional accessory)
b KRP2A51 (optional accessory)
