14 | Unit installation
Installer and user reference guide
47
VAM350~2000J8VEB
Heat reclaim ventilation unit
4P664012-1 – 2021.08
Installation tips

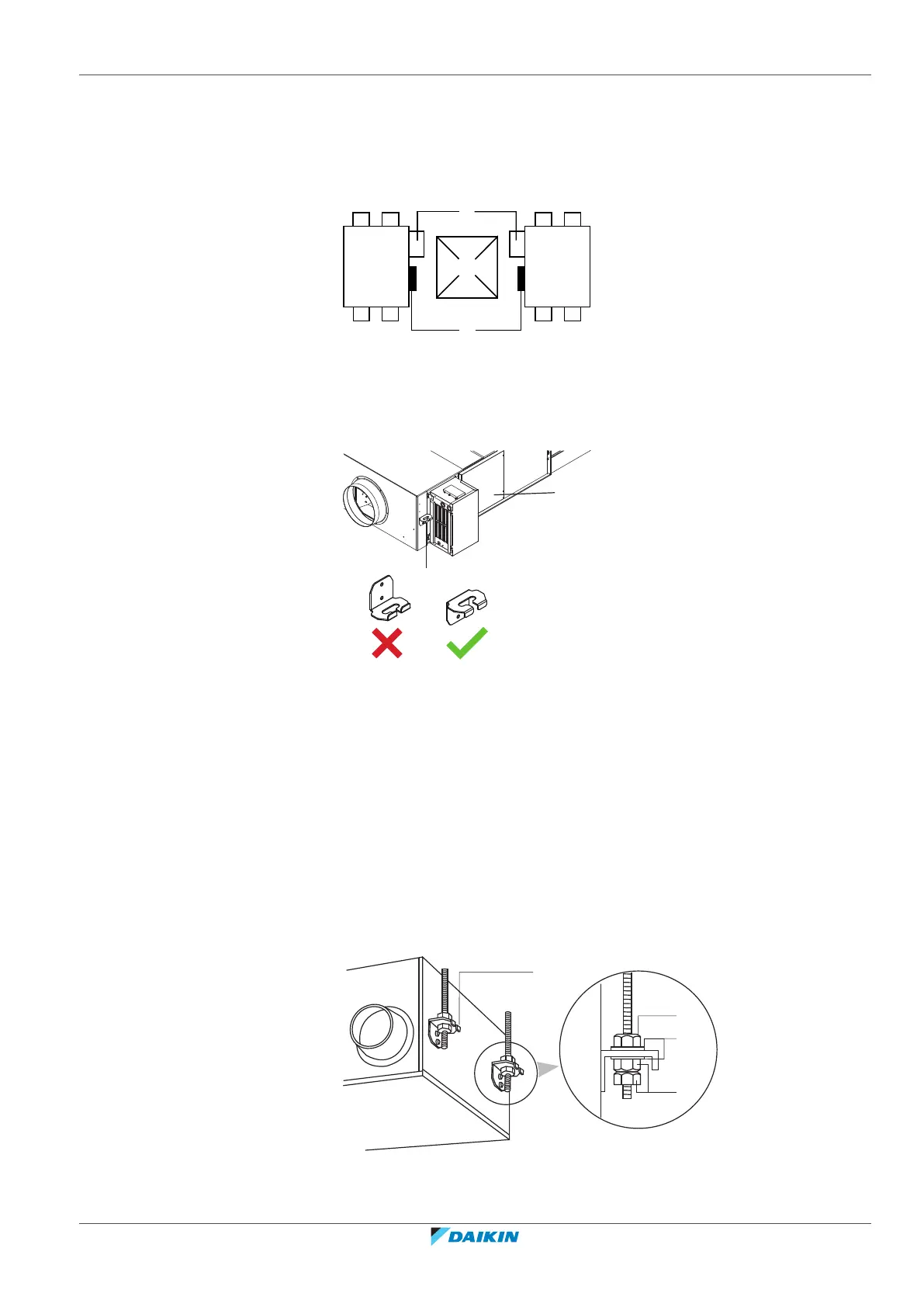

▪ Installing the unit upside down allows for common use of the inspection hole,
thus reducing the required maintenance space. For example, if 2 units are
installed closely together, only 1 inspection hole is required for maintaining or
replacing filters, heat exchange elements,…
a Control box
b Service cover
c Inspection hole
▪ Keep in mind that the ceiling hooks MUST be rotated 180° when the heat reclaim
ventilation unit is installed upside down (see the figure).
a Ceiling hook
b Service cover
14.4 To install the anchor bolts
Prerequisite: Before installing the anchor bolts, remove any foreign objects, such
as vinyl and paper, from the inside of the fan housing.
1 Install the anchor bolts (M10 to M12).
2 Pass the metal suspension brackets over the anchor bolts.
3 Secure the anchor bolts with washer and nut.
For models 350~1000
