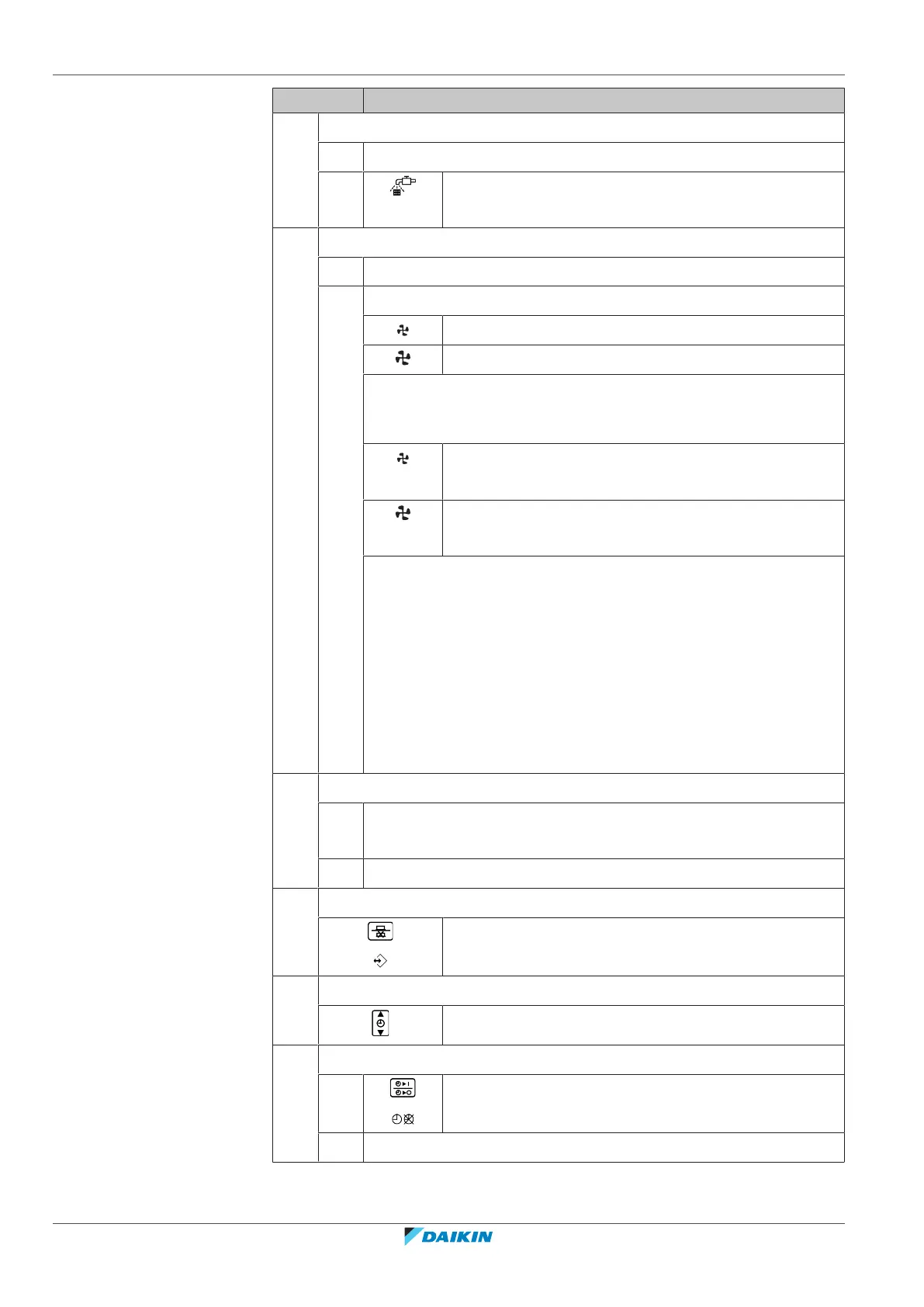

Item Description
c Air filter cleaning
c1 Filter signal reset button
c2 Indication of air filter cleaning.
When you see this symbol, clean the air filter.
d Air flow rate
d1 Air flow rate changeover button
d2 Air flow rate changeover display
Low
High
No FRESH UP (fresh-up) indication: The volume of outdoor air
supplied into the room and that of the room air exhausted outdoors
is equal.
FRESH UP
Low fresh-up
FRESH UP
High fresh-up
If the fresh-up setting is set to "Fresh-up air supply", the volume of
outdoor air supplied into the room is larger than that of room air
exhausted outdoors. This prevents odours and moisture from
kitchens and toilets from flowing into the room. This is the factory
setting.
If the fresh-up setting is set to "Fresh-up air exhaust", the volume of
room air exhausted outdoors is larger than that of outdoor air
supplied into the room. This prevents hospital odours and airborne
micro-organisms from flowing out of the room into the corridors. To
change the fresh-up settings, see "17.2Field settings"[472].
e Inspection
e1 Inspection button
Use this button ONLY when servicing the unit.
e2 Inspection indication
f Programming
Programming button
g Time adjustment
Time adjustment button
h Schedule timer
h1 Schedule timer button
This button enables or disables the schedule timer.
h2 Schedule timer display
