IM 915-13 • VISION - EXTENDED SIZES 34 www.DaikinApplied.com


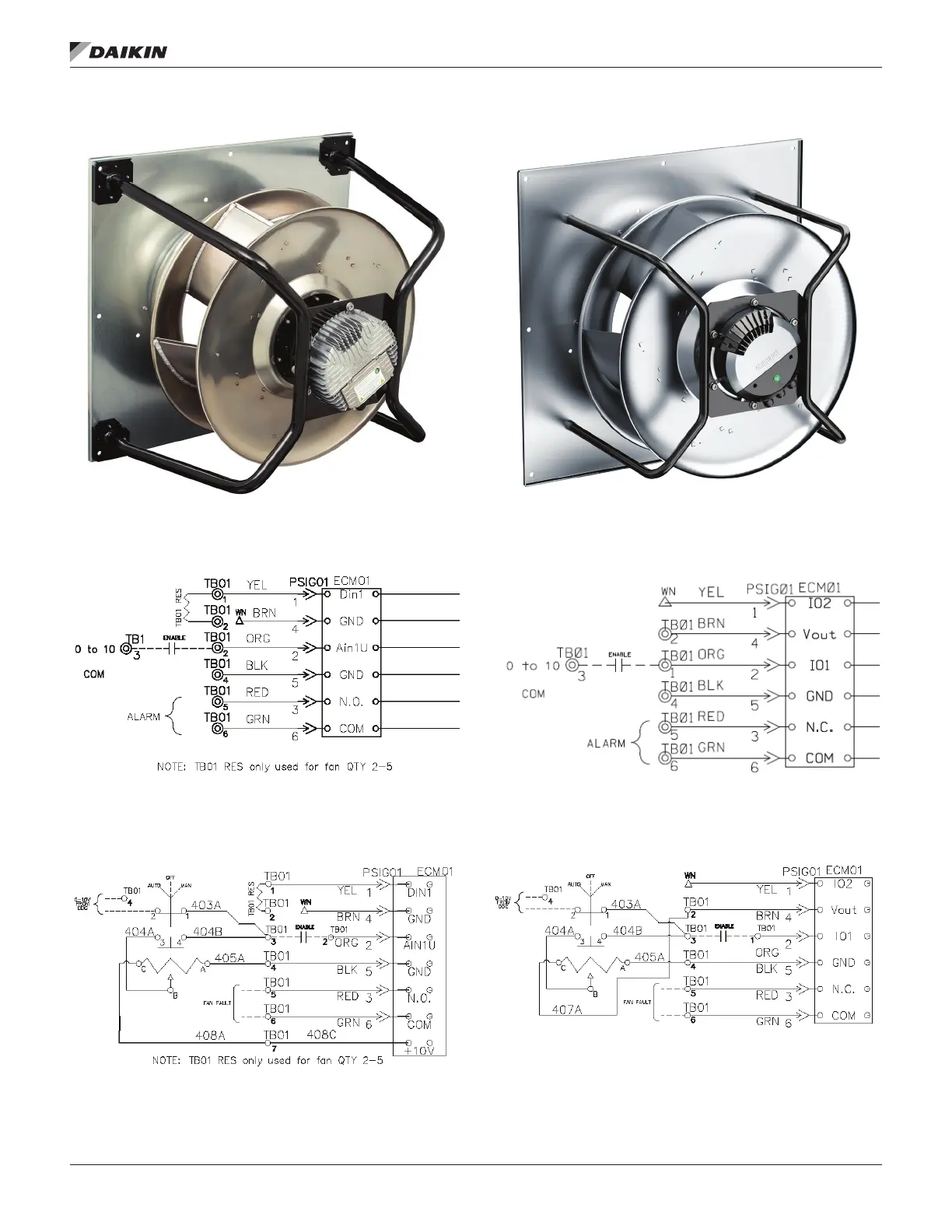

Figure 55: EBM Gen 2 Motor
Figure 56: EBM Gen 2 Motor - Control Wiring with No
Controls
Figure 57: EBM Gen 2 Motor - Control Wiring with Manual/
Auto (Basic) Controls
 For EC Fan DDC controller information and wiring,
reference ED 19123.
Figure 58: EBM Gen 3 Motor
Figure 59: EBM Gen 3 Motor - Control Wiring with No
Controls
Figure 60: EBM Gen 3 Motor - Control Wiring with Manual/
Auto (Basic) Controls
 For EC Fan DDC controller information and wiring,
reference ED 19123.
