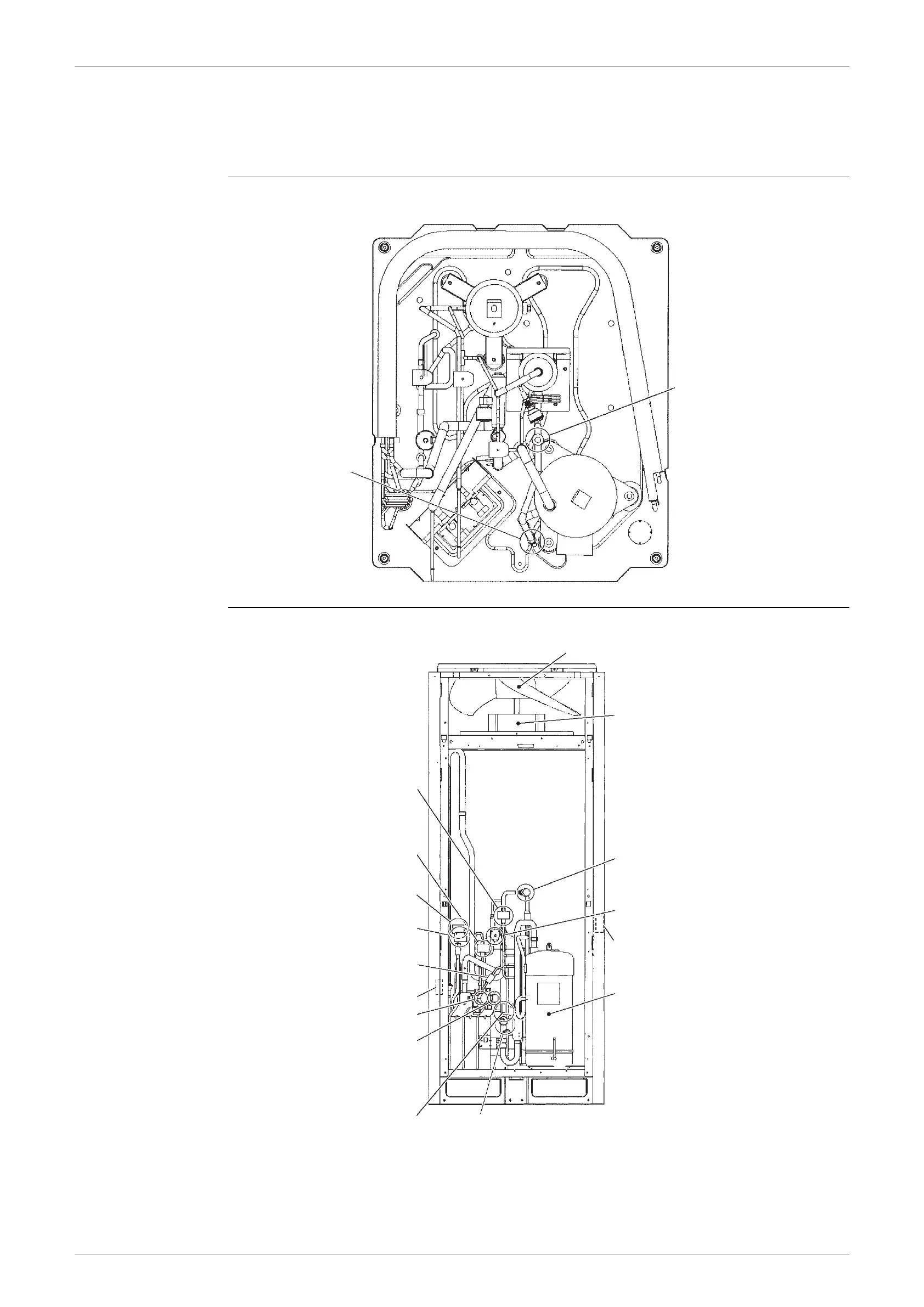

SiE39-404 Functional Parts Layout
Refirgerant Circuit 57
2. Functional Parts Layout
2.1 RXYQ5M
Plan
Front View
Thermistor
(INV discharge pipe)
R3T
High pressur switch
(High pressure protection INV)
S1PH
Solenoid valve
(Receiver gas discharchgin)
Y4S
Solenoid valve (Injection) Y4S
Liquid side stop valve
Gas side stop valve
Thermistor
(heat exchanger cleicen)
R4T
Thermistor
(suction pipe)
R2T
Pressure sensor
(High pressure)
S1NPH
Fan motor
Fan
4 way valve
Y3S
Compressor (INV)
M1C
Thermistor
(Outdoor air)
R1T
Pressure sensor
(Low pressure)
S
1NPL
Thermi
stor
(subcooling heat
exchanger outlet)
R5T
Electronic expansion valve
Y1E
Solenoid valve
(Hot gas bypass)
Y1S
